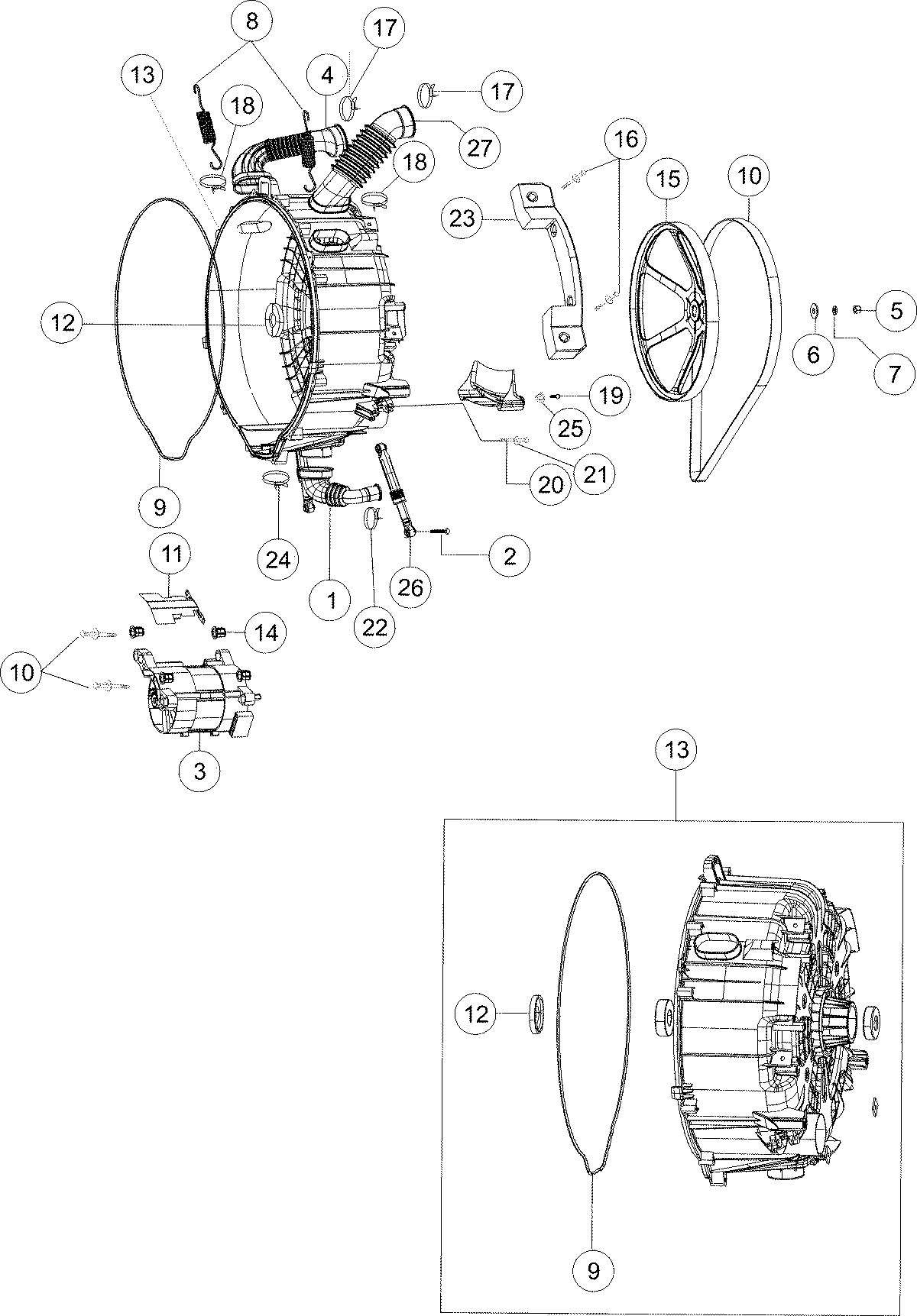

| 1 | WP34001294 Whirlpool Drain Hose |
| 3 | MOTOR - DRUM |
| 4 | HOSE-O.F. (1) |
| 5 | NUT-HEX |
| 6 | WASHER-PLAIN |
| 7 | WASHER-SPRING |
| 8 | SPRING-HANGER |
| 9 | PACKING-TUB |
| 10 | BELT-TIMING GEAR |
| 11 | COVER-MOTOR |
| 12 | MAY 34001463 |
| 12 | SEAL-OIL |
| 13 | WP34001439 Whirlpool Drum Bearing |
| 13 | MAY 34001458 |
| 14 | BUSHING-MOTOR |
| 15 | MAY 34001412 |
| 16 | Foot-Dryer |
| 18 | BAND-RING |
| 19 | WP98008545 Whirlpool Screw |
| 21 | WASHER-PLAIN |
| 22 | WP596669 Whirlpool Hose Clamp |
| 23 | WEIGHT-BALANCER |
| 24 | HOSE CLAMP |
| 25 | CABLE CLAMP |
| 26 | WP34001292 Whirlpool Damper Assembly |
| 27 | HOSE-O.F. |
