MAH7550AAW 05 – DOOR & FRONT PANEL

MAH7550AAW 05 – DOOR & FRONT PANEL

Written by

in

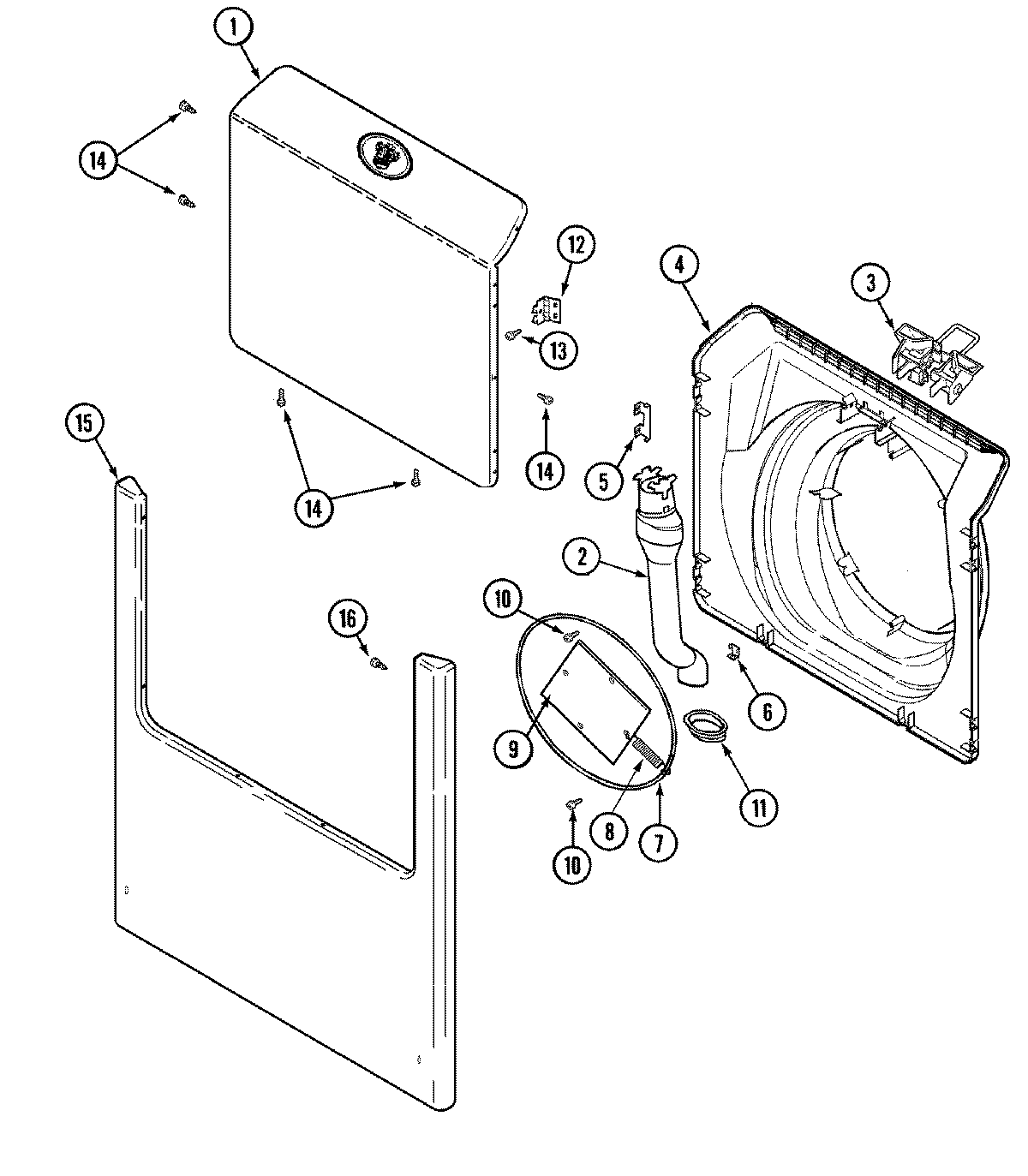

MAH7550AAW 05 – DOOR & FRONT PANEL

Products

PositionProduct
1MAY 22003242
2MAY 22003850
3WP22003269 Whirlpool Door Lock Assembly
4WP22003275 Whirlpool Inner Door Panel
4MAY 22002443
5MAY 22002038
6MAY 22002039
7WIREFRAME
8MAY 22002356
9MAY 22002094
10SCREW
11WP22003075 Whirlpool Grommet
12WP22002798 Whirlpool Door Hinge
12WP33001764 Whirlpool Cover
13WP98006631 Whirlpool Screw
14MAY 22002063
15MAY 22003512
15MAY 22002241
15MAY 22002239
15W11573574 Whirlpool Screw
16WP22002012 Whirlpool Screw Assembly
17MAY 22002244
