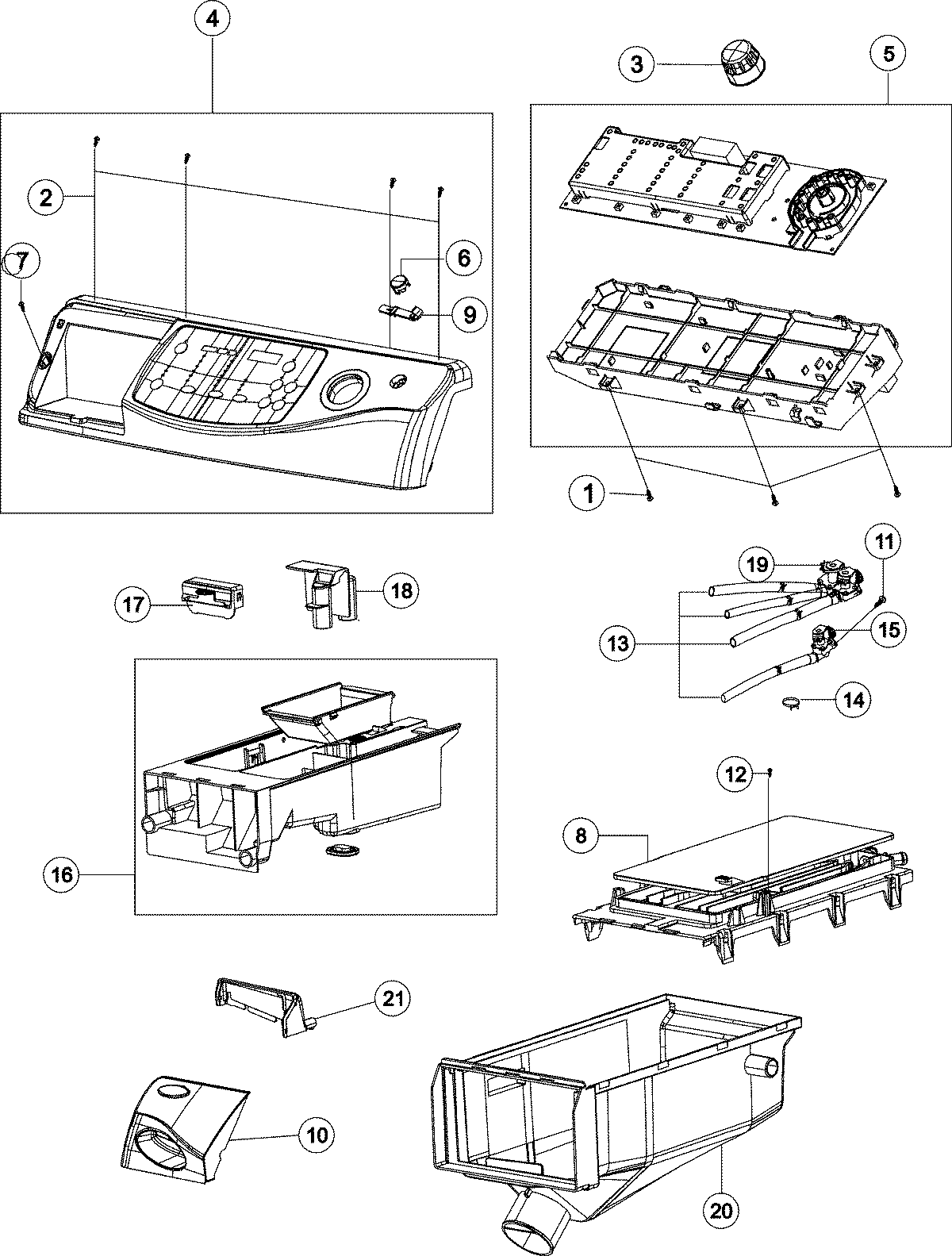

MAH8700AWM 02 – CONTROL PANEL, DISPENSER

MAH8700AWM 02 – CONTROL PANEL, DISPENSER

Written by

in

MAH8700AWM 02 – CONTROL PANEL, DISPENSER

Products

PositionProduct
1SCREW-TAPPING
3MAY 34001387
4MAY 34001403
5MAY 34001398
5MAY 34001404
5MAY 34001472
5MAY 34001478
5MAY 34001483
5WP34001484 Whirlpool Electronic Control Board
5HARNESS, WIRE DNO
5MAY 34001498
6MAY 34001385
7Screw-Tapping (4)
8WP34001284 Whirlpool Housing
9MAY 34001279
10MAY 34001383
11SCREW-TAPTITE
12WP98008545 Whirlpool Screw
13MAY 34001249
14CLAMP-HOSE
15WP34001131 Whirlpool Water Inlet Valve
16ASSY-S. BODY DRAWER
17GUIDE-LIQUID
18MAY 34001240
20WP34001245 Whirlpool Housing Drawer
21MAY 34001384
