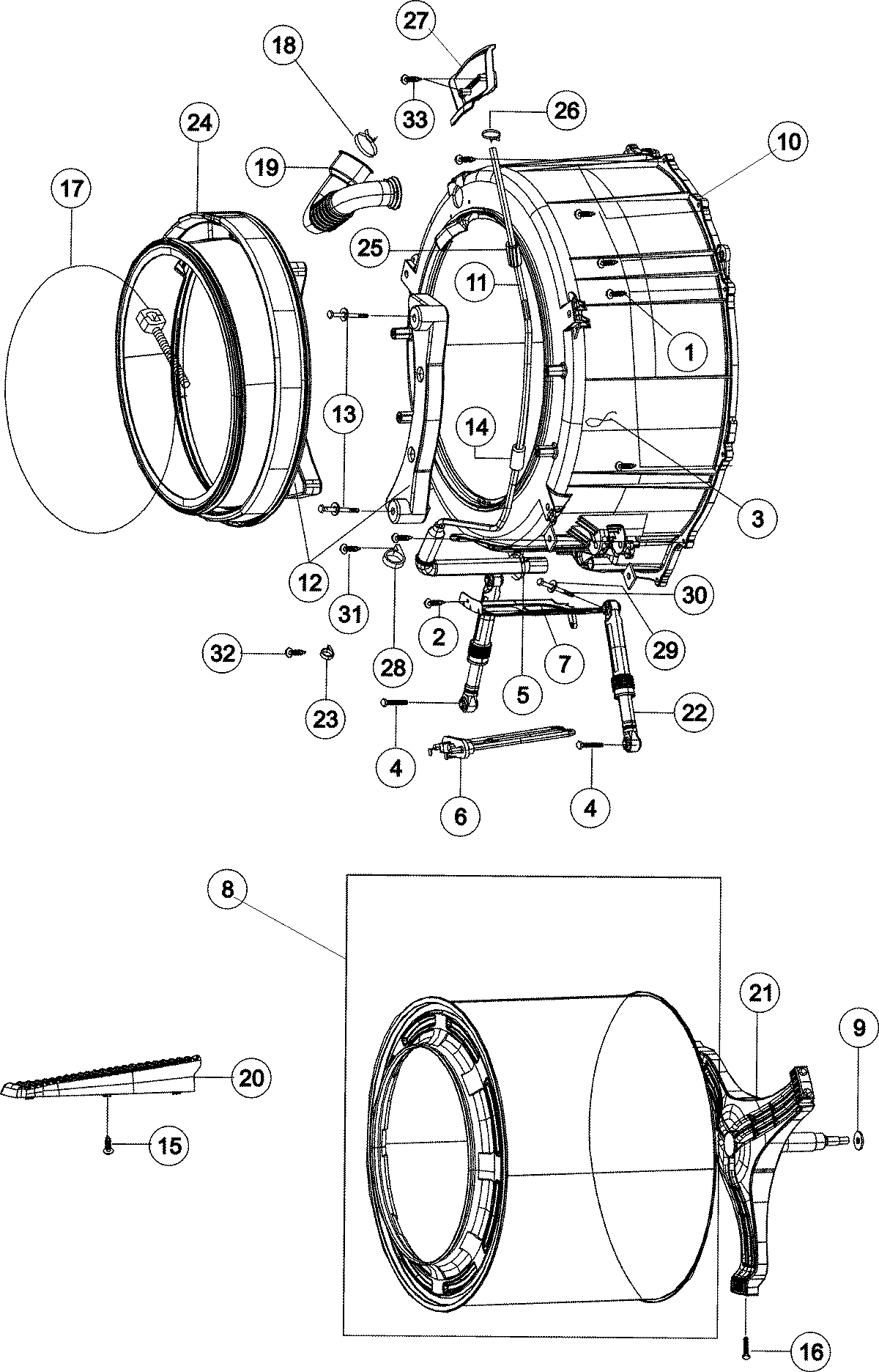

MAH8700AWM 05 – TUB – FRONT

Products

Position	Product
1	SCREW-TAPPING
3	WIRE TIE – VINYL
5	CLAMPER HOSE
6	12002809 Whirlpool Heater Kit
7	MAY 34001314
8	MAY 34001461
8	MAY 34001312
9	WASHER-WAVE
10	MAY 34001309
12	WEIGHT-BALANCER (F)
13	Foot-Dryer
14	SPONGE-HARNESS
16	BOLT-FLANGE
17	ASSY-CLAMP DIAPHGRAM
18	BAND-RING
20	MAY 34001287
21	ASSY-FRAME SHAFT
22	WP34001303 Whirlpool Damper Assembly
23	MAY 34001291
24	34001302 Whirlpool Washer Door Diaphragm
25	SPONGE-HOSE AIR
26	SPRING-CLAMP
27	GUIDE-WATER
28	CLAMPER HOSE
29	WASHER-PLAIN
32	WP98008545 Whirlpool Screw
33	SCREW-TAPPING
