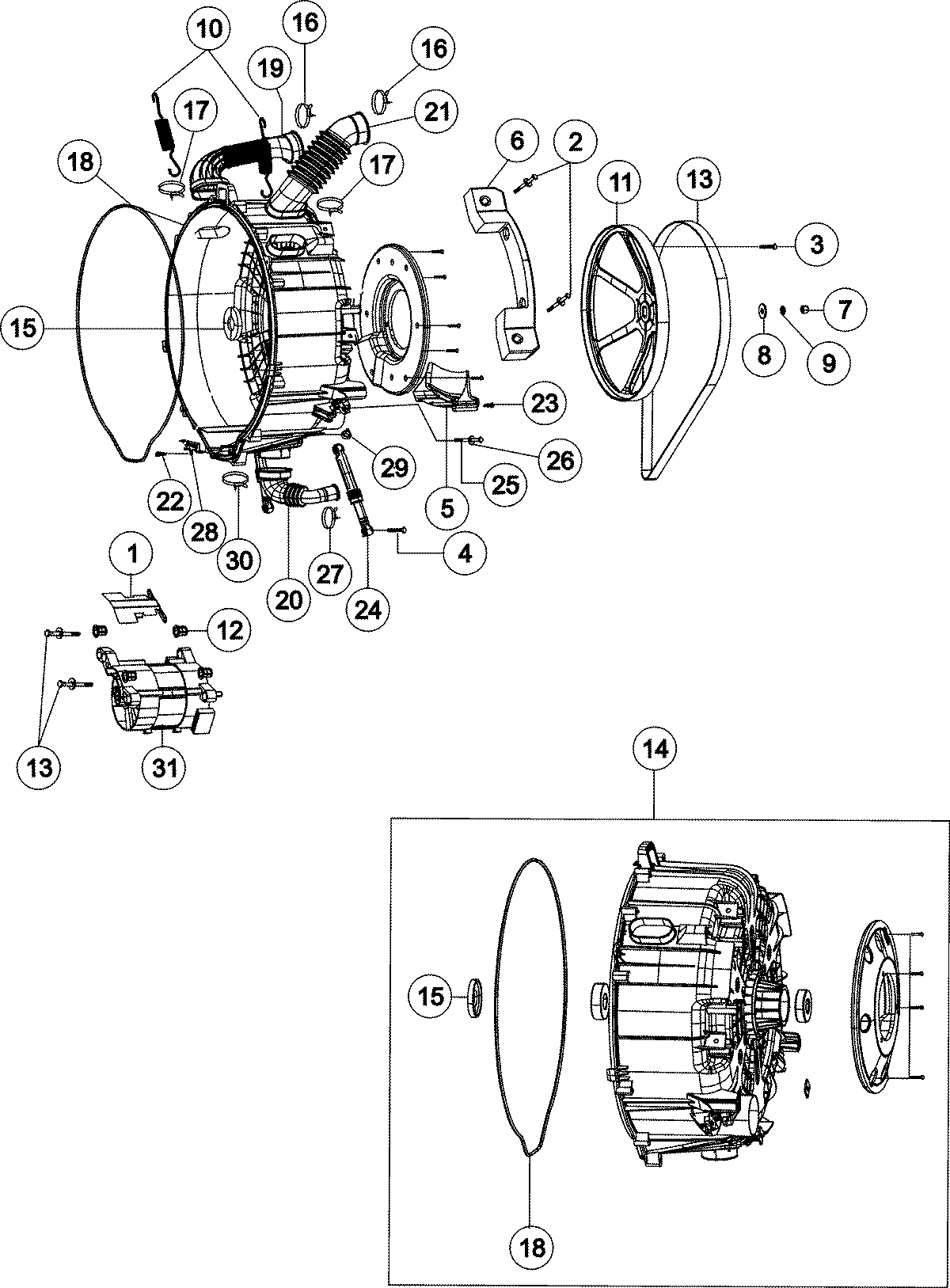

MAH8700AWM 06 – TUB BACK

Products

Position	Product
1	COVER-MOTOR
3	MAY 34001268
5	MAY 34001414
6	WEIGHT-BALANCER
7	NUT-HEX
8	WASHER-PLAIN
9	WASHER-SPRING
10	SPRING-HANGER
11	MAY 34001412
12	BUSHING-MOTOR
13	BELT-TIMING GEAR
13	Foot-Dryer
14	WP34001439 Whirlpool Drum Bearing
14	MAY 34001458
15	MAY 34001462
15	SEAL-OIL
16	BAND-RING
17	BAND-RING
18	PACKING-TUB
20	WP34001294 Whirlpool Drain Hose
21	HOSE-O.F.
22	SCREW-TAPPING
23	WP98008545 Whirlpool Screw
24	WP34001292 Whirlpool Damper Assembly
26	WASHER-PLAIN
27	WP596669 Whirlpool Hose Clamp
28	MAY 34001290
29	MAY 34001291
30	HOSE CLAMP
31	MAY 34001405
