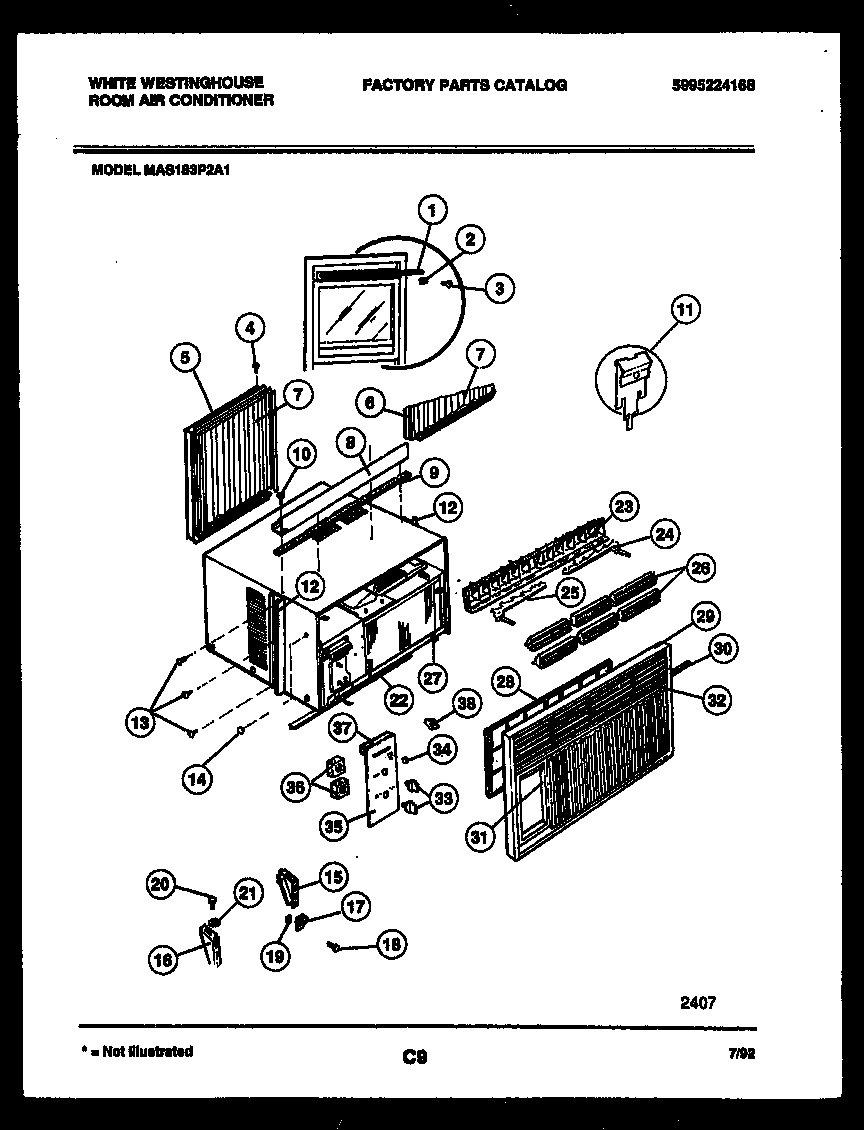

MAS183P2A1 02 – CABINET PARTS

Products

PositionProduct
*65278WCI 5303925110
1WCI 5303002608
2BRACKET
3SCREW-WOOD
4WCI 3002801
5WCI 3202495
6WCI 3202497
7ACCORDIAN (2)
8ANGLE – TOP WINDOW
9WCI 3001980
11WCI 5303001844
12WCI 3202498
13WCI 08012680
14SCREW
15SUPPORT-RH
16SUPPORT-LH
17BRACKET – SUPPORT
18SCREW – SILL SUPT
19NUT – BRACKET
20SCREW – SUPPORT, 4
21316205500 Frigidaire Oven Nut
22SEAL-BOTTOM
23WCI 5303002459
24LINK-VERT LOUVER RH
25LINK-VERT LOUVER LH
26WCI 5303286363
27CLIP-FRONT TO BASE
28WCI 5303014139
29WCI 5303289378
30WCI 5303018576
31SEAL-EVAP OUTLET
32WCI 5303289380
33WCI 5300331902
34WCI 5303002189
35WCI 5303289379
36WCI 5303001775
37WCI 5303001984
38INSERT
