MAT10CSAGW 02 – CONTROL CENTER

MAT10CSAGW 02 – CONTROL CENTER

Written by

in

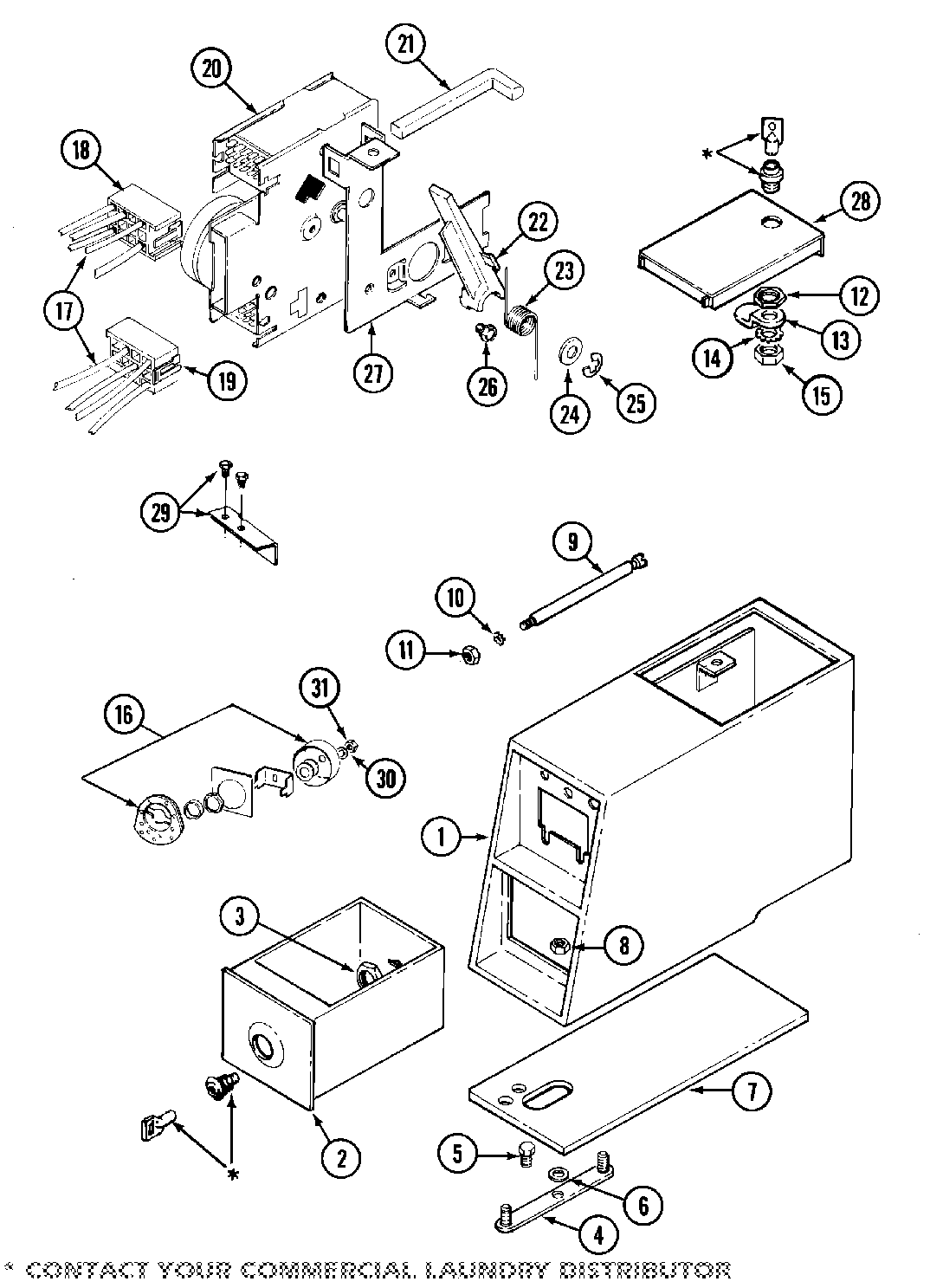

MAT10CSAGW 02 – CONTROL CENTER

Products

PositionProduct
001CASE, COIN METER (WHT)
001MAY 206952L
002MAY 207913
005WP90767 Whirlpool Screw
006MAY 910309
007MAY 214660
008WP62739 Whirlpool Nut
009MAY 215559
010MAY 910387
011Y052721 Whirlpool Nut
012W11395752 Whirlpool Nut
013W11165684 Whirlpool Cam
016LOCKWASHER, DOUBLE “D“
017MAY 22001093
017MAY 22002223
017MAY 22001088
018MAY 22001349
019MAY 22001350
019DOWEL PIN FOR HANDLE
020WP22001083 Whirlpool Timer
020MAY 22001086
021MAY 214666
022PIVOT ARM, TIMER
023MAY 214663
024MAY 214664
025MAY Y312270
026MAY 216042
027MAY 22001043
027MAY 212276
028MAY 204216L
028MAY 204216
029MAY 207156
029MAY 22001179
030LOCKWASHER, LOCK CAM
031MAY 22001355
