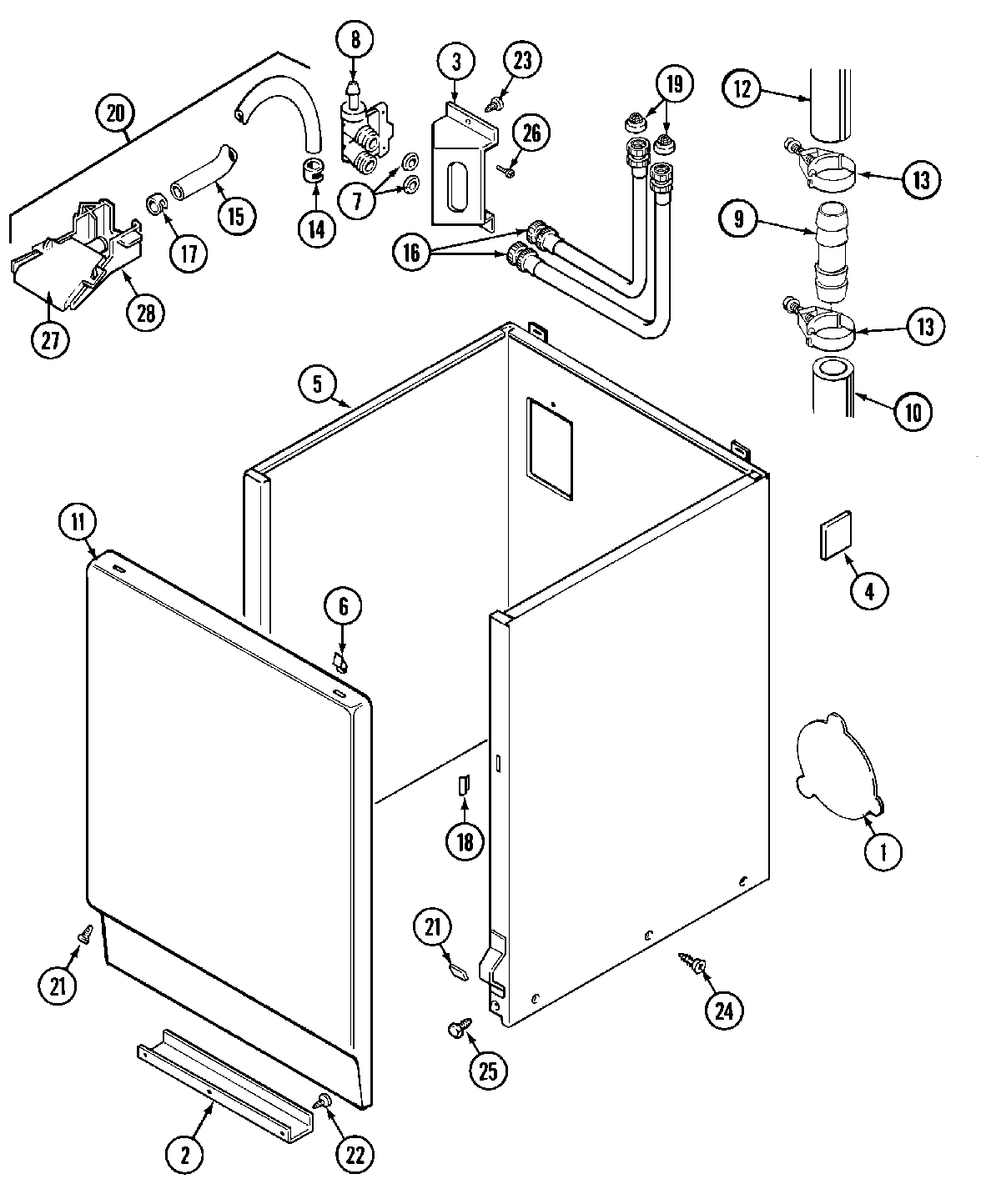

MAT10CSEGL 04 – CABINET

MAT10CSEGL 04 – CABINET

Written by

in

MAT10CSEGL 04 – CABINET

Products

PositionProduct
001MAY 212985
002MAY 213846
003MAY 214812
004MAY 215058
005DOWEL PIN FOR HANDLE
006MAY 212982
007MAY Y013783
008WP22001196 Whirlpool Valve Water
008MAY 22001605
008WP489503 Whirlpool Refrigerator Clamp
008WP96160 Whirlpool Washer Inlet Valve Screen
009WP16272 Whirlpool Hose Coupling
010MAY 214768
011MAY 216078L
011MAY 216078
012MAY 215057
013MAY 200461
014WP596669 Whirlpool Hose Clamp
015MAY 22001608
015MAY 22001900
015MAY 22001190
016MAY 208100
017MAY 216170
018MAY 214376
019MAY 200961
020WP22001304 Whirlpool Injector Assembly
021SCREW & FSTNER ASSY (FT. PNL)
022WP90767 Whirlpool Screw
023MAY 212276
024213007 Whirlpool Screw #12
025WPW10346892 Whirlpool Screw
025WP27001200 Whirlpool Screw
026MAY Y313561
027MAY 22001187
028WP22001186 Whirlpool Injector
