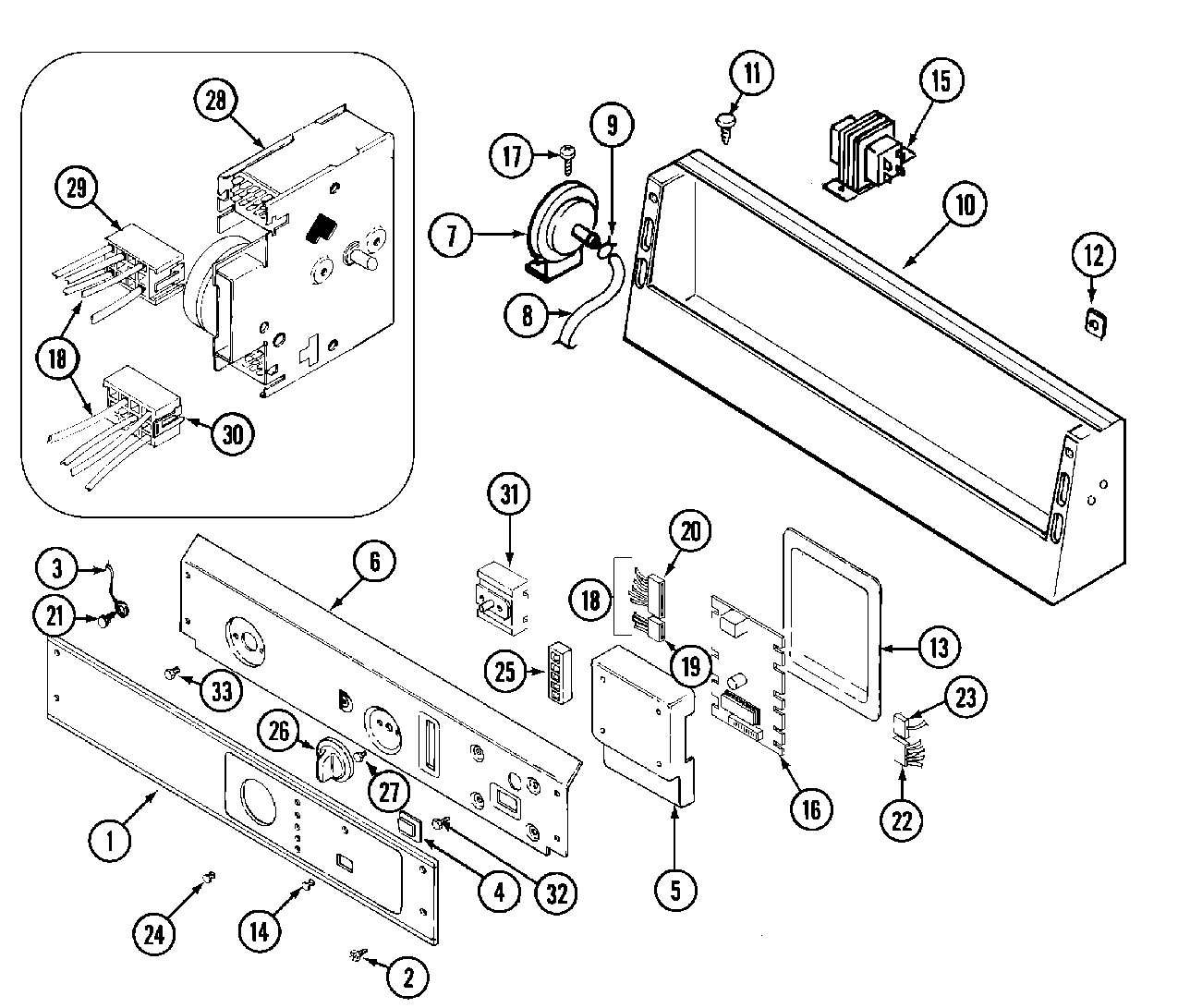

MAT10DAABW 01 – CONTROL PANEL

Products

Position	Product
002	WPW10131119 Whirlpool Screw
003	MAY 205810
007	WP22001308 Whirlpool Water Switch
008	MAY 212942
009	WP596669 Whirlpool Hose Clamp
010	MAY 206780L
010	CONTROL COVER ASSY
011	MAY 212276
012	MAY 215003
017	WP90767 Whirlpool Screw
019	MAY 314529
021	MAY 210186
022	MAY 206799
023	MAY 22001361
023	HARNESS, WIRE (SWITCHES) SENSOR SWITCHES TO CIRCUIT BRD
024	WP215564 Whirlpool Indicator Lens
026	MAY 215561
026	MAY 206894
027	WP488234 Whirlpool Air Conditioner Screw
028	WP22001083 Whirlpool Timer
029	MAY 22001349
030	DOWEL PIN FOR HANDLE
030	MAY 22001350
031	SWITCH, TEMP.
032	MAY 312956
033	MAY 216412
