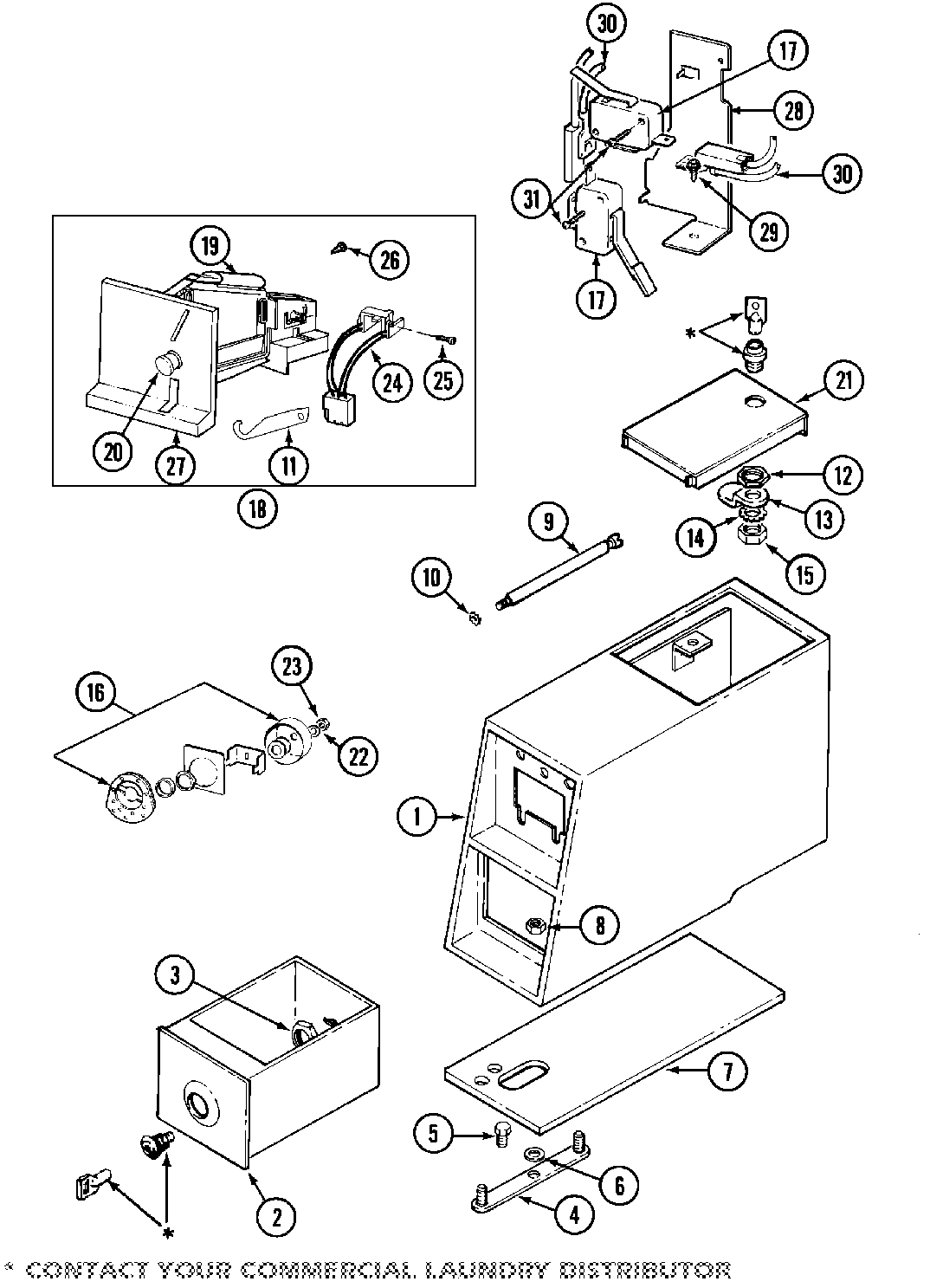

MAT10PDAAW 01 – CONTROL CENTER

Products

PositionProduct
001MAY 207940
001(ALM)
002BOX, COIN (WHT)
002(ALM)
005WP90767 Whirlpool Screw
006MAY 910309
007MAY 214660
008WP62739 Whirlpool Nut
009MAY 213035
010MAY 910181
011MAY 216200
012W11395752 Whirlpool Nut
013W11165684 Whirlpool Cam
017WPW10447152 Whirlpool VLT Switch
018MAY 207948
019COIN REJECTOR (.25 CENTS)
019MAY 207949
020MAY 216009
021MAY 204216L
021MAY 204216
022LOCKWASHER, LOCK CAM
023MAY 22001355
024MAY 206799
025WP3395530 Whirlpool Screw
026MAY 216068
027MTG. PLATE, SINGLE
029DOWEL PIN FOR HANDLE
030HARNESS, WIRE (SWITCHES) SENSOR SWITCHES TO CIRCUIT BRD
031MAY 912012
