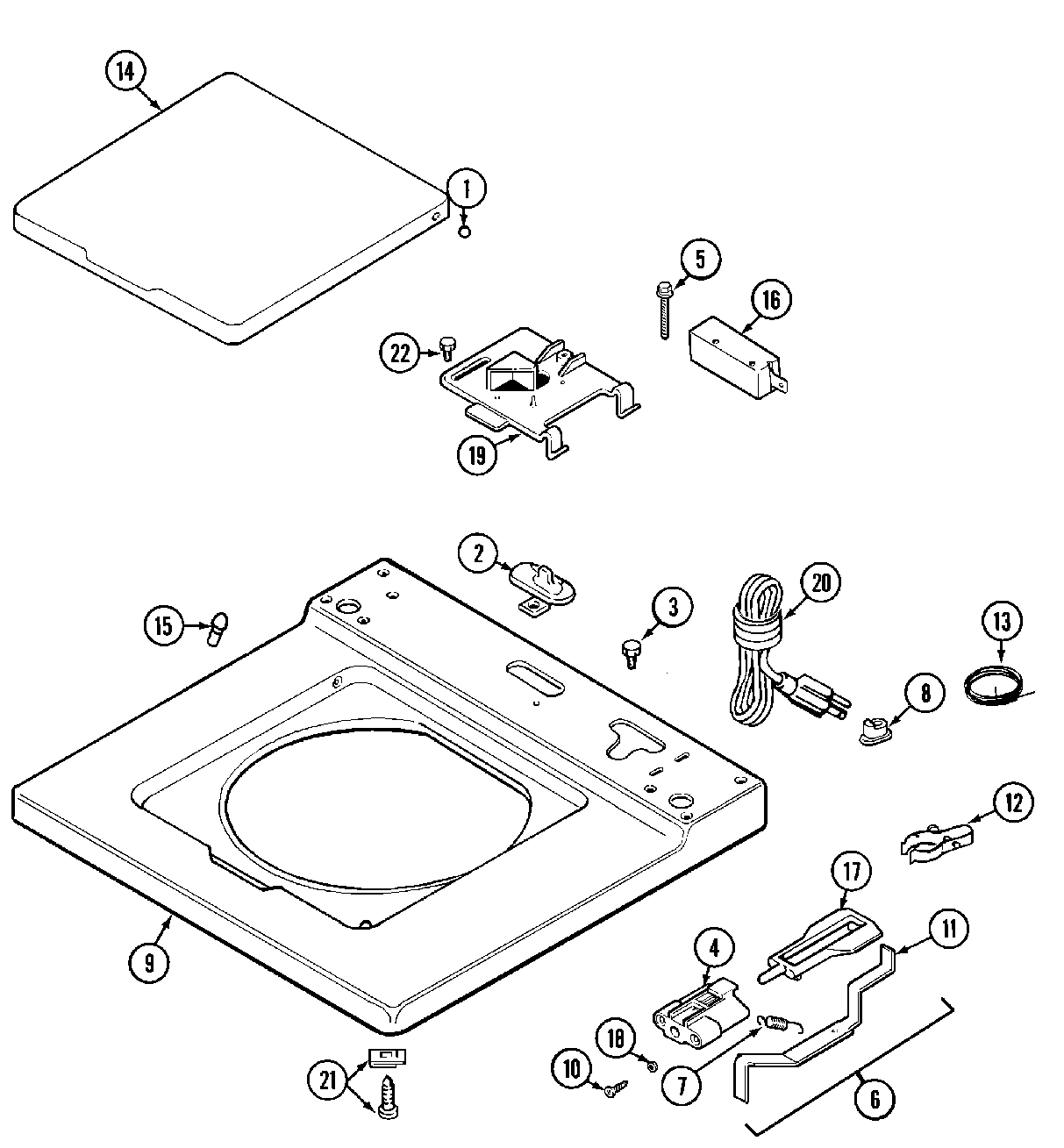

MAT10PDAAW 03 – TOP ASSEMBLY

Products

Position	Product
001	WP211726 Whirlpool Ball Assembly
002	MAY 22001298
003	MAY 210186
005	MAY 213501
006	MAY 22001311
007	WP213720 Whirlpool Spring Assembly
008	GROMMET
009	MAY 22001310
010	MAY 910182
011	MAY 22001136
012	MAY 301548
013	MAY 204807
014	LID (WHT-W/LEGEND)
014	(ALM-W/LEGEND)
015	WP212716 Whirlpool Lid Bumper
016	W10820036 Whirlpool Door Switch Kit
017	MAY 216255
018	MAY 211500
019	MAY Y215699
020	DOWEL PIN FOR HANDLE
021	MAY 204445
022	SCREW
