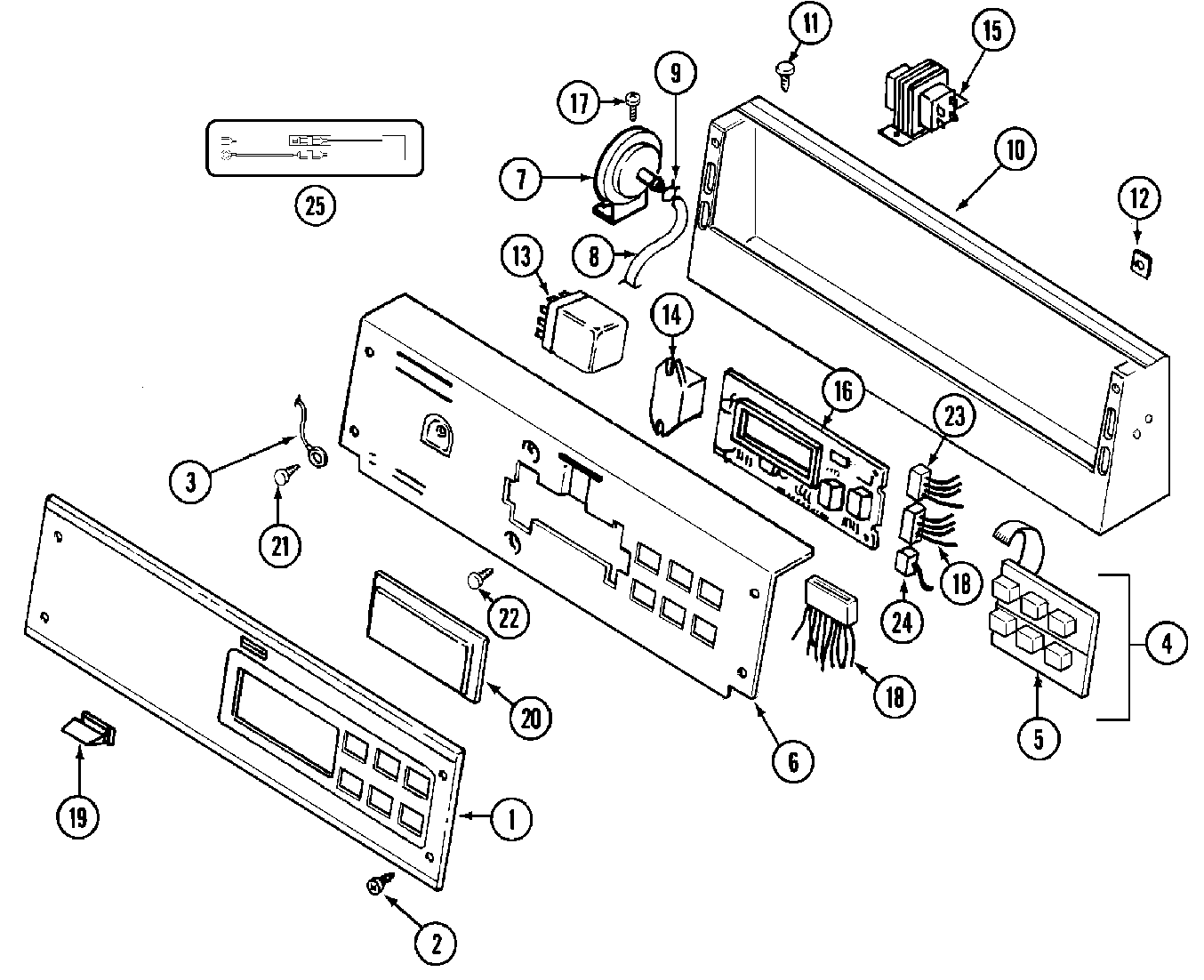

MAT10PDABW 09 – CONTROL PANEL

Products

Position	Product
002	WPW10131119 Whirlpool Screw
003	MAY 204807
004	SCREW, CIRCUIT BOARD
004	WPW10135389 Whirlpool Switch
005	WPW10424308 Whirlpool Push Button
006	MAY 215516
007	WP22001308 Whirlpool Water Switch
008	MAY 212942
009	WP596669 Whirlpool Hose Clamp
010	MAY 206780L
010	CONTROL COVER ASSY
011	MAY 212276
012	MAY 215003
013	MAY 206421
014	SCREW, BUSHINGS
014	MAY 206824
015	MAY 207766
016	SPACER CIRCUIT BOARD
016	MAY 33001249
016	MAY 207767
016	M0282005 Whirlpool Nut
017	WP90767 Whirlpool Screw
018	MAY 314531
018	MAY Y312953
019	MAY 214610
020	MAY 33001208
021	MAY 210186
022	W10756178 Whirlpool Screw
023	MAY 206799
024	MAY 22001361
024	HARNESS, WIRE (SWITCHES) SENSOR SWITCHES TO CIRCUIT BRD
025	DOWEL PIN FOR HANDLE
