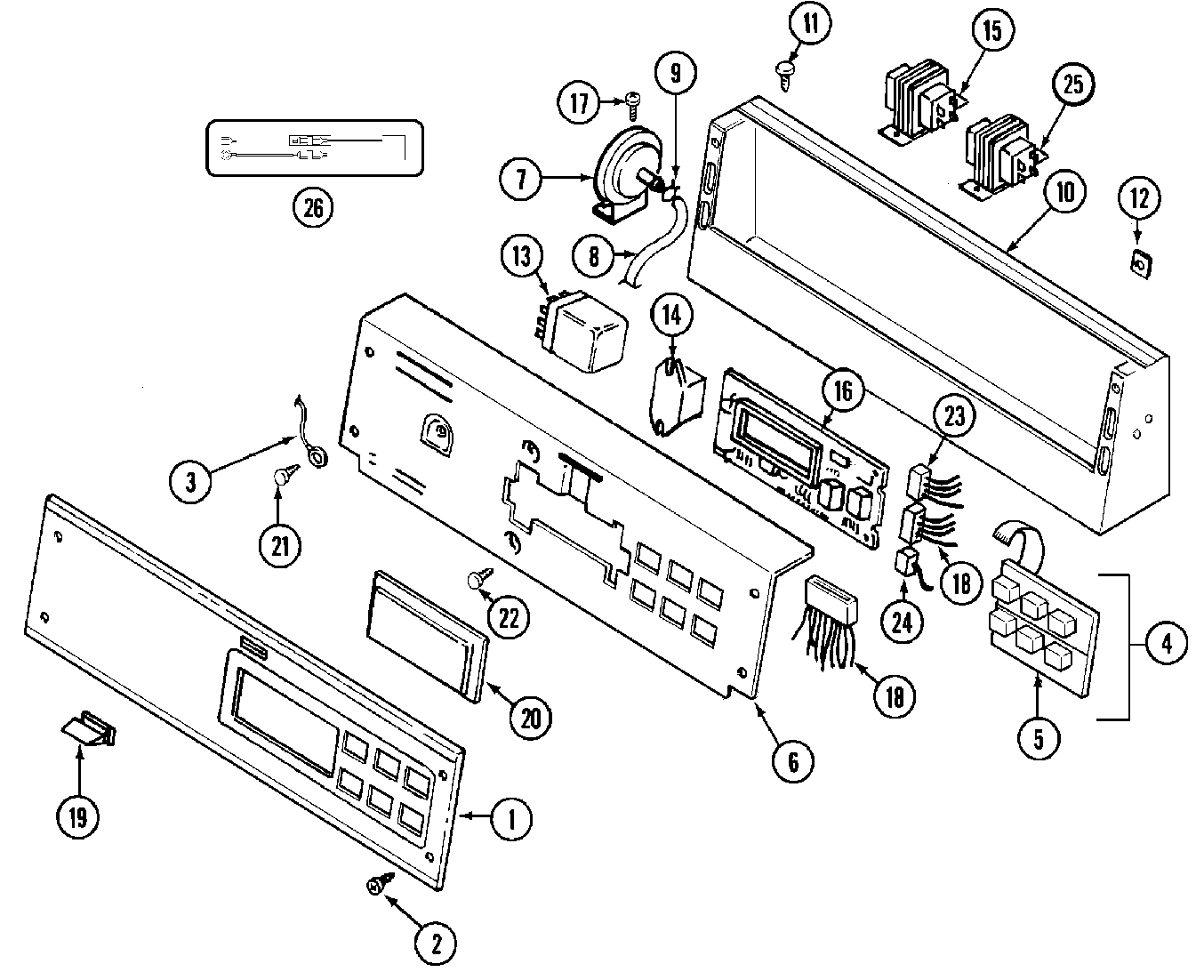

MAT10PSAAL 01 – CONTROL PANEL

MAT10PSAAL 01 – CONTROL PANEL

Written by

in

MAT10PSAAL 01 – CONTROL PANEL

Products

PositionProduct
002WPW10131119 Whirlpool Screw
003MAY 204807
004WPW10135389 Whirlpool Switch
004W10756178 Whirlpool Screw
005WPW10424308 Whirlpool Push Button
006MAY 215516
007WP22001308 Whirlpool Water Switch
008MAY 212942
009WP596669 Whirlpool Hose Clamp
010CONTROL COVER ASSY
010MAY 206780L
011MAY 212276
012MAY 215003
013MAY 206421
013MAY 22001418
014MAY 206824
014SCREW, BUSHINGS
015MAY 207766
016MAY 33001249
016MAY 207767
016M0282005 Whirlpool Nut
016SPACER CIRCUIT BOARD
017WP90767 Whirlpool Screw
018MAY 314531
018MAY Y312953
019MAY 214610
020MAY 33001208
021MAY 210186
022SCREW, CIRCUIT BOARD
023MAY 206799
024MAY 22001361
024HARNESS, WIRE (SWITCHES) SENSOR SWITCHES TO CIRCUIT BRD
025TRANSFORMER
02574005230 Whirlpool Oven Lock Nut (8-32)
025MAY 211251
026DOWEL PIN FOR HANDLE
