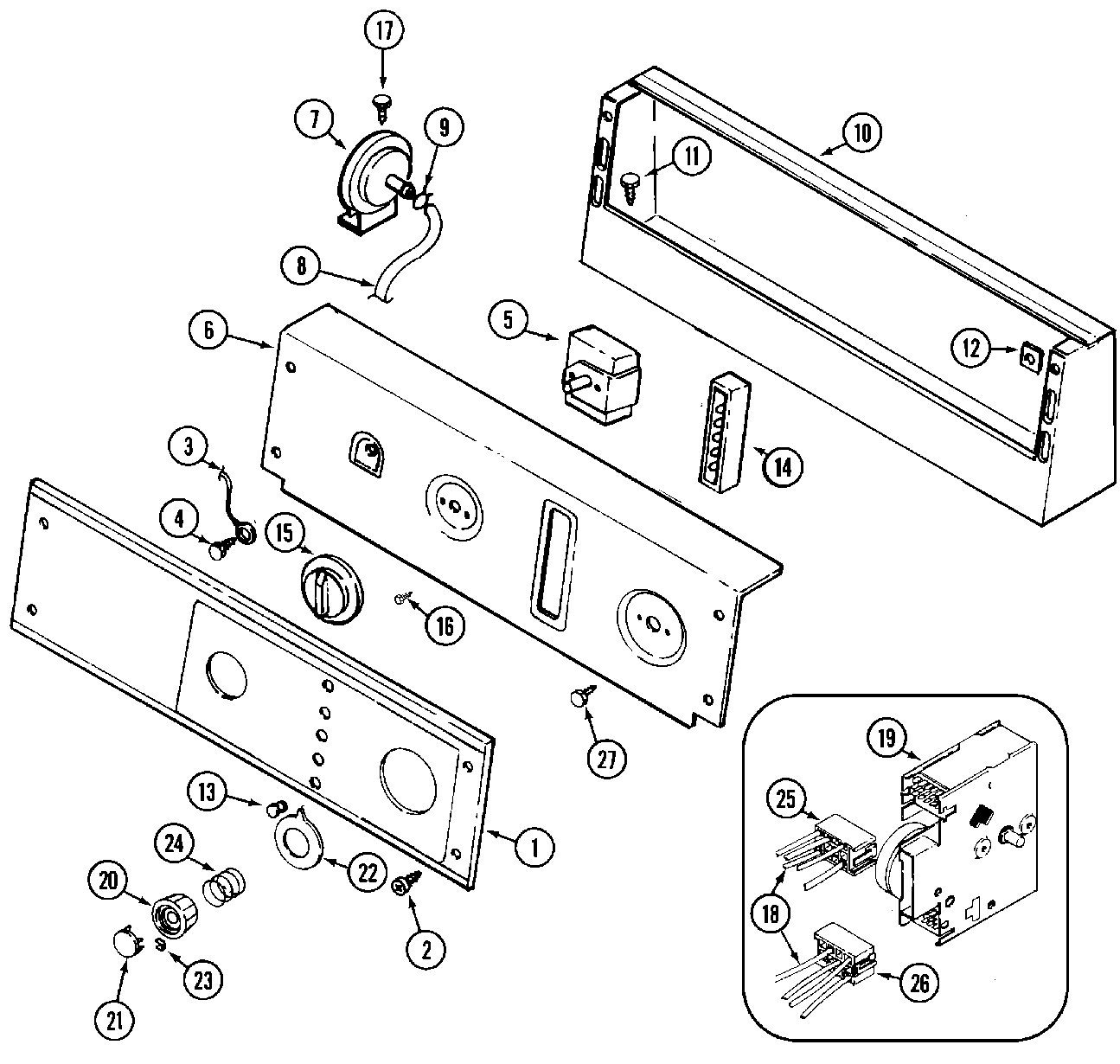

MAT13MNDGW 01 – CONTROL PANEL

Products

PositionProduct
001MAY 22004328
002WPW10131119 Whirlpool Screw
003MAY 22001959
004MAY 22003817
005SWITCH, TEMP.
006BRACKET, BACK (WHT)
007MAY 203263
008WP22001619 Whirlpool Washer Water Level Pressure Switch Hose
009WP596669 Whirlpool Hose Clamp
010MAY 22003093
011MAY Y313559
012MAY 215003
013WP215564 Whirlpool Indicator Lens
014INDICATIOR, 5 LIGHT 250V
015MAY 206894
016WP488234 Whirlpool Air Conditioner Screw
017WP90767 Whirlpool Screw
018MAY 22001922
018MAY 22003881
018MAY 22004395
018MAY 22004407
019MAY 22001084
020MAY 206892
021MAY 33002507
023MAY 211605
024WP211065 Whirlpool Timer Spring
025MAY 22001885
026MAY 22001886
027MAY 216412
