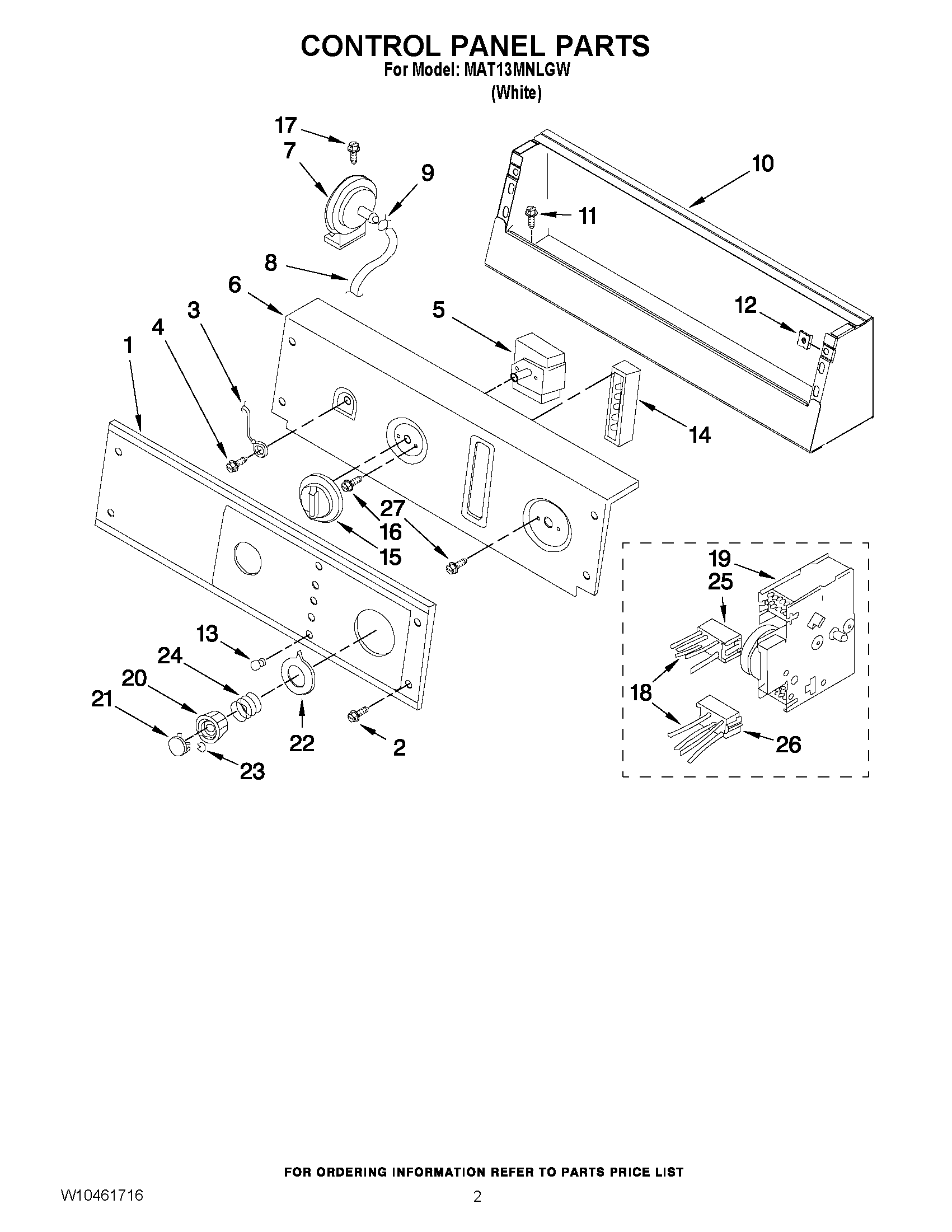

MAT13MNLGW 01 – CONTROL PANEL PARTS

MAT13MNLGW 01 – CONTROL PANEL PARTS

Written by

in

MAT13MNLGW 01 – CONTROL PANEL PARTS

Products

PositionProduct
1MAY W10136961
2WPW10131119 Whirlpool Screw
3MAY 22001959
4MAY 22003817
5SWITCH, TEMP.
6MAY W10136967
7MAY W10136964
8WP22001619 Whirlpool Washer Water Level Pressure Switch Hose
9WP596669 Whirlpool Hose Clamp
10MAY W10136402
11MAY Y313559
12MAY 215003
13WP215564 Whirlpool Indicator Lens
15MAY 206894
16WP488234 Whirlpool Air Conditioner Screw
17WP90767 Whirlpool Screw
18MAY 22002257
19MAY 22001082
20MAY 206892
21WPW10133501 Whirlpool Cap
23MAY 211605
24WP211065 Whirlpool Timer Spring
25LINER (NOT A SERVICEABLE PART)
25MAY 22001885
26MAY 22001886
27MAY 216412
