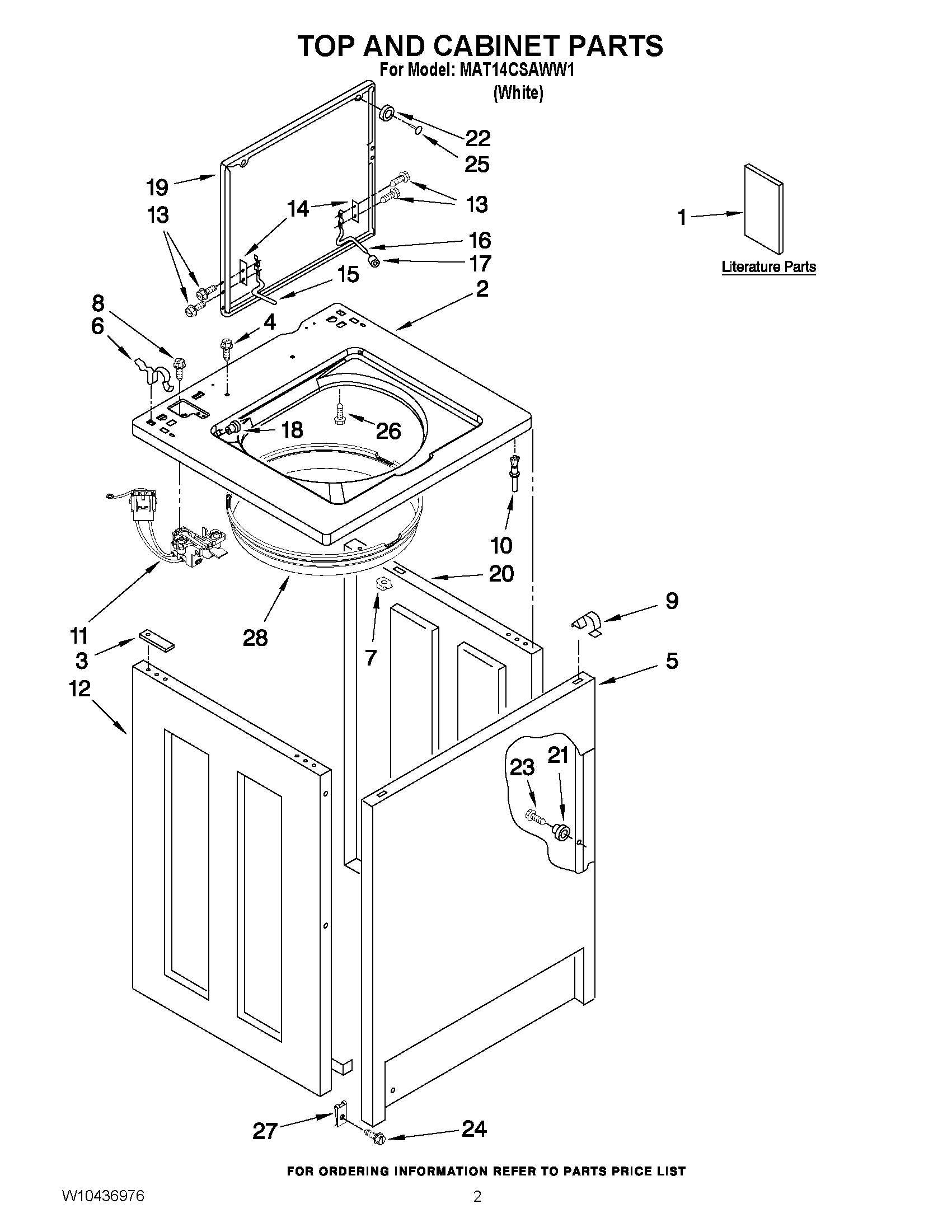

MAT14CSAWW1 01 – TOP AND CABINET PARTS

Products

Position	Product
1	MAY W10135312
1	MAY W10177489
2	MAY W10136711
3	MAY 3353950
4	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
5	Panel, Front
6	MAY 62780
7	NUT, CAGE
8	Screw & Washer, Lid Switch (2)
9	Locator-Top
10	MAY 3353949
11	MAY 8054980
12	Panel L.H.
13	SCREW, LID HINGE
14	Pad, Lid Hinge
15	MAY 8524784
16	HINGE, LID (RIGHT HAND)
17	MAY 19119
18	Hinge, Bearing (2)
19	MAY W10171146
20	Panel R.H.
21	MAY 3353812
22	Bumper, Lid
23	Screw (4)
24	SCREW
25	Rivet, Plastic
26	Screw 10-16 X .690
27	MAY W10004930
28	Shield Assembly
