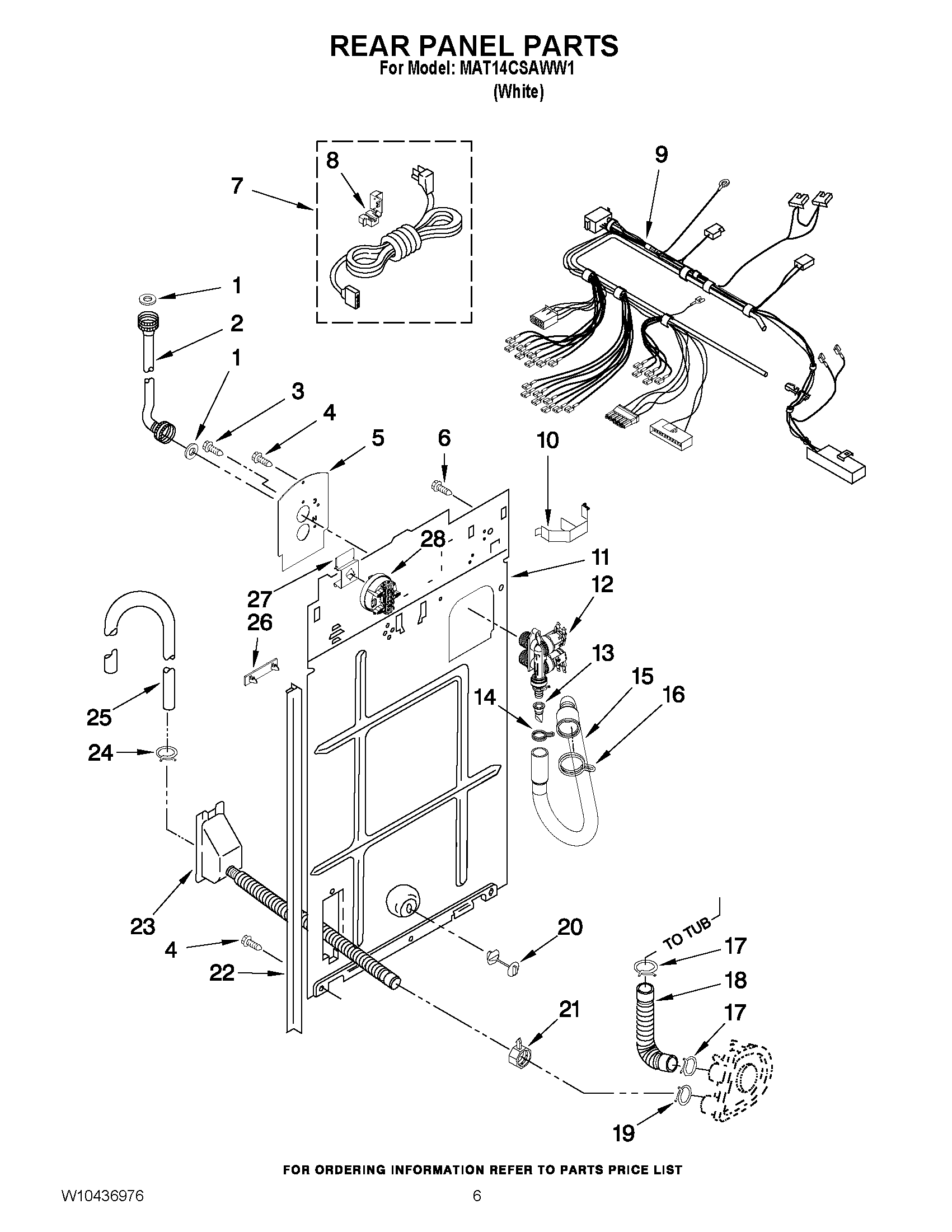

MAT14CSAWW1 04 – REAR PANEL PARTS

Products

Position	Product
1	ACCESSORY PARTS, WASHER, HOSE
2	MAY 3949381
2	MAY 3949380
3	SCREW
4	Screw, Mixing Valve Mounting
5	MAY 8541624
6	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
7	MAY 3976231
8	MAY 3952821
9	MAY W10177764
10	Clip, Harness & Pressure Switch
11	Panel, Rear
12	MAY W10151480
13	MAY 8055306
14	MAY W10156124
15	MAY W10114765
16	MAY W10151157
17	Clamp, Hose (2)
18	Hose & Clamp Assembly
19	MAY W10142630
20	MAY 8519200
21	Clamp, Hose
22	MAY 3354204
23	MAY W10358151
24	MAY 8317496
25	MAY W10141216
26	Retainer, Harness
27	MAY W10133269
28	MAY W10414160

No products found
