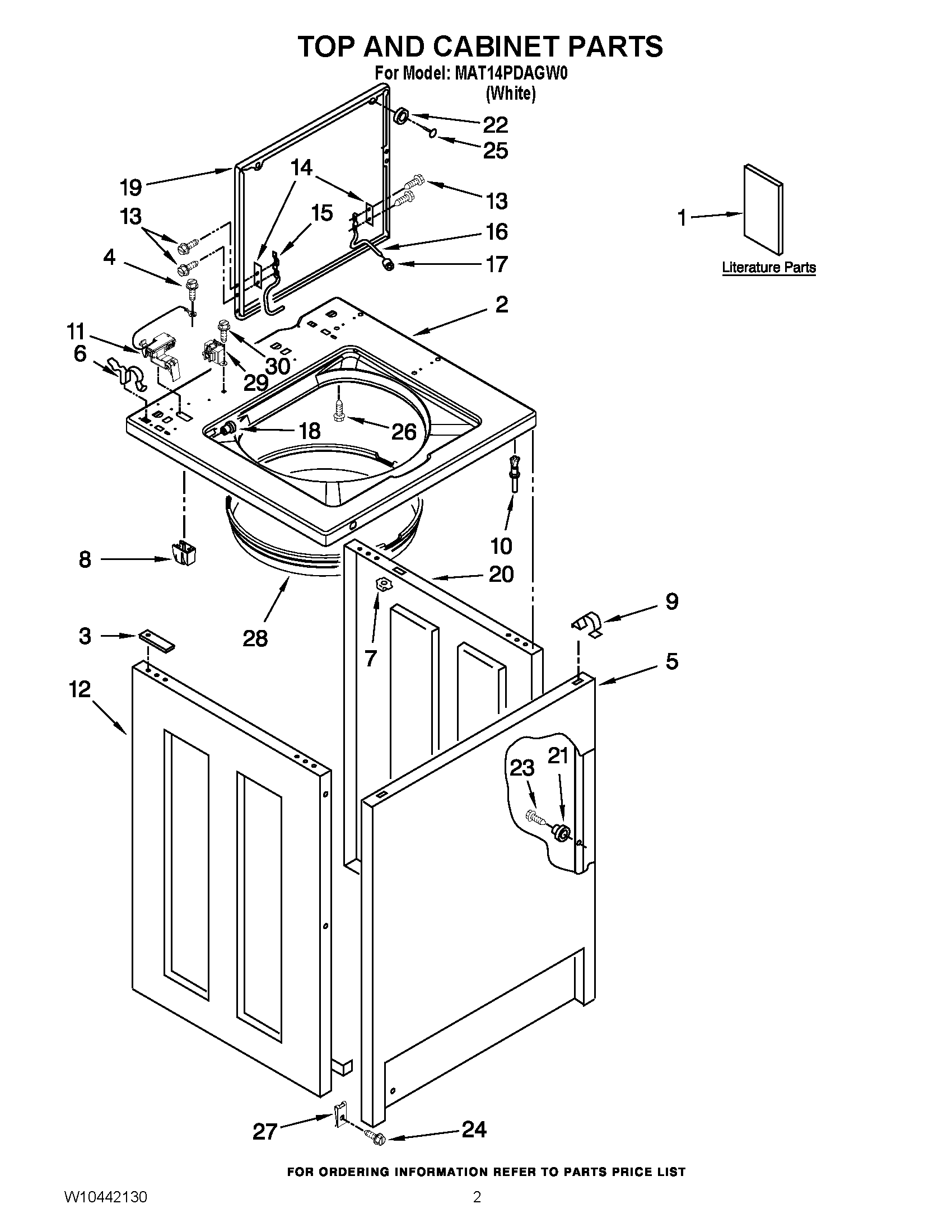

MAT14PDAGW0 01 – TOP AND CABINET PARTS

MAT14PDAGW0 01 – TOP AND CABINET PARTS

Written by

in

MAT14PDAGW0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1MAY W10409430
1MAY W10045628
1MAY W10045627
2MAY W10201073
3MAY 3353950
4SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
5Panel, Front
6MAY 62780
7NUT, CAGE
8MAY W10180691
9Locator-Top
10MAY 3353949
11MAY W10237162
12Panel L.H.
13SCREW, LID HINGE
14Pad, Lid Hinge
15MAY 8559336
16HINGE, LID (RIGHT HAND)
17MAY 19119
18Hinge, Bearing (2)
19MAY W10171146
20Panel R.H.
21MAY 3353812
22Bumper, Lid
23Screw (4)
24SCREW
25Rivet, Plastic
26Screw 10-16 X .690
27MAY W10004930
28Shield Assembly
29TRANSFORMER
30SCREW,8-18 X 3/8
