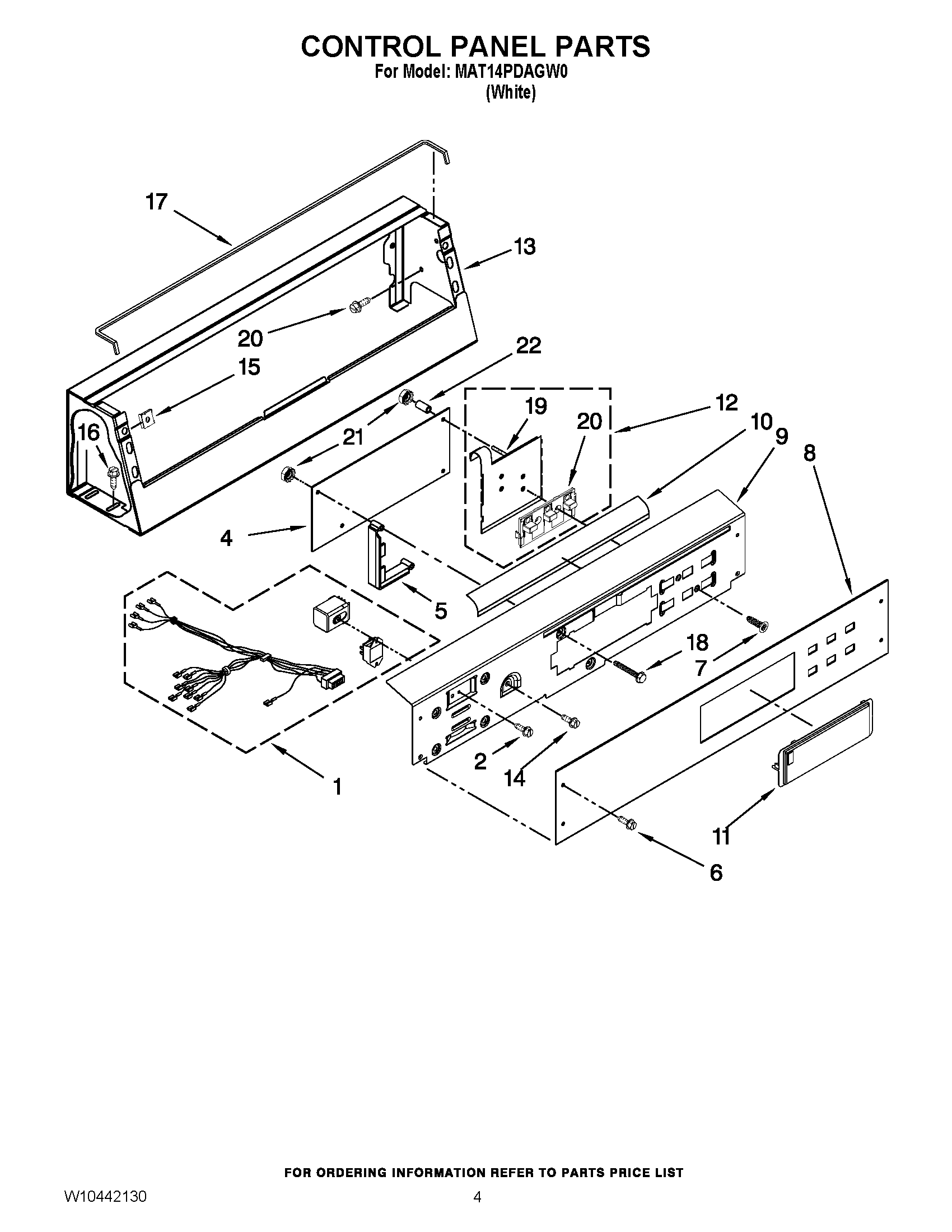

MAT14PDAGW0 02 – CONTROL PANEL PARTS

Written by

Products

Position	Product
1	MAY W10337495
2	SCREW, 6-32 X 1/2
4	MAY W10130701
5	MAY W10161568
6	MAY W10131119
7	MAY W10140652
8	MAY W10135334
9	MAY W10124210
10	MAY W10133515
11	Cover, Display
12	MAY W10135389
13	MAY W10205153
14	MAY W10139210
15	NUT, "U"
16	SCREW
17	Foam Seal
18	SCREW
19	SWITCH, MEMBRANE & BACKER PLATE
20	BUTTON, PUSH
21	NUT
22	STANDOFF, CIRCUIT BOARD
