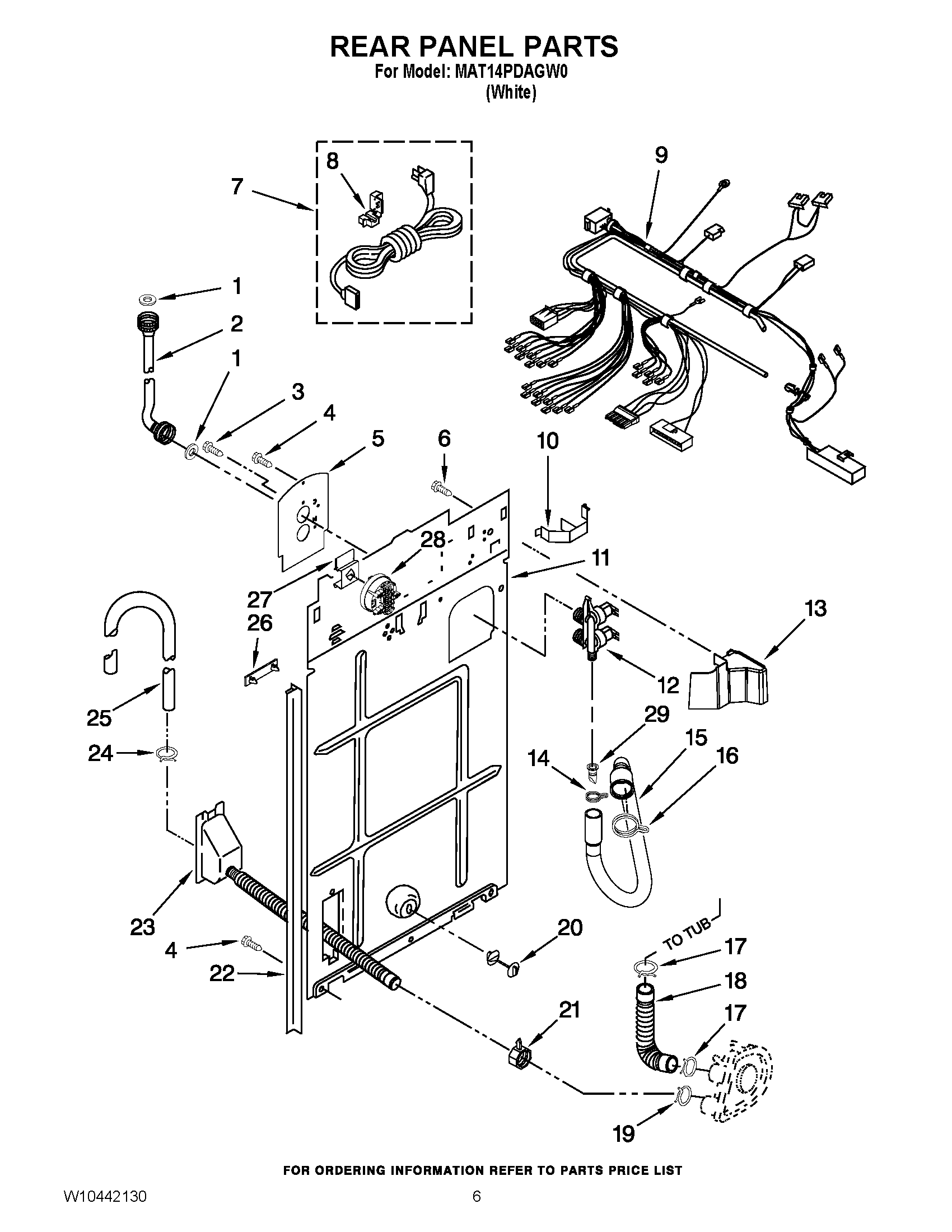

MAT14PDAGW0 04 – REAR PANEL PARTS

Products

Position	Product
NI	MAY W10223809
NI	MAY W10223807
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10223804
NI	MAY W10153836
1	ACCESSORY PARTS, WASHER, HOSE
2	Hose, Water Inlet (Red)
2	Hose, Water Inlet (Blue)
3	MAY W10080930
4	Screw, Mixing Valve Mounting
6	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
7	MAY W10162486
8	MAY 8559337
9	MAY W10337493
10	Clip, Harness & Pressure Switch
11	Panel, Rear
12	VALVE, WATER MIXING
13	MAY 8314879
14	MAY W10156124
15	MAY W10114765
16	MAY W10151157
17	MAY W10094820
18	MAY W10116973
19	MAY W10142630
20	MAY 8519200
21	Clamp, Hose
22	MAY 3354204
23	MAY W10358151
24	MAY W10112110
25	MAY W10141216
26	Retainer, Harness
27	MAY W10133269
28	MAY W10414159
29	MAY 8055306
