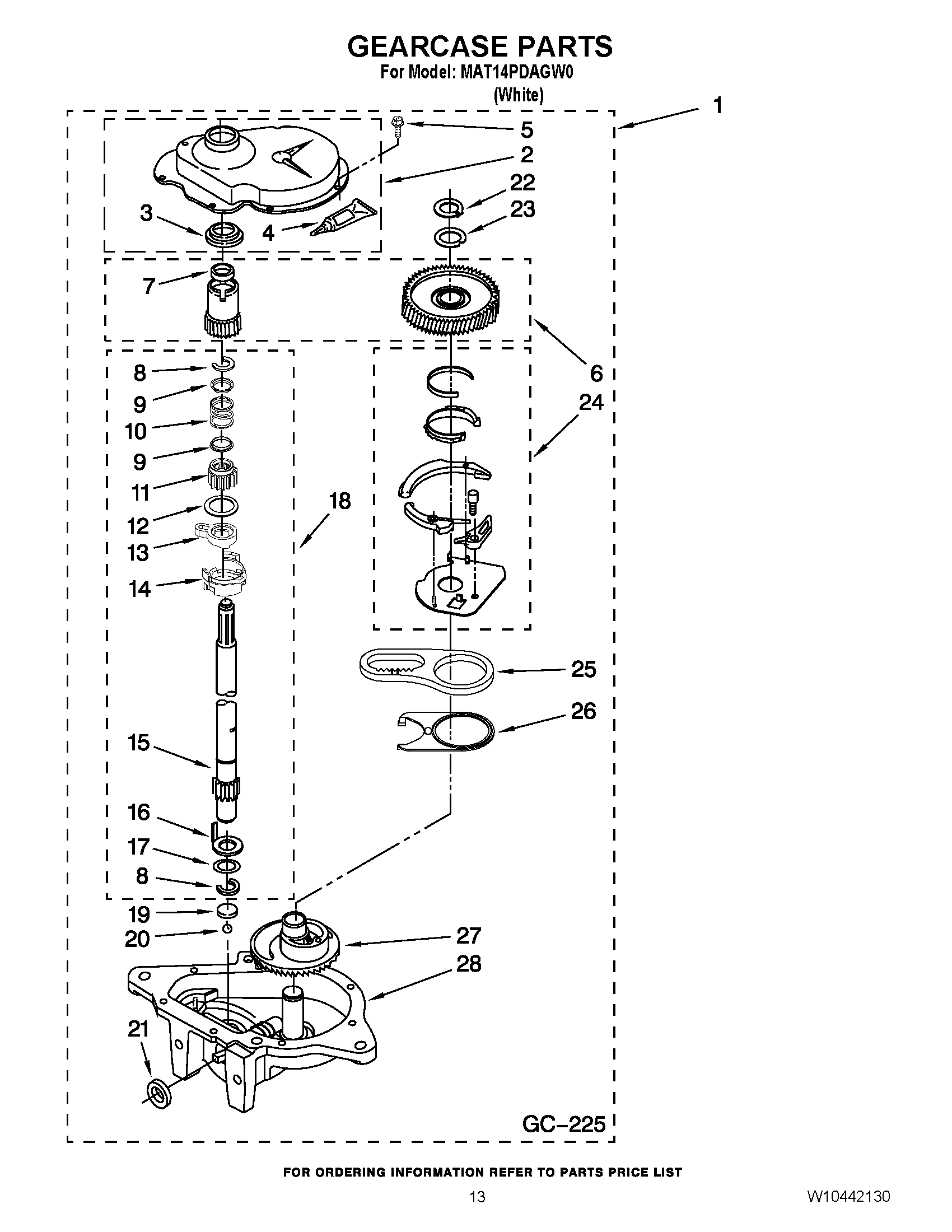

MAT14PDAGW0 09 – GEARCASE PARTS

MAT14PDAGW0 09 – GEARCASE PARTS

Written by

in

MAT14PDAGW0 09 – GEARCASE PARTS

Products

Position	Product
1	MAY W10140302
2	MAY 285202
3	MAY 3349985
4	SEALER, GASKET (.20 FL. OZ.) (6ML)
5	Screw, Ground
6	MAY W10172898
8	MAY 90369
9	Retainer, Spring (2)
10	MAY 62676
11	GEAR, AGITATE
12	MAY 62619
13	MAY 62580
14	CAM, AGITATE
15	MAY 389231
16	MAY 62618
17	MAY 388815
18	SHAFT, AGITATOR COMPLETE
19	Bearing, Thrust (Includes 18)
20	Ball, Bearing (Includes 17)
21	MAY W10111745
22	MAY 3362552
23	MAY 285766
24	MAY 388253
25	MAY 8546456
26	MAY 62621
28	LINER (NOT A SERVICEABLE PART)
