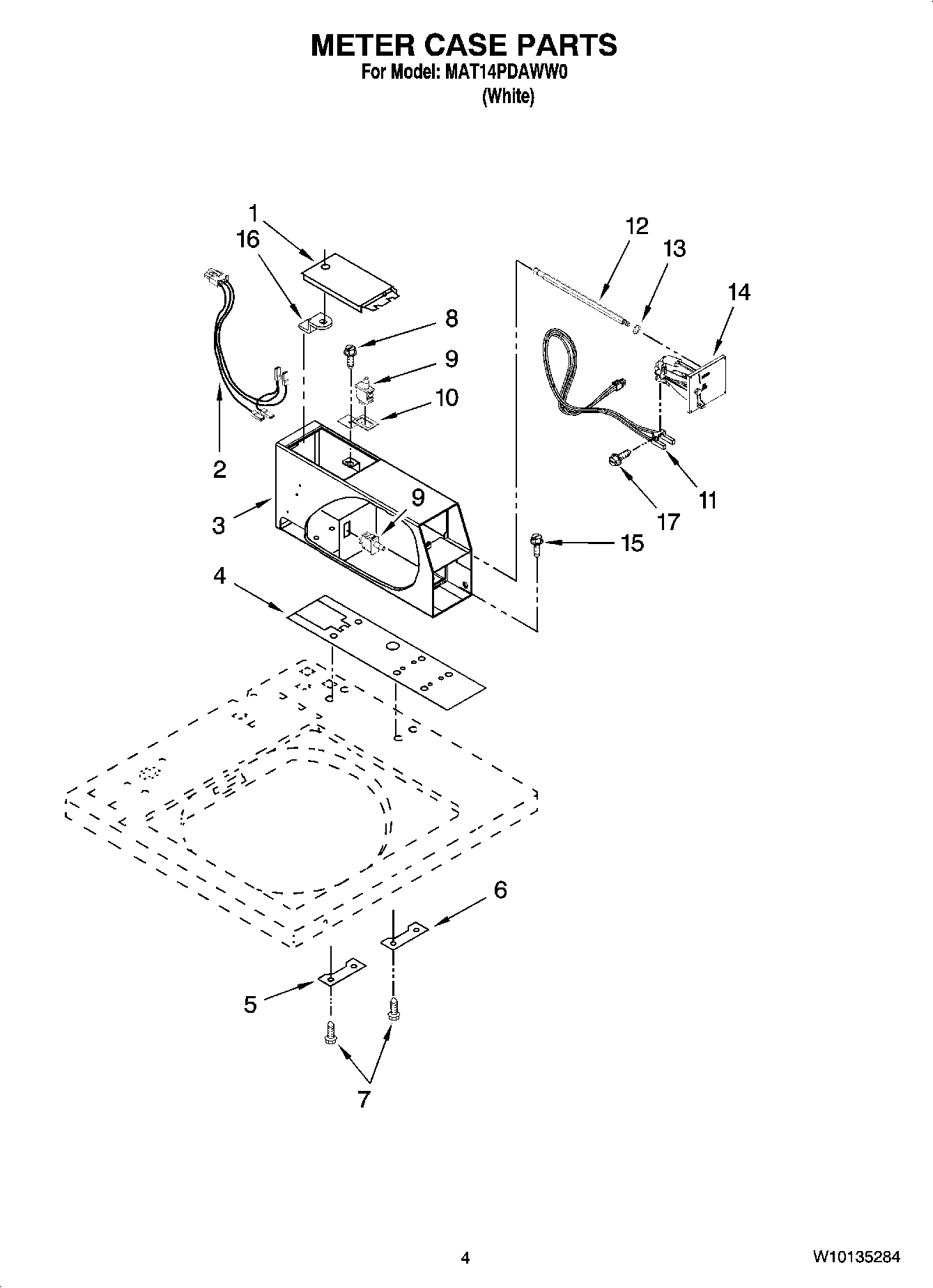

MAT14PDAWW0 03 – METER CASE PARTS

Written by

Products

Position	Product
1	ASSEMBLY, SERVICE DOOR
2	MAY W10139456
3	MAY W10136645
4	CUSHION, METER CASE
5	MAY 3353813
6	MAY 3347825
7	SCREW
8	MAY W10139210
9	MAY W10131838
10	MAY W10133508
11	Coin Optic Sensor Assembly
12	MAY W10137319
13	Washer
14	ASSEMBLY, SINGLE COIN DROP, MDE20PDAYW0
15	METER CASE MOUNTING (BOLT)
15	BOLT
16	MAY W10156125
17	SCREW
