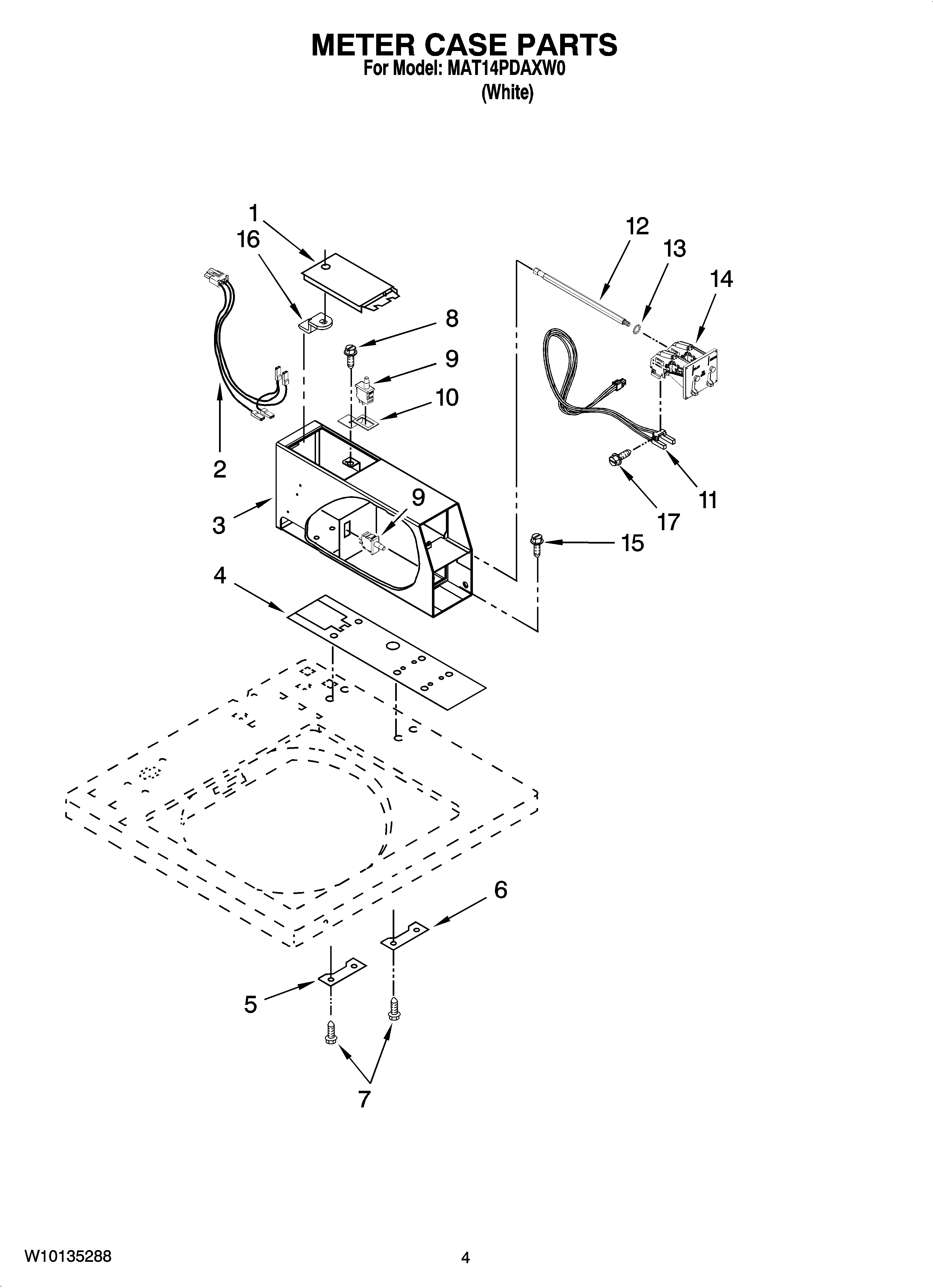

MAT14PDAXW0 03 – METER CASE PARTS

Products

Position	Product
1	W11283272 Whirlpool Washer Dryer Meter Case Access Door
2	W10847806 Whirlpool Wire Harness
3	WPW10529176 Whirlpool Case
4	WP3954812 Whirlpool Cushion
5	Plate, Mounting
6	3347825 Whirlpool Plate
7	W10841059 Whirlpool Screw
8	WPW10139210 Whirlpool Screw
9	WPW10131838 Whirlpool Voltage Switch
11	WPW10247389 Whirlpool Dryer Coin Optic Sensor
12	WPW10137319 Whirlpool Bolt
13	W11170663 Whirlpool Washer
14	W11643135 Whirlpool Coin Drop Assembly
15	3353994 Whirlpool Screw Assembly
15	W11715721 Whirlpool Screw Assembly
17	WP3395530 Whirlpool Screw
