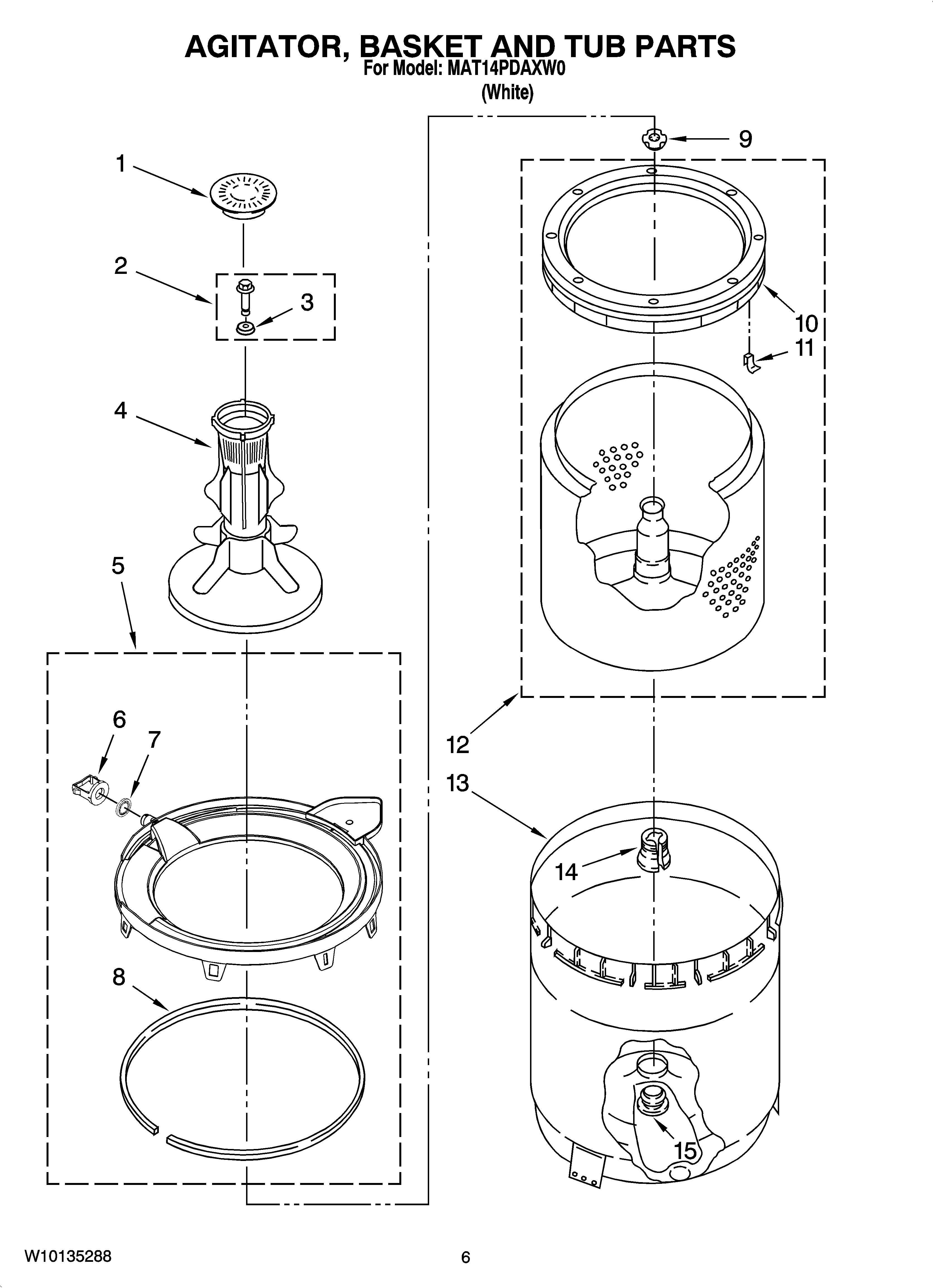

MAT14PDAXW0 05 – AGITATOR, BASKET AND TUB PARTS

MAT14PDAXW0 05 – AGITATOR, BASKET AND TUB PARTS

Written by

in

MAT14PDAXW0 05 – AGITATOR, BASKET AND TUB PARTS

Products

PositionProduct
1WPW10131111 Whirlpool Cap
2W10772621 Whirlpool Washplate Screw
3WP3949550 Whirlpool Gasket Assembly
4AGITATOR
5W10114776 Whirlpool Tub Ring
6WPL 8055316
7WPL 3369375
8WP3359586 Whirlpool Tub Seal
9WP21366 Whirlpool Spanner Nut
10WP3956205 Whirlpool Balance Ring
11WP8519815 Whirlpool Washer Balance Ring Clip
12Basket & Balance Ring
13WPL W10135424
14WP389140 Whirlpool Drive Block or Bell
15W10814296 Whirlpool Washer Center Post Seal Gasket
