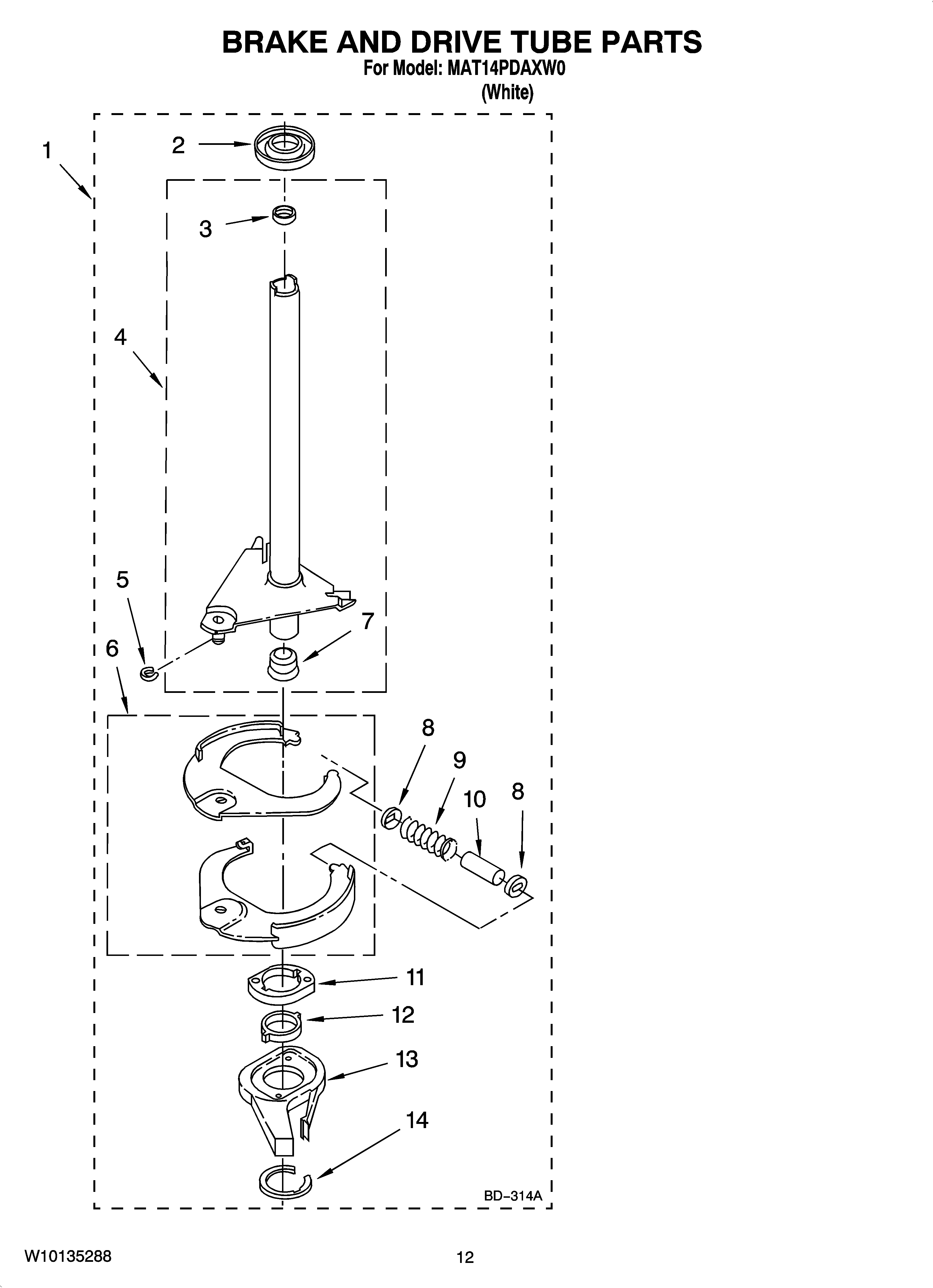

MAT14PDAXW0 09 – BRAKE AND DRIVE TUBE PARTS

MAT14PDAXW0 09 – BRAKE AND DRIVE TUBE PARTS

Written by

in

MAT14PDAXW0 09 – BRAKE AND DRIVE TUBE PARTS

Products

PositionProduct
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
1W10820043 Whirlpool Washer Drive and Brake Basket Assembly
2WP62658 Whirlpool Seal Ring
3WP356427 Whirlpool Shaft Seal
4WP64208 Whirlpool Spin Tube
5W10083190 Whirlpool Ring-E
6285438 Whirlpool Brake Shoe
7WP8546462 Whirlpool Bearing
8285658 Whirlpool Sleeve Kit
9WP62647 Whirlpool Spring Pressure
11WP8546461 Whirlpool Brake Cam Assembly
12WP63022 Whirlpool Sleeve
13285790 Whirlpool Washer Clutch Band and Lining Kit
14WPW10083200 Whirlpool Wire Ring
