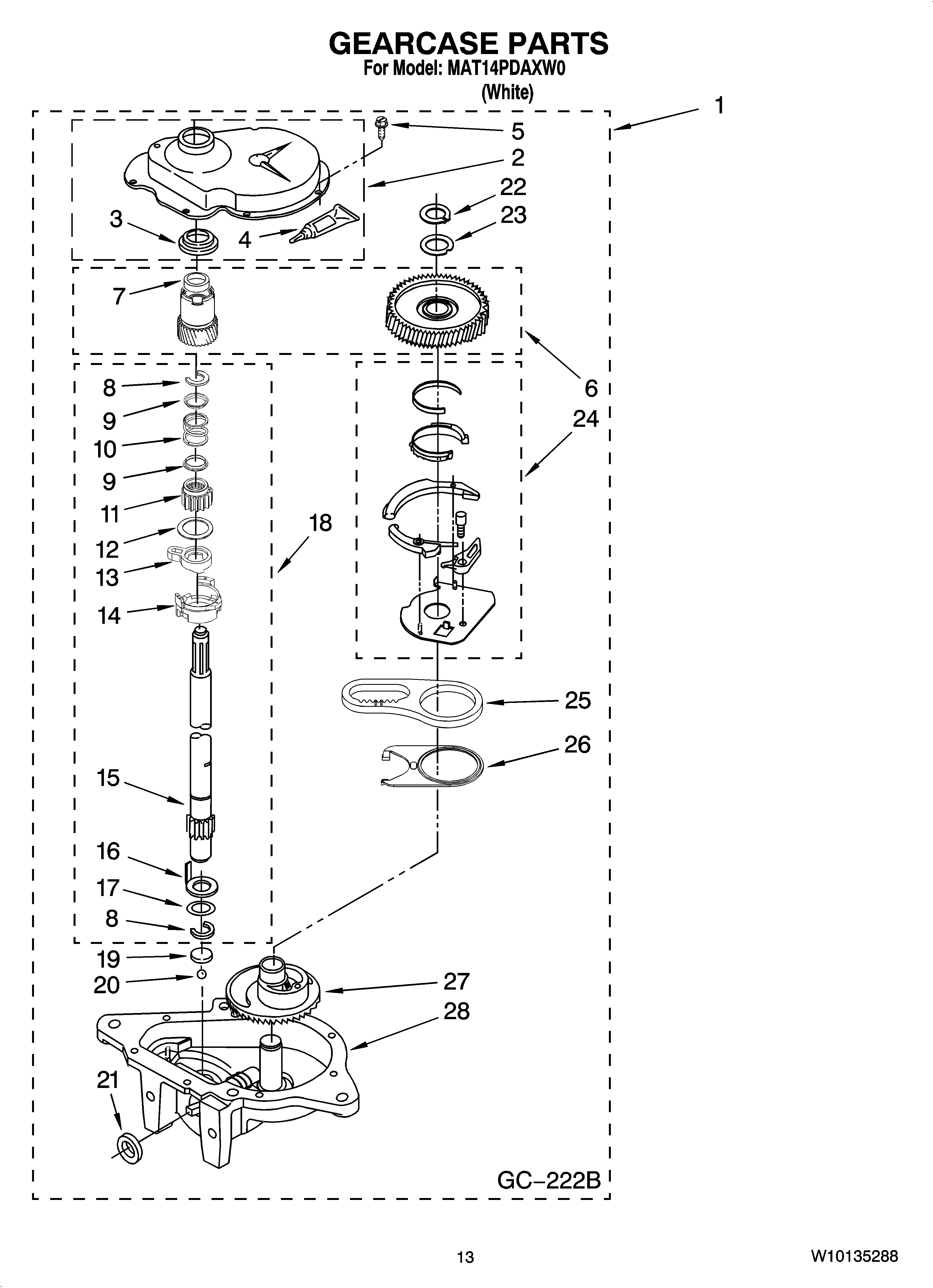

MAT14PDAXW0 10 – GEARCASE PARTS

Products

Position	Product
2	285202 Whirlpool Cover Assembly
3	WP3349985 Whirlpool Shaft Seal
4	WP285195 Whirlpool Sealer Assembly
5	WP3351614 Whirlpool Screw
8	Ring, Retaining (2)
9	62677 Whirlpool Retainer
10	Spring, Agitator
12	62619 Whirlpool Washer
15	Shaft, Agitator
16	Washer, Cam Thrust
17	WP388815 Whirlpool Washer
18	WP389387 Whirlpool Agitator Shaft
19	285205 Whirlpool Bearing
21	285352 Whirlpool Washer Oil Seal Kit for Gearcase Input Shaft
22	Ring, Retaining
23	WPL 285766
24	NEUTRL-PAK
26	3360629 Whirlpool Washer Gearcase Transmission
