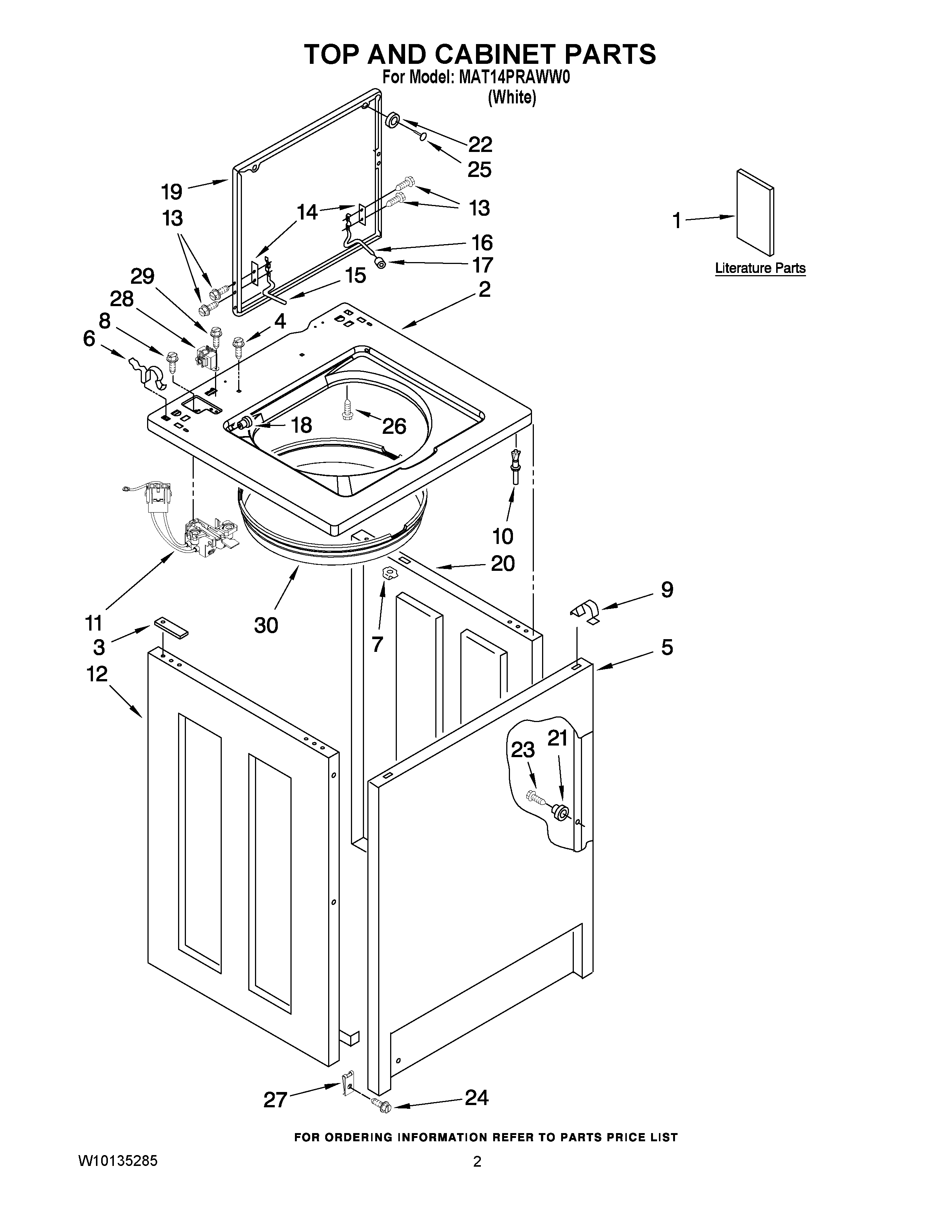

MAT14PRAWW0 01 – TOP AND CABINET PARTS

Products

Position	Product
1	MAY W10146419
1	MAY W10135297
1	MAY W10135294
1	MAY W10135285
1	INSTALLATION INSTRUCTIONS CR
2	MAY W10136709
3	MAY 3353950
4	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
5	Panel, Front
6	MAY 62780
7	NUT, CAGE
8	Screw & Washer, Lid Switch (2)
9	MAY 18779
10	MAY 3353949
11	MAY 8054980
12	Panel L.H.
13	SCREW, LID HINGE
14	Pad, Lid Hinge
15	MAY 8524784
16	HINGE, LID (RIGHT HAND)
17	MAY 19119
18	Hinge, Bearing (2)
19	MAY W10135387
20	Panel R.H.
21	MAY 3353812
22	Bumper, Lid
23	Screw (4)
24	SCREW
25	Rivet, Plastic
26	Screw 10-16 X .690
27	MAY W10004930
28	MAY W10131839
29	SCREW,8-18 X 3/8
30	Shield Assembly
