MAT14PRAWW0 02 – CONTROL PANEL PARTS

MAT14PRAWW0 02 – CONTROL PANEL PARTS

Written by

in

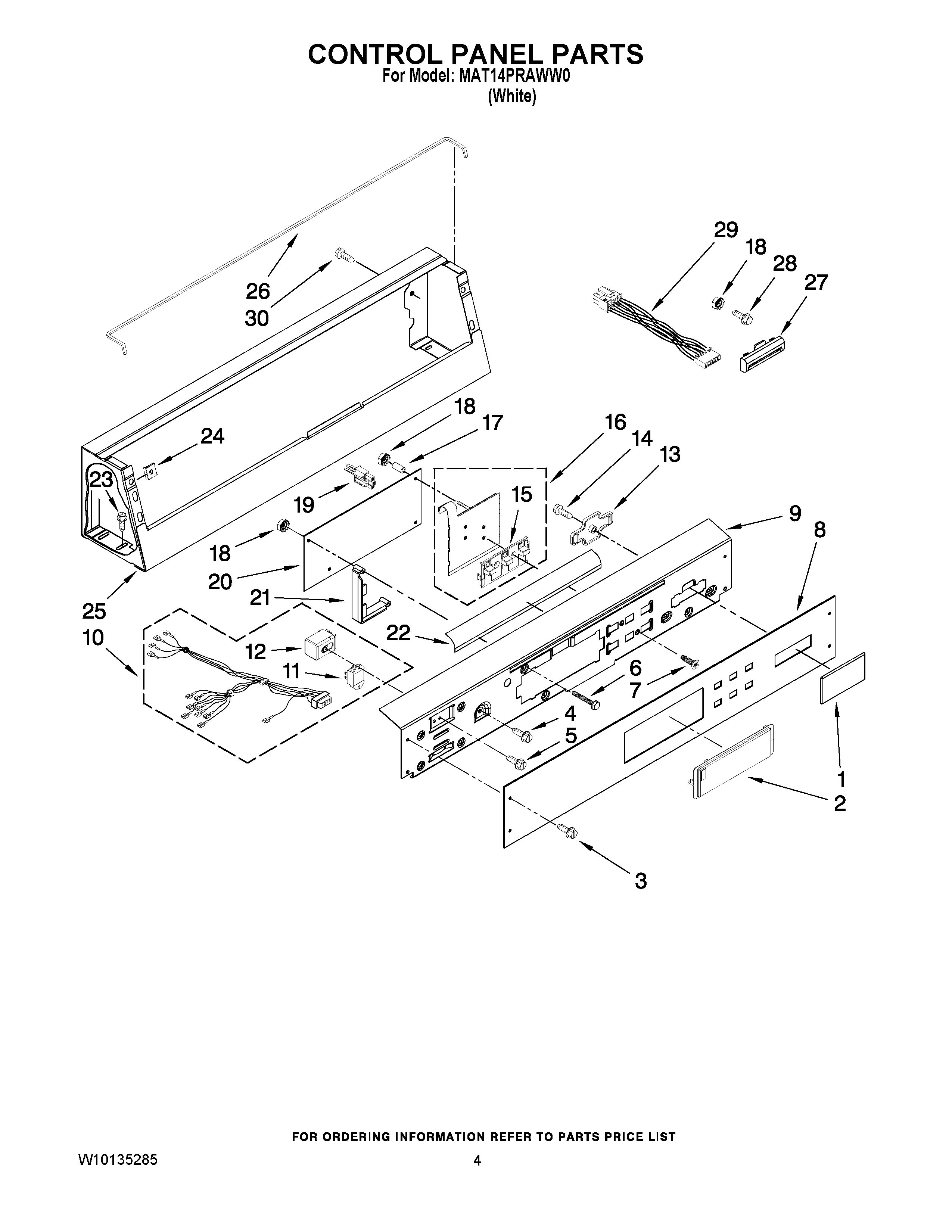

MAT14PRAWW0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1COVER, CARD READER
2Cover, Display
3MAY W10131119
4SCREW, 6-32 X 1/2
5SCREW
6SCREW
7MAY W10140652
8MAY W10135335
9MAY W10124211
10MAY W10153453
11MAY W10133335
12MAY W10133279
13RETAINER, CARD READER COVER
14MAY 3400618
15BUTTON, PUSH
16MAY W10135389
17STANDOFF, CIRCUIT BOARD
18NUT
19JUMPER, SWITCH SERVICE/VAULT
20MAY W10130701
21MAY W10161568
22MAY W10133515
23SCREW
24NUT, "U"
25MAY W10137300
26SEAL-FOAM (IEC)
27BEZEL
28SCREW
29CARD READER, HARNESS
30SCREW
