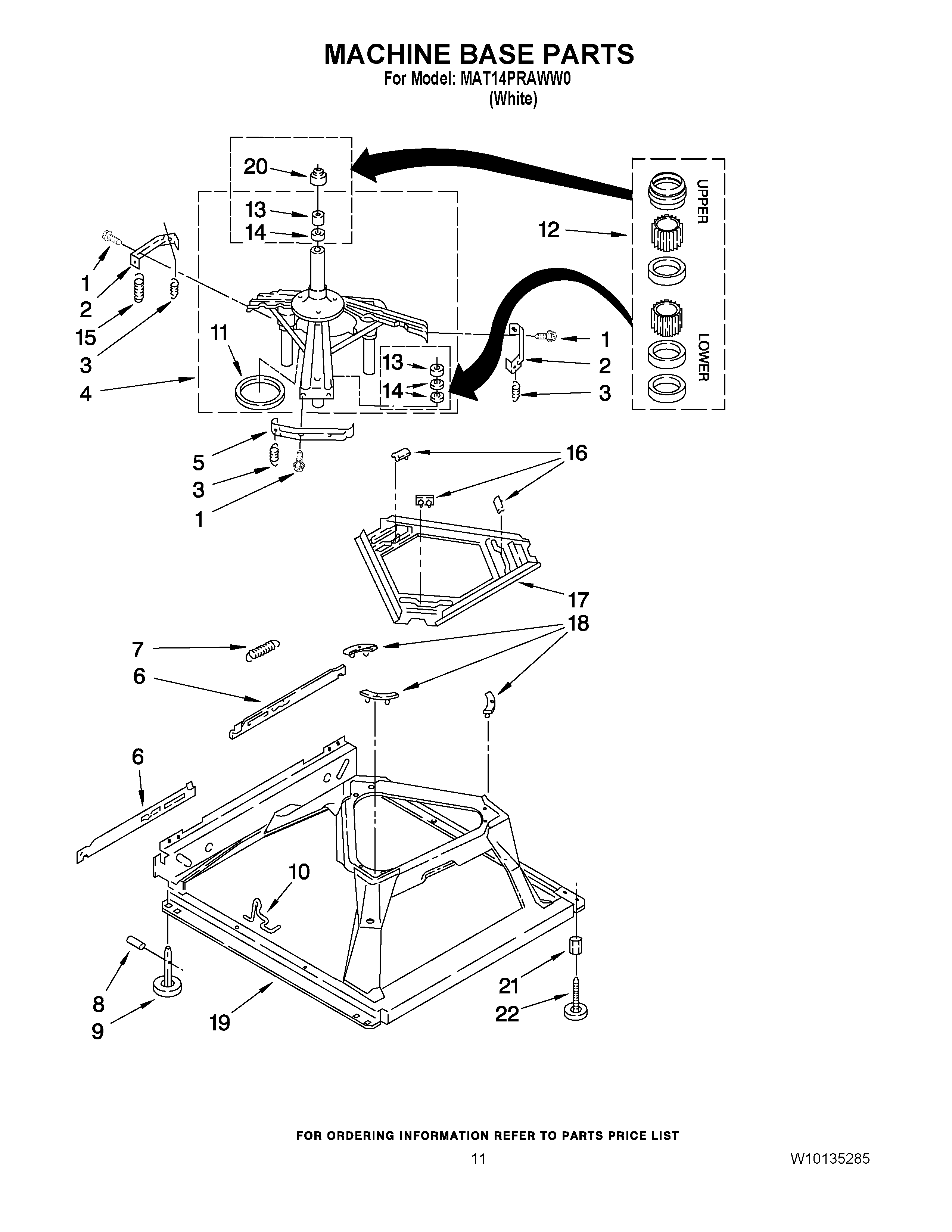

MAT14PRAWW0 06 – MACHINE BASE PARTS

Products

Position	Product
1	Screw, 10-32 x 5/8
2	MAY 64067
3	SPRING, SUSPENSION(3)
4	MAY 3362087
5	MAY 64065
6	MAY 63466
7	MAY 62597
8	MAY 62837
9	MAY 62596
10	MAY W10145155
11	MAY 63134
12	MAY 285203
13	MAY 8546455
14	MAY 357409
15	MAY 388492
16	MAY 62568
17	MAY 3946509
18	MAY 3363660
19	BASE ASSEMBLY (INCLUDES ILLUS, 6, 7, 8, 9, 10, & 18)
20	MAY 8577376
21	Nut, 3/8-16
22	MAY W10001130
