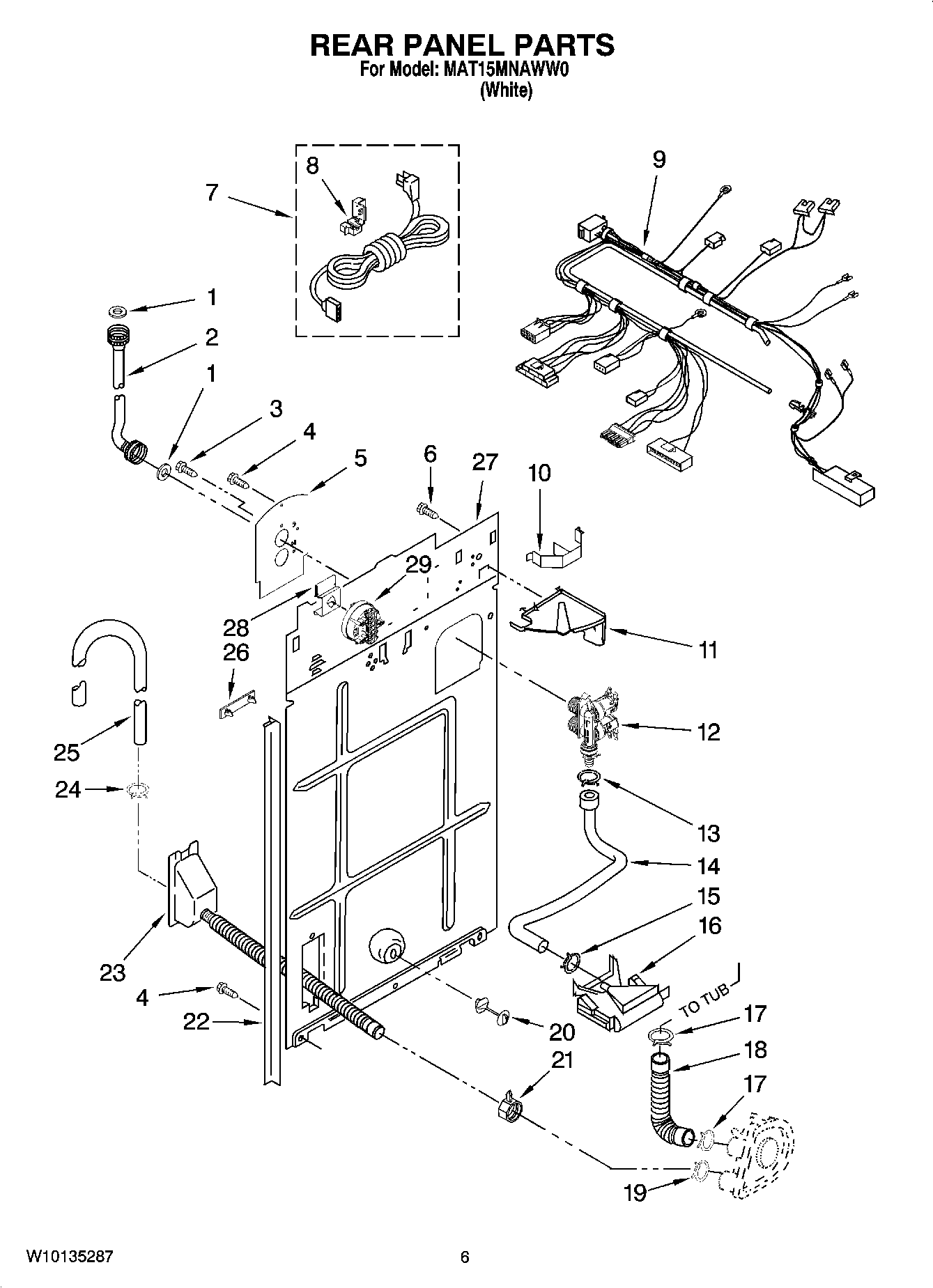

MAT15MNAWW0 03 – REAR PANEL PARTS

Products

Position	Product
1	ACCESSORY PARTS, WASHER, INLET HOSE
2	MAY 3949380
2	MAY 3949381
3	SCREW
4	Screw, Mixing Valve Mounting
5	MAY 8541624
6	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
7	MAY 3976231
8	MAY 3952821
9	MAY W10177765
10	Clip, Harness & Pressure Switch
11	MAY 8539874
12	MAY W10151480
13	MAY 301958
14	MAY 8317974
15	MAY 370450
16	Thermister, Inlet
17	Clamp, Hose (2)
18	Hose & Clamp Assembly
19	MAY W10142630
20	MAY 8519200
21	Clamp, Hose
22	MAY 3354204
23	Drain Hose Assy. (Includes Item 21)
24	MAY 8317496
25	MAY W10141216
26	Retainer, Harness
27	MAY 8541652
28	MAY W10133269
29	MAY W10153112
