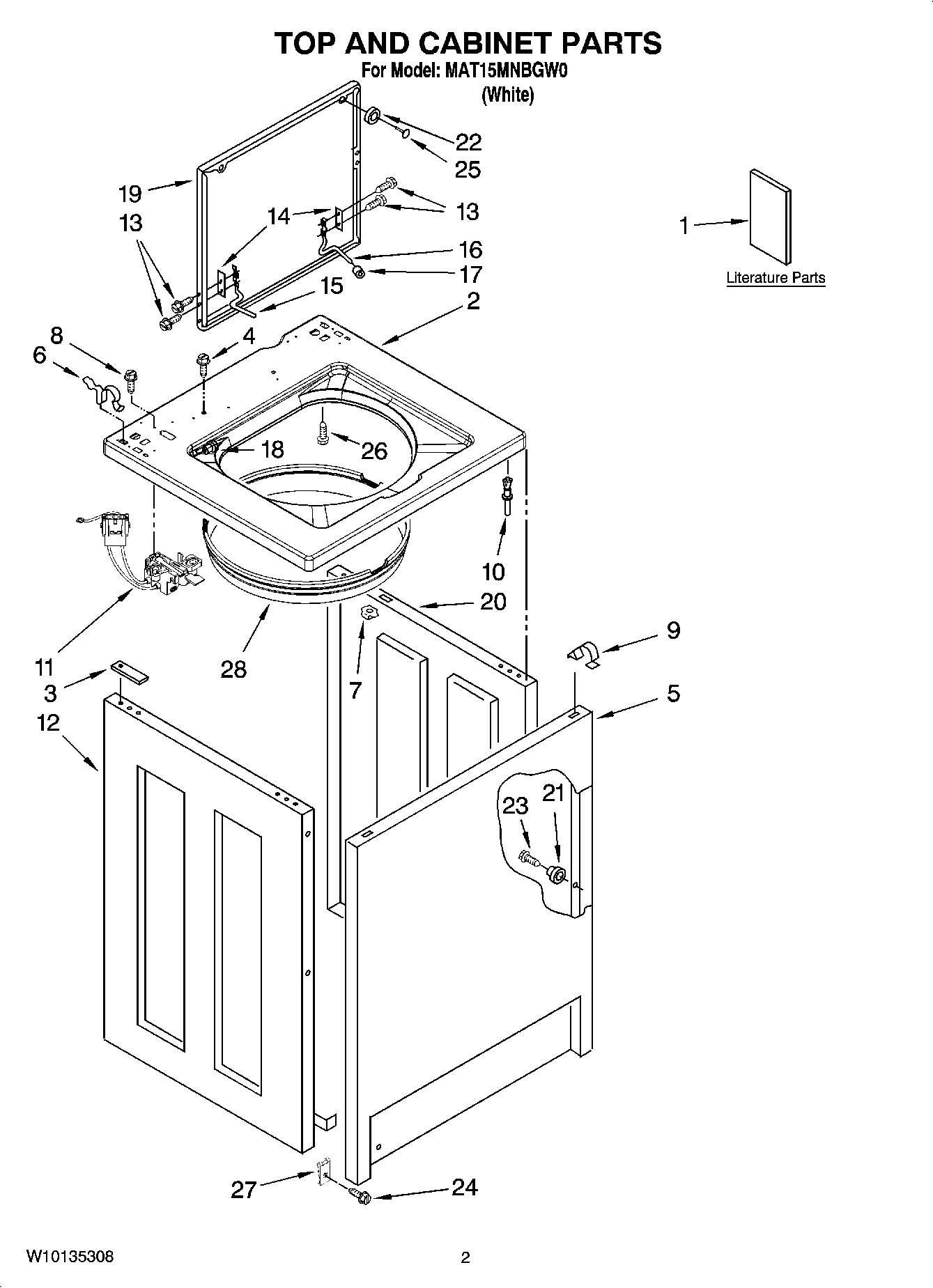

MAT15MNBGW0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Installation Instructions
1MAY W10181266
1MAY W10135308
2MAY W10201081
3MAY 3353950
4SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
5Panel, Front
6MAY 62780
7NUT, CAGE
8Screw, 8-32 x 1/32
9Locator-Top
10MAY 3353949
11MAY 8318084
12Panel L.H.
13SCREW, LID HINGE
14Pad, Lid Hinge
15MAY 8559336
16HINGE, LID (RIGHT HAND)
17MAY 19119
18Hinge, Bearing (2)
19MAY W10171146
20Panel R.H.
21MAY 3353812
22Bumper, Lid
23Screw (4)
24SCREW
25Rivet, Plastic
26Screw 10-16 X .690
27MAY W10004930
28Shield Assembly
