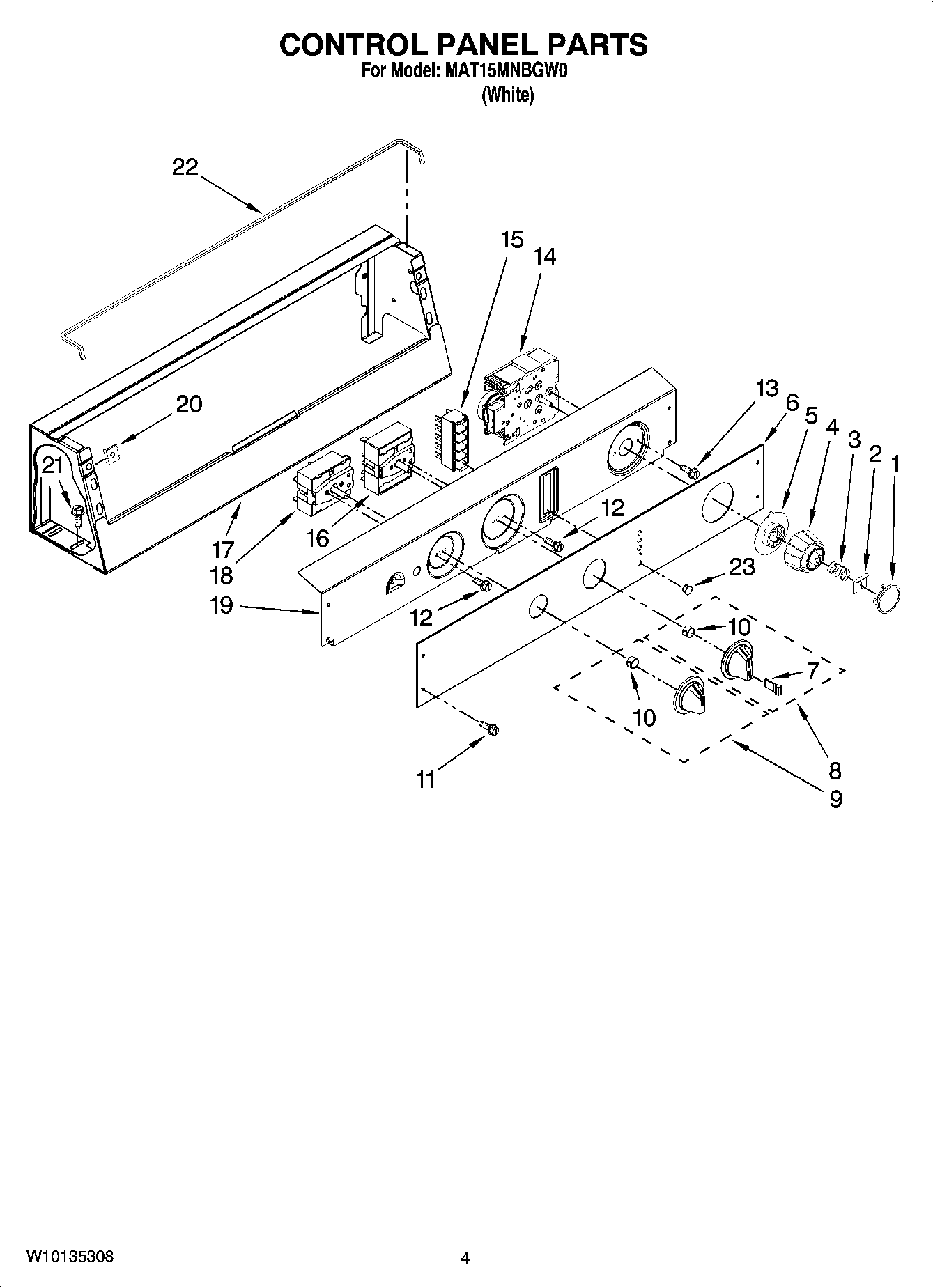

MAT15MNBGW0 02 – CONTROL PANEL PARTS

MAT15MNBGW0 02 – CONTROL PANEL PARTS

Written by

in

MAT15MNBGW0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	CAP, KNOB
2	MAY W10137328
3	MAY W10133497
4	MAY W10133500
5	MAY W10133496
6	MAY W10135342
7	MAY W10141516
8	MAY W10133503
9	MAY W10133504
10	MAY W10140928
11	MAY W10131119
12	SCREW
13	Screw, 10-32 x 5/8
14	MAY W10159946
15	MAY W10133276
16	MAY W10135589
17	MAY W10205150
18	MAY W10135588
19	MAY W10124212
20	NUT, "U"
21	SCREW
22	SEAL-FOAM (IEC)
23	INDICATOR LIGHTS ASSEMBLY
