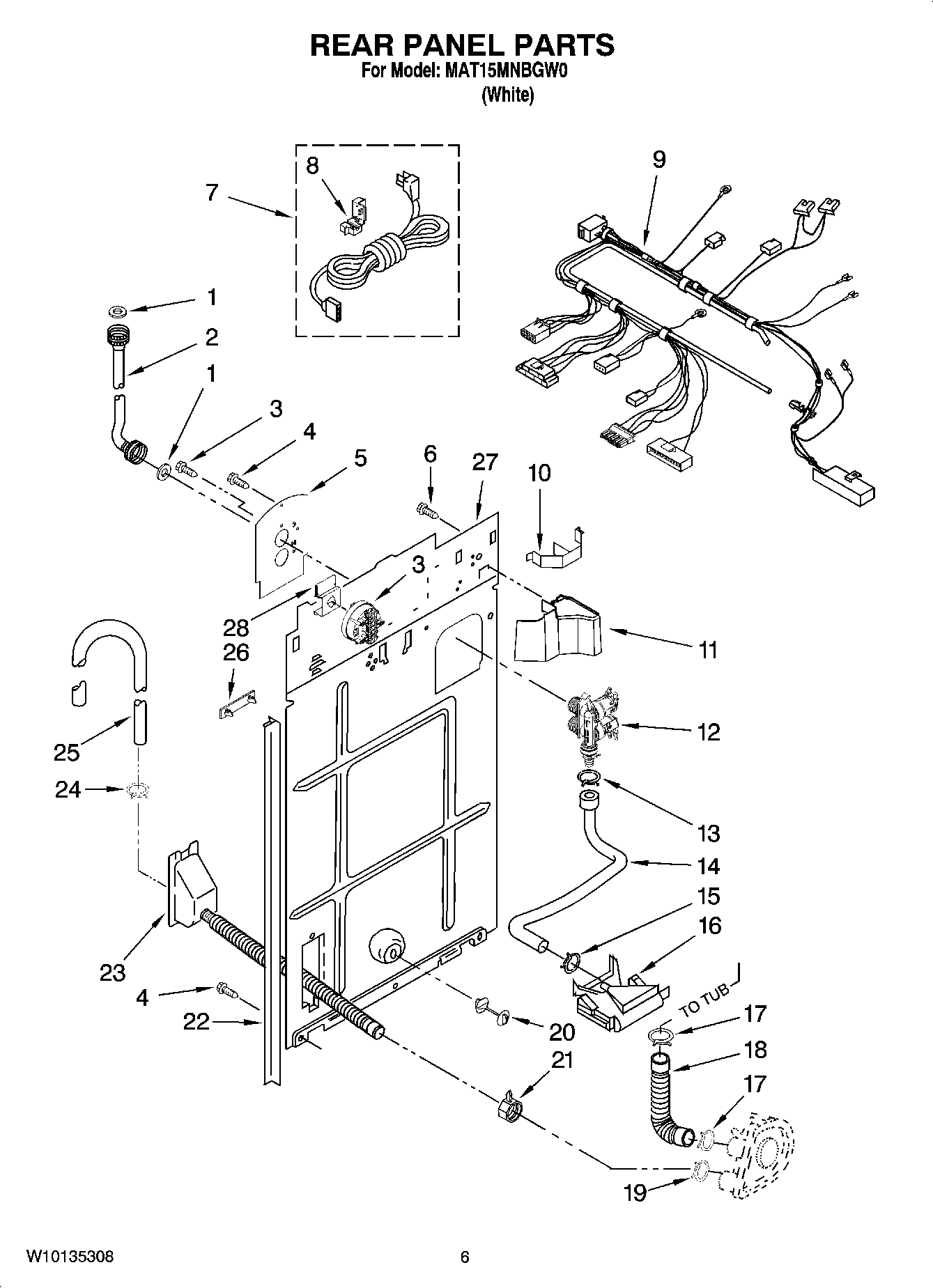

MAT15MNBGW0 03 – REAR PANEL PARTS

Products

PositionProduct
1ACCESSORY PARTS, WASHER, INLET HOSE
2Hose, Water Inlet (Blue)
2Hose, Water Inlet (Red)
3MAY W10153112
4Screw, Mixing Valve Mounting
5MAY 8541624
6SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
7MAY W10223809
7MAY W10223804
7MAY W10153836
7MAY W10162486
7MAY W10223807
8MAY 8559337
9MAY W10186656
10Clip, Harness & Pressure Switch
11MAY 8314879
12MAY 3360397
13MAY W10096851
14MAY 8541607
15MAY W10096852
16Thermister, Inlet
17MAY W10094820
18MAY W10116973
19MAY W10142630
20MAY 8519200
21Clamp, Hose
22MAY 3354204
23MAY W10180690
24MAY W10112110
25MAY W10141216
26Retainer, Harness
27MAY 3357978
28MAY W10133269
