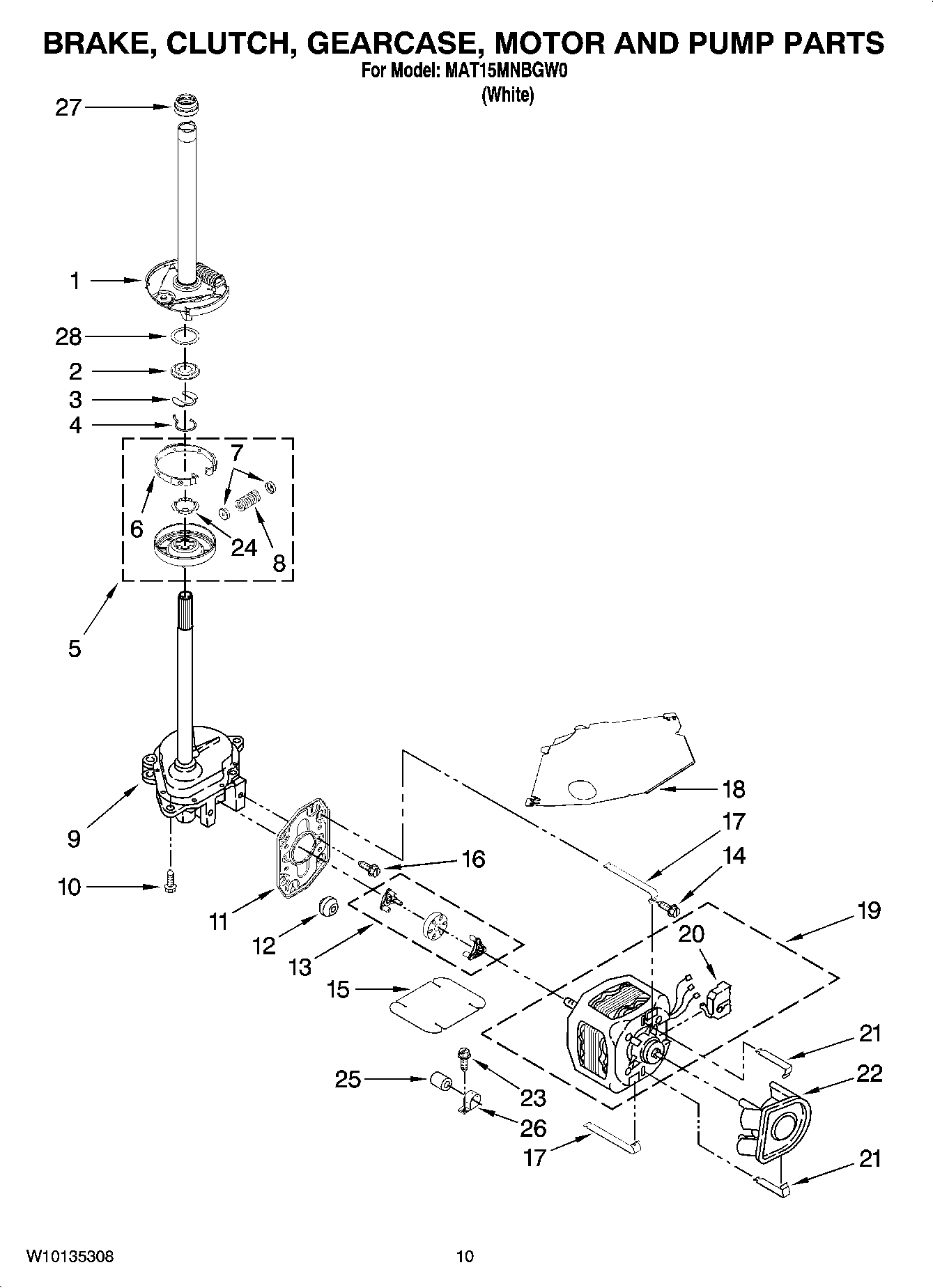

MAT15MNBGW0 05 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

MAT15MNBGW0 05 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

Written by

in

MAT15MNBGW0 05 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

Products

PositionProduct
NISLEEVE
1MAY W10117003
2MAY 63292
3MAY W10080230
4MAY 63283
5MAY W10135399
6MAY W10118761
7MAY 62646
8MAY 8559387
9MAY W10140302
10Screw, 5/16-24 x 5/8
11MAY 62611
12MAY 62691
13MAY 3978849
14MAY 3387485
15MAY 8316060
16MAY 3400516
17MAY W10086010
18MAY 3362089
19MAY 3950297
20MAY 3952056
21Retainer, Pump
22MAY 3363394
23Screw, Mixing Valve Mounting
24MAY 3355454
25MAY 8572719
26MAY W10083210
27MAY 8577374
28MAY 8578981
