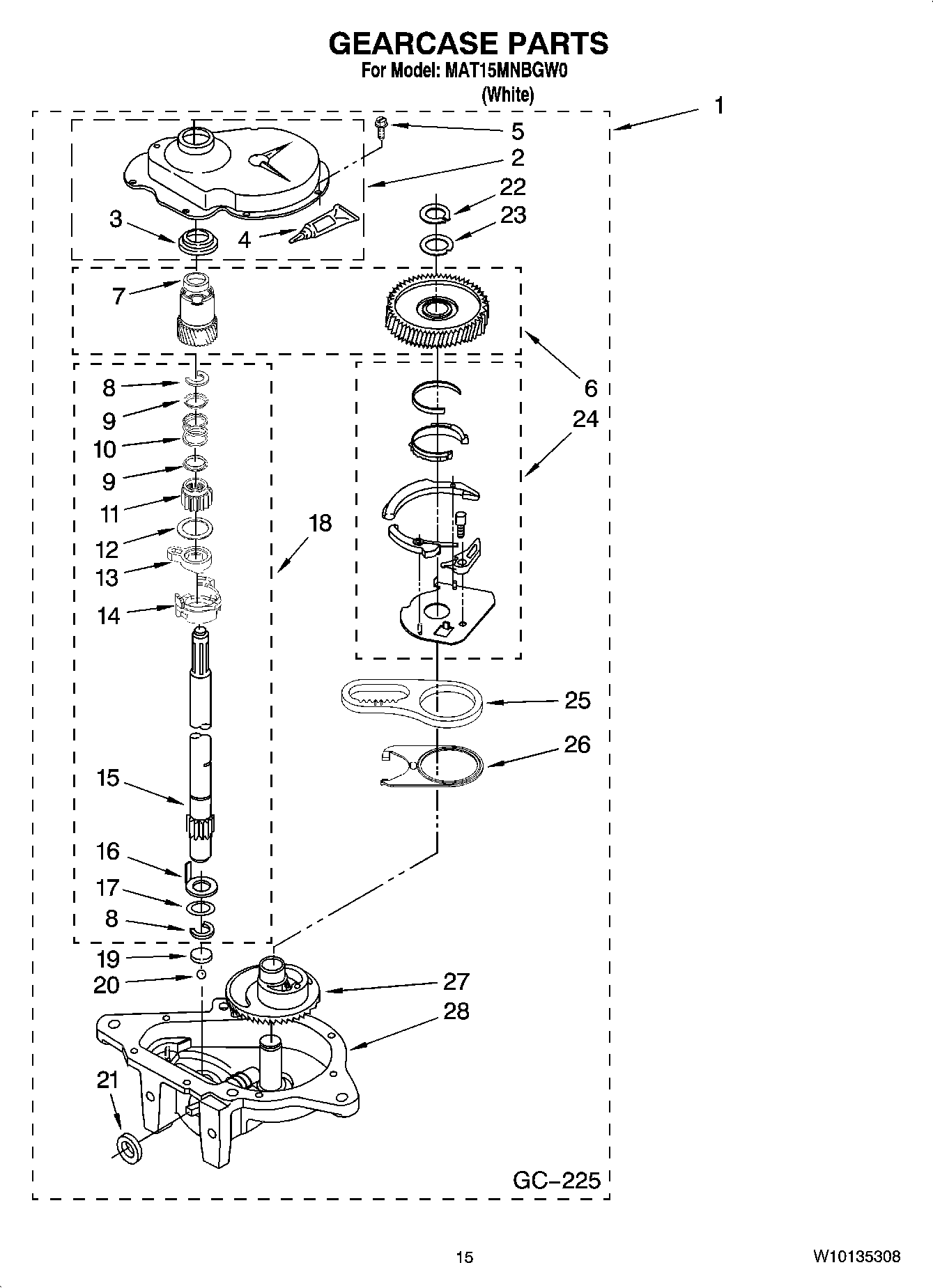

MAT15MNBGW0 09 – GEARCASE PARTS
Written by
in
MAT15MNBGW0 09 – GEARCASE PARTS
Products
Position
Product
1
MAY W10140302
2
MAY 285202
3
MAY 3349985
4
SEALER, GASKET (.20 FL. OZ.) (6ML)
5
Screw, Ground
6
MAY W10172898
8
MAY 90369
9
Retainer, Spring (2)
10
MAY 62676
11
GEAR, AGITATE
12
MAY 62619
13
MAY 62580
14
CAM, AGITATE
15
MAY 389231
16
MAY 62618
17
MAY 388815
18
SHAFT, AGITATOR COMPLETE
19
Bearing, Thrust (Includes 18)
20
Ball, Bearing (Includes 17)
21
MAY W10111745
22
MAY 3362552
23
MAY 285766
24
MAY 388253
25
MAY 8546456
26
MAY 62621
←
