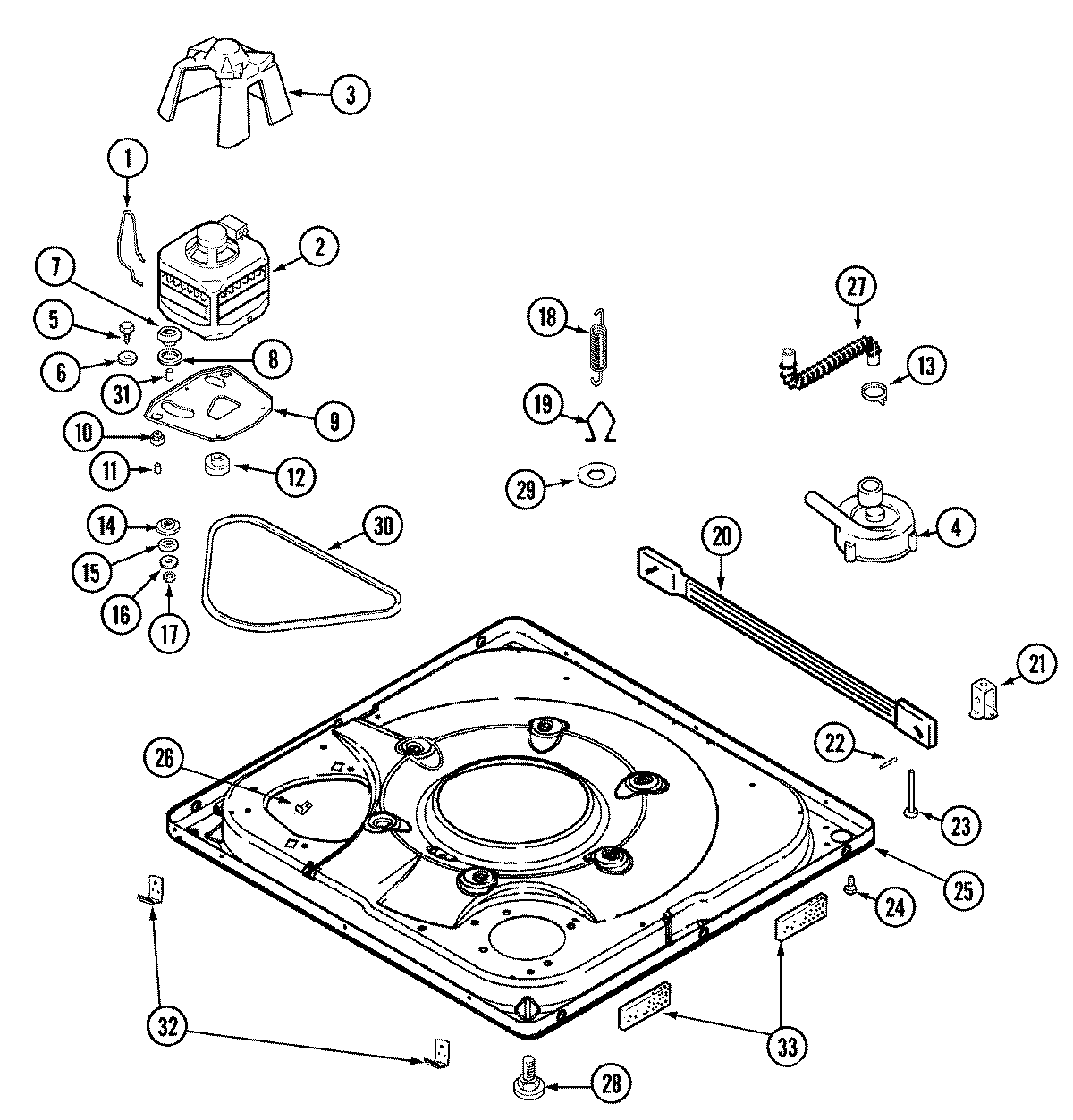

MAV8600AWQ 01 – BASE

Products

Position	Product
1	WP22004376 Whirlpool Spring Motor
3	MAY 22002721
4	WP35-6780 Whirlpool Water Pump
4	WP35-6465 Whirlpool Drain Pump
4	MAY 22004055
5	MAY 25-7833
6	MAY 25-7834
7	WP33-9946 Whirlpool Isolator
8	MAY 35-3570
9	MAY 21001366
9	MAY 35-2065
10	WP35-3646 Whirlpool Isolator
11	MAY 25-7831
12	WP21001950 Whirlpool Drive Motor
13	WP285655 Whirlpool Hose Clamp
14	SLIDE, MOTOR
15	WP33-9967 Whirlpool Washer Assembly
16	MAY 25-7047
17	WPY707702 Whirlpool Locknut
18	WP21001598 Whirlpool Suspension Spring
19	WP21001166 Whirlpool Hook
20	MAY 21001754
21	MAY 35-2046
22	MAY 35-2052
23	WP22004469 Whirlpool Leg Foot
25	MAY 22003390
25	MAY 22002781
25	MAY 22002841
26	SPEEDNUT, MOTOR
27	WP22003285 Whirlpool Hose Pump
28	FOOT & PAD ASSEMBLY (FRONT)
29	MAY Y25-7951
30	WP22003483 Whirlpool Drive Belt
31	MAY 25-7830
32	WP692771 Whirlpool Nut
32	MAY 22002239
32	SCREW, WATER VALVE BRACKET
33	MAY 22002782
