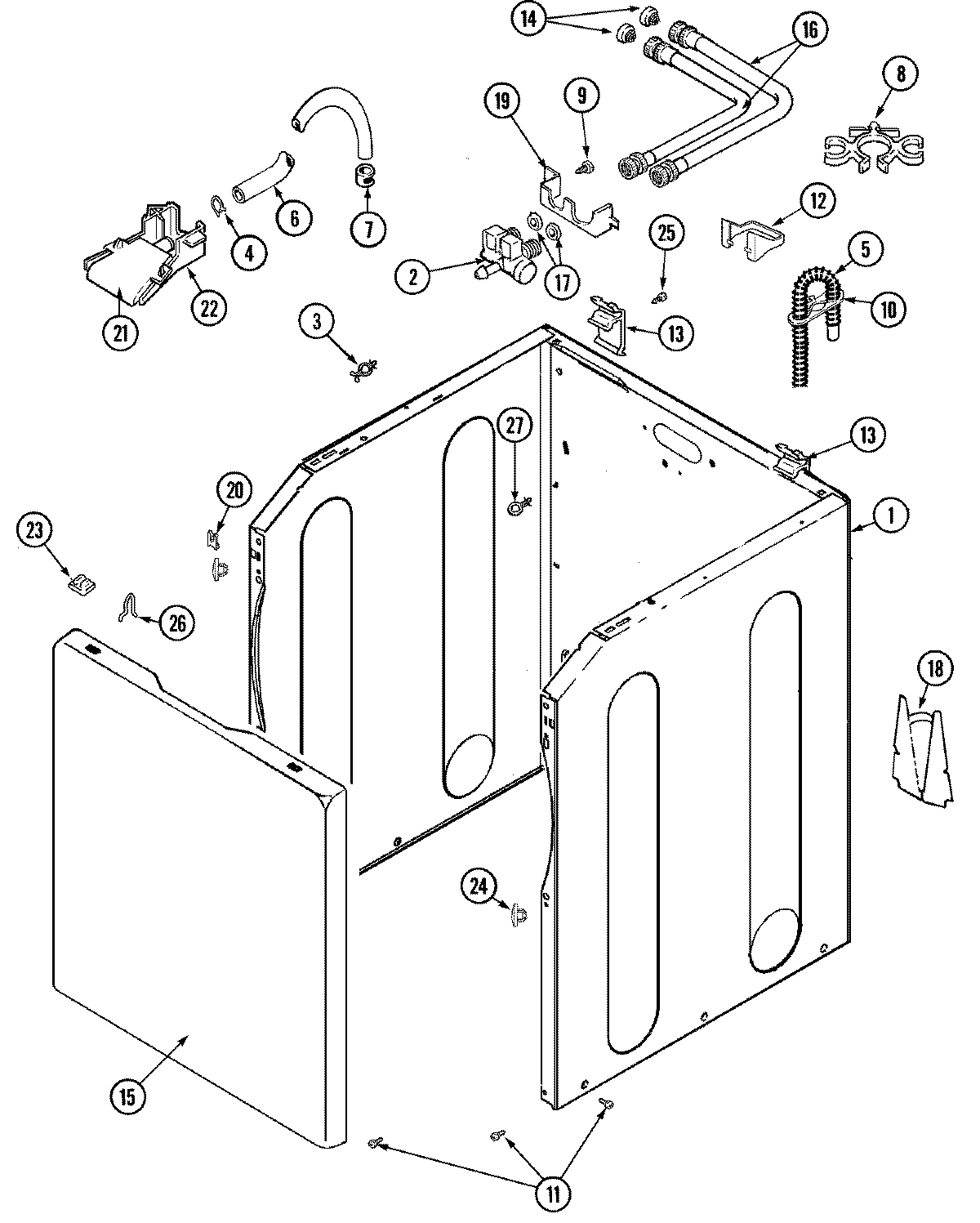

MAV8600AWQ 03 – CABINET (SER PRE 18 & AFTER)

MAV8600AWQ 03 – CABINET (SER PRE 18 & AFTER)

Written by

in

MAV8600AWQ 03 – CABINET (SER PRE 18 & AFTER)

Products

PositionProduct
1MAY 22002839
1MAY 22003554
1MAY 22003496
1(RT)
2MAY 22003372
3MAY 22002852
4CLAMP, SPRING—-S
5WP285655 Whirlpool Hose Clamp
5WP22003410 Whirlpool Drain Hose
6MAY 22002761
7WP596669 Whirlpool Hose Clamp
8WP22002765 Whirlpool Hose Clip
10MAY 22002701
11SCREW—-NA
12MAY 22003429
13MAY 22003367
14MAY 200961
15INSULATION, CABINET
15MAY 22002854
15MAY Y22002738
16MAY 22002763
16(COLD)
18SCREW, WATER VALVE BRACKET
18MAY 22002704
19MAY 22003376
20FASTENER, FRONT PANEL
21MAY 22003374
22MAY 22003375
23MAY 22002013
24MAY 22002965
25W11573574 Whirlpool Screw
26WP25-7220 Whirlpool Cabinet Clip
27MAY 22003086
28MAY Y013783
28W10850756 Whirlpool Screw
28MAY 33002388
28MAY 35-2890
28WP22002960 Whirlpool Washer Inlet Strainer
