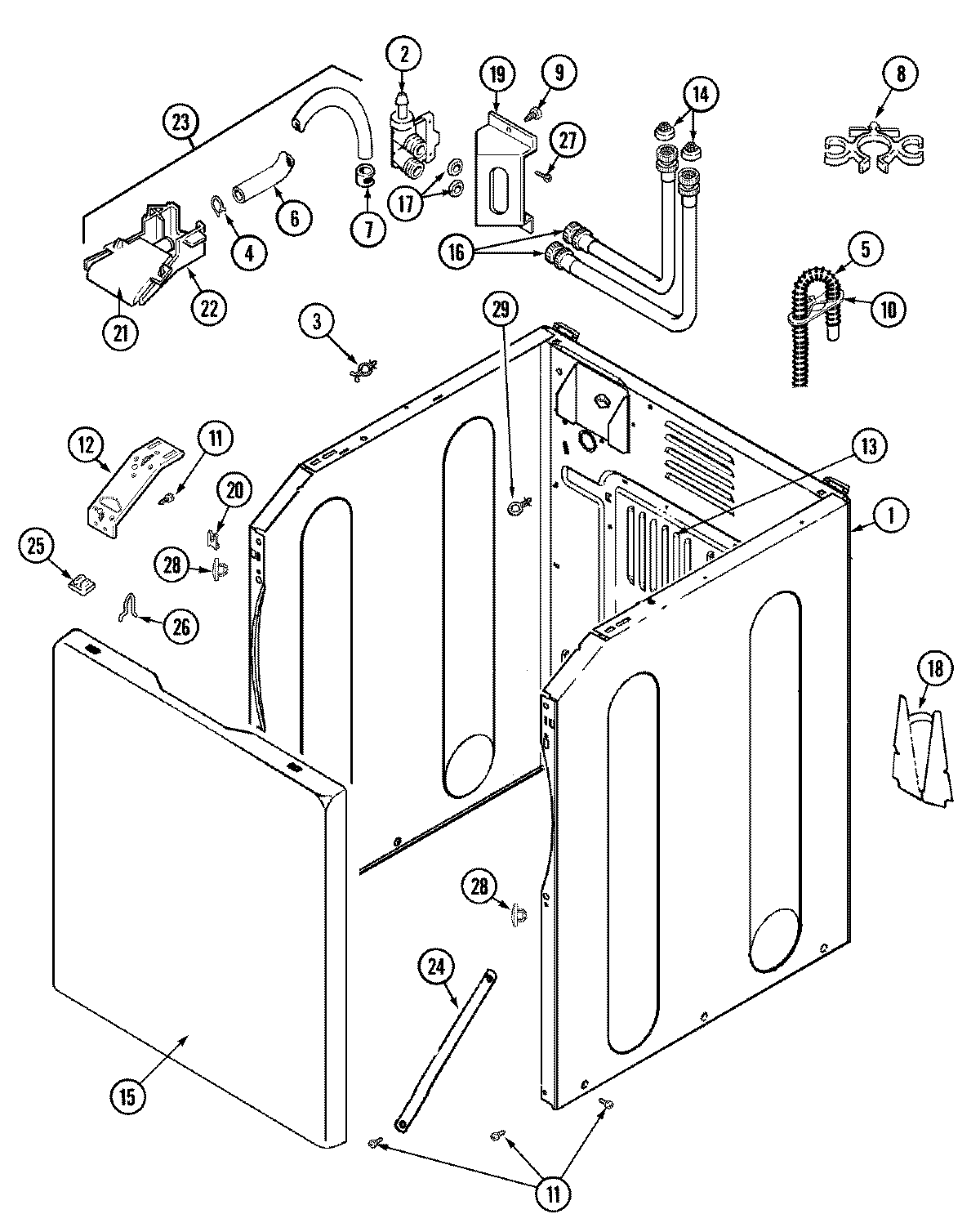

MAV8600AWW 02 – CABINET (PRIOR SER PRE 18)

MAV8600AWW 02 – CABINET (PRIOR SER PRE 18)

Written by

in

MAV8600AWW 02 – CABINET (PRIOR SER PRE 18)

Products

PositionProduct
1MAY 22002548
2WP22002708 Whirlpool Water Valve
3MAY 22002852
4CLAMP, SPRING—-S
5WP285655 Whirlpool Hose Clamp
5WP22003410 Whirlpool Drain Hose
576660 Whirlpool Syphon Break with Clamps
6MAY 22002761
7WP596669 Whirlpool Hose Clamp
8WP22002765 Whirlpool Hose Clip
9SCREW, WATER VALVE BRACKET
10MAY 22002701
11W11573574 Whirlpool Screw
12MAY 22002839
12(RT)
13MAY 22002092
14MAY 200961
15MAY 22002737
16MAY 35-3401
16FILL HOSE 5' W/WASHER
18MAY 22002704
19MAY 22002762
20FASTENER, FRONT PANEL
21MAY 22002759
22MAY 22002760
23MAY 22002722
24MAY 22002767
25MAY 22002013
26WP25-7220 Whirlpool Cabinet Clip
27SCREW, WATER VALVE
28MAY 22002965
29MAY 22003086
30MAY 33002388
30WP22002960 Whirlpool Washer Inlet Strainer
30MAY Y013783
30MAY 35-2890
30W10850756 Whirlpool Screw
30MAY 22002702
