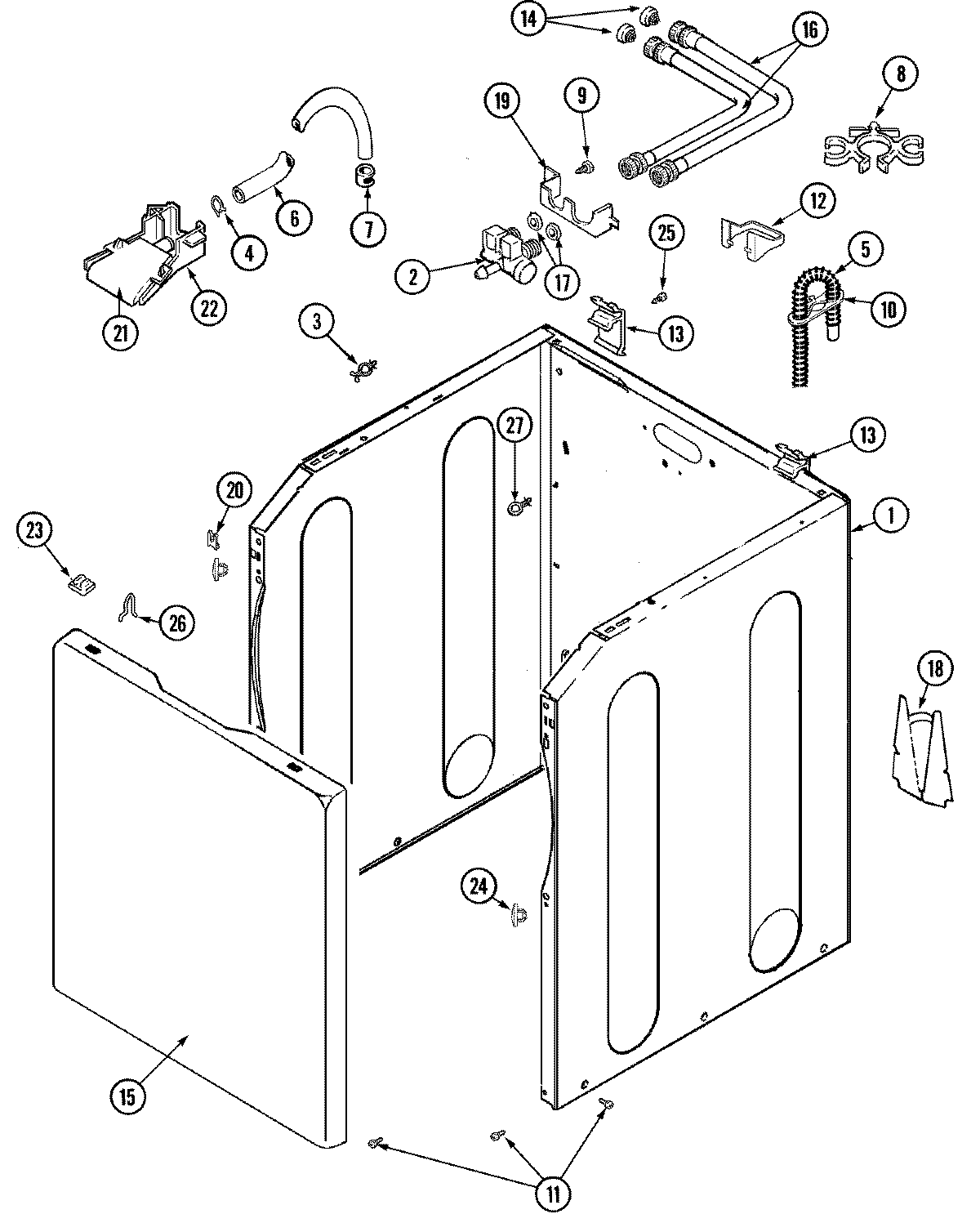

MAV8757AWQ 02 – CABINET

Products

Position	Product
1	MAY 22003554
1	(RT)
1	MAY 22002839
2	MAY 22003372
3	MAY 22002852
4	CLAMP, SPRING—-S
5	WP285655 Whirlpool Hose Clamp
5	WP22003410 Whirlpool Drain Hose
6	MAY 22002761
7	WP596669 Whirlpool Hose Clamp
8	WP22002765 Whirlpool Hose Clip
10	MAY 22002701
11	SCREW—-NA
12	MAY 22003429
13	MAY 22003367
14	MAY 200961
15	MAY 22002854
15	INSULATION, CABINET
15	MAY Y22002738
16	WP22002960 Whirlpool Washer Inlet Strainer
16	MAY 22002763
16	(COLD)
17	MAY Y013783
18	SCREW, WATER VALVE BRACKET
18	MAY 22002704
19	MAY 22003376
20	FASTENER, FRONT PANEL
21	MAY 22003374
22	MAY 22004053
22	MAY 22003375
23	MAY 22002013
24	MAY 22002965
25	W11573574 Whirlpool Screw
26	MAY 22003086
26	WP25-7220 Whirlpool Cabinet Clip
