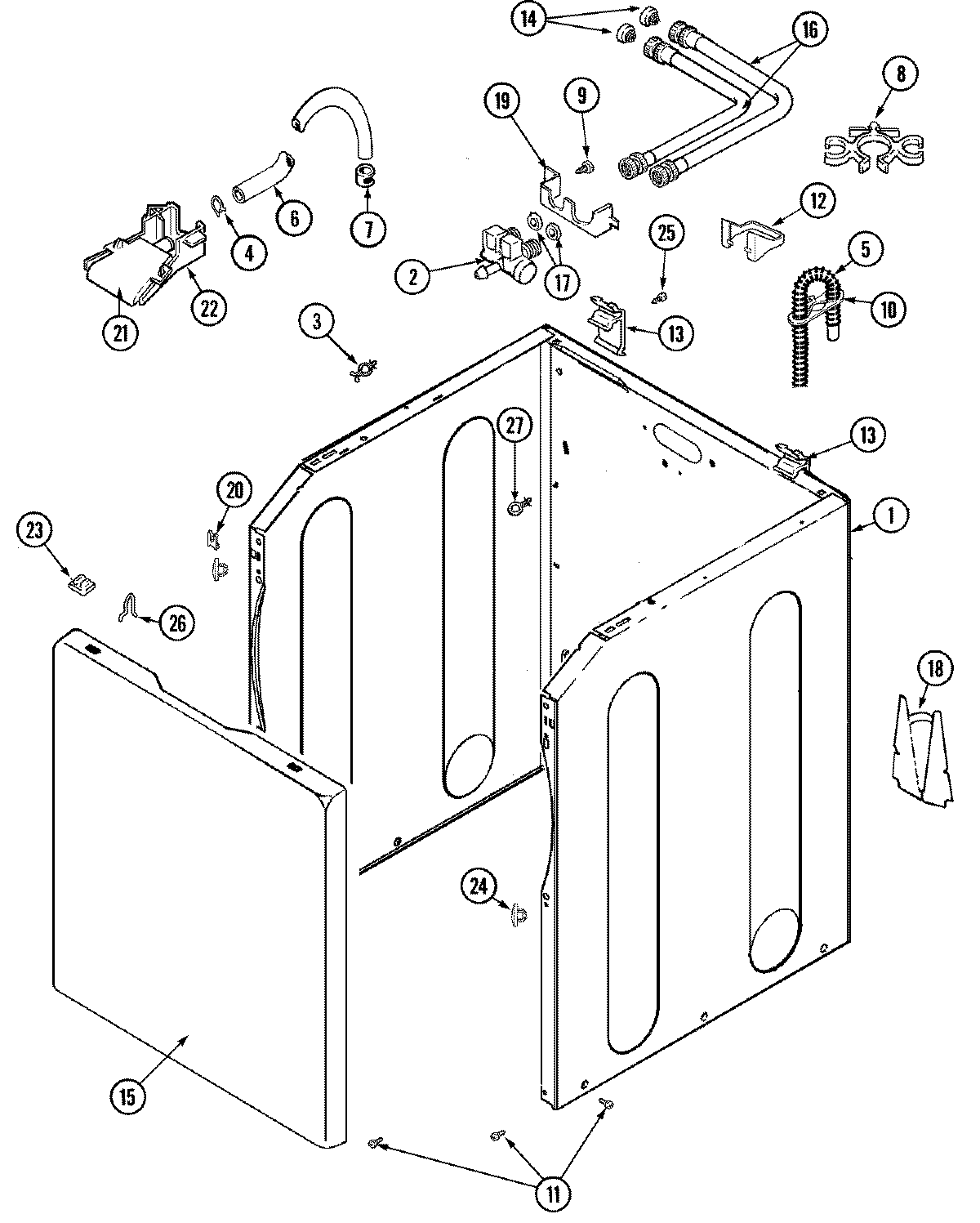

MAV8757AWW 02 – CABINET

MAV8757AWW 02 – CABINET

Written by

in

MAV8757AWW 02 – CABINET

Products

PositionProduct
1(RT)
1MAY 22002839
1MAY 22003553
2MAY 22003372
3MAY 22002852
4CLAMP, SPRING—-S
5WP285655 Whirlpool Hose Clamp
5WP22003410 Whirlpool Drain Hose
6MAY 22002761
7WP596669 Whirlpool Hose Clamp
8WP22002765 Whirlpool Hose Clip
10MAY 22002701
11SCREW—-NA
12MAY 22003429
13MAY 22003367
14MAY 200961
15INSULATION, CABINET
15MAY 22002854
15MAY 22002737
16(COLD)
16WP22002960 Whirlpool Washer Inlet Strainer
16MAY 22002763
17MAY Y013783
18SCREW, WATER VALVE BRACKET
18MAY 22002704
19MAY 22003376
20FASTENER, FRONT PANEL
21MAY 22003374
22MAY 22004053
22MAY 22003375
23MAY 22002013
24MAY 22002965
25W11573574 Whirlpool Screw
26MAY 22003086
26WP25-7220 Whirlpool Cabinet Clip
