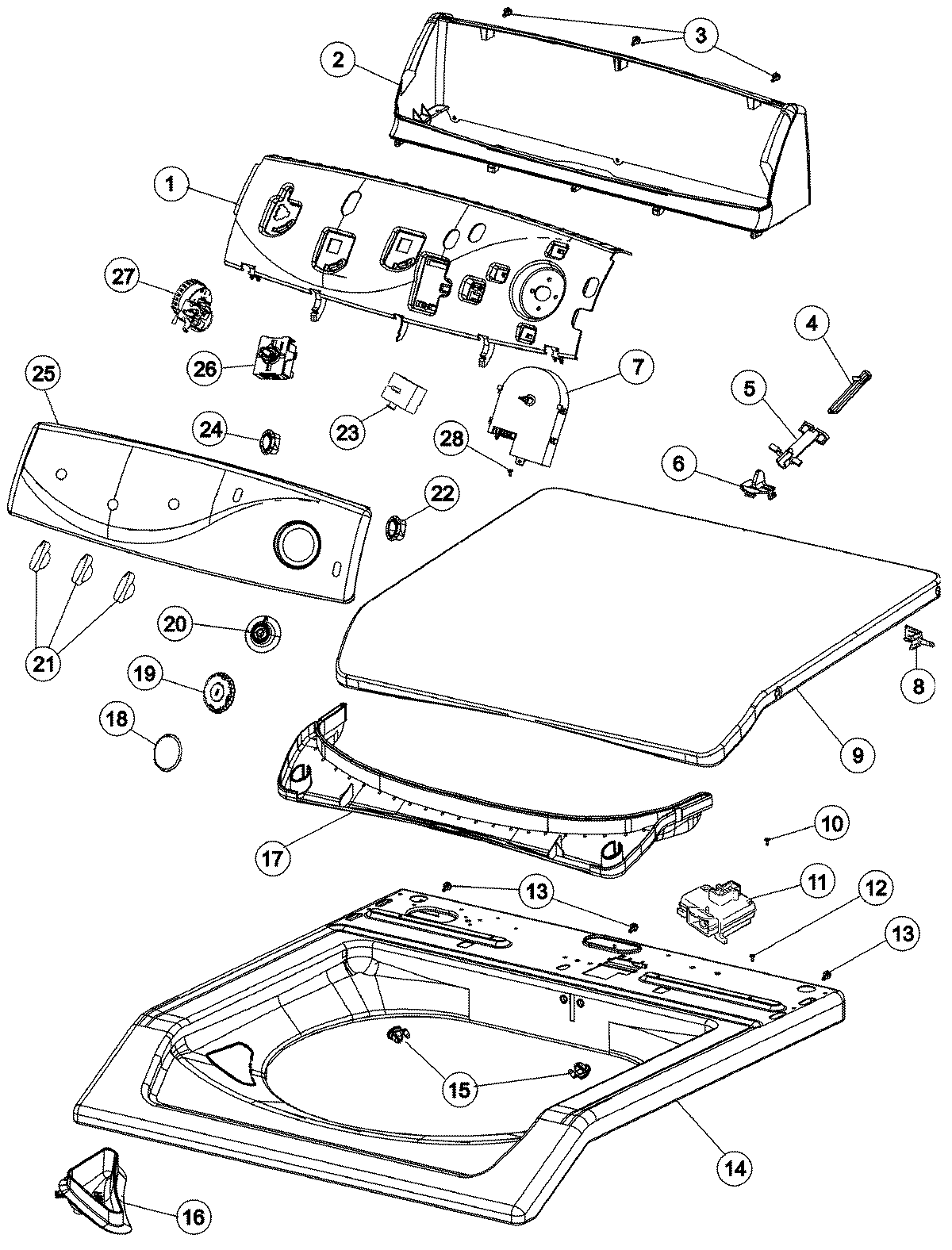

MAV9504EWQ 03 – CONTROL PANEL & TOP

MAV9504EWQ 03 – CONTROL PANEL & TOP

Written by

in

MAV9504EWQ 03 – CONTROL PANEL & TOP

Products

PositionProduct
1MAY 22003955
2MAY 22003975
4WP22002754 Whirlpool Plunger
5WP22002757 Whirlpool Guide Tube
6MAY 22003942
7MAY 22004073
8MAY 22002752
9MAY 22004064
10SCREW/WASHER (GUIDE TUBE)
11SWITCH-LID
12MAY 22003817
138534058 Whirlpool Refrigerator Screw
14MAY 22003469
15MAY 22002753
16MAY 22004381
16MAY 22004382
16WP22002835 Whirlpool Cup
17MAY 22002766
18WP22003989 Whirlpool Insert Assembly
19MAY 22003952
20MAY 22004166
21WP22003987 Whirlpool Knob Control
22MAY 22003982
23MAY 22003994
247403P984-60 Whirlpool RO Switch
25MAY 22004342
26MAY 22004337
27WP22004072 Whirlpool Infinite Switch
28WP3400065 Whirlpool Refrigerator Screw
