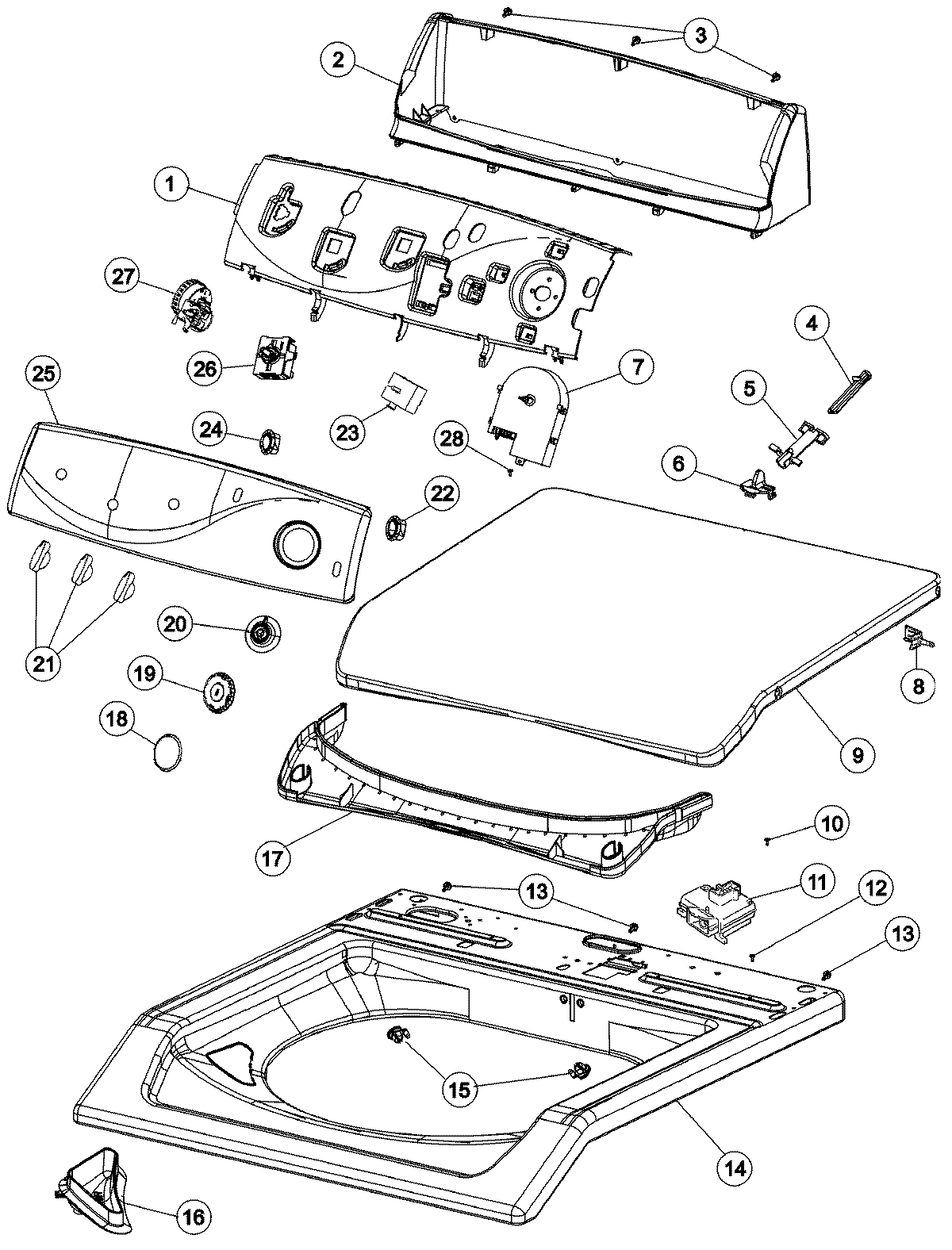

MAV9504EWW 03 – CONTROL PANEL & TOP

Products

Position	Product
1	MAY 22003955
2	MAY 22003960
4	WP22002754 Whirlpool Plunger
5	WP22002757 Whirlpool Guide Tube
6	W10814230 Whirlpool Washer Lid Cam (White)
7	MAY 22004073
8	WP22002751 Whirlpool Hinge
9	MAY 22004063
10	SCREW/WASHER (GUIDE TUBE)
11	SWITCH-LID
12	MAY 22003817
13	8534058 Whirlpool Refrigerator Screw
14	MAY 22003468
15	MAY 22002753
16	WP22002835 Whirlpool Cup
16	MAY 22004382
16	MAY 22004381
17	MAY 22002967
18	WP22003989 Whirlpool Insert Assembly
19	WP22003993 Whirlpool Timer Knob
20	MAY 22004165
21	WP22003987 Whirlpool Knob Control
22	MAY 22003981
23	MAY 22003994
24	WP74010226 Whirlpool RO Switch
25	MAY 22004341
26	MAY 22004337
27	WP22004072 Whirlpool Infinite Switch
28	WP3400065 Whirlpool Refrigerator Screw
