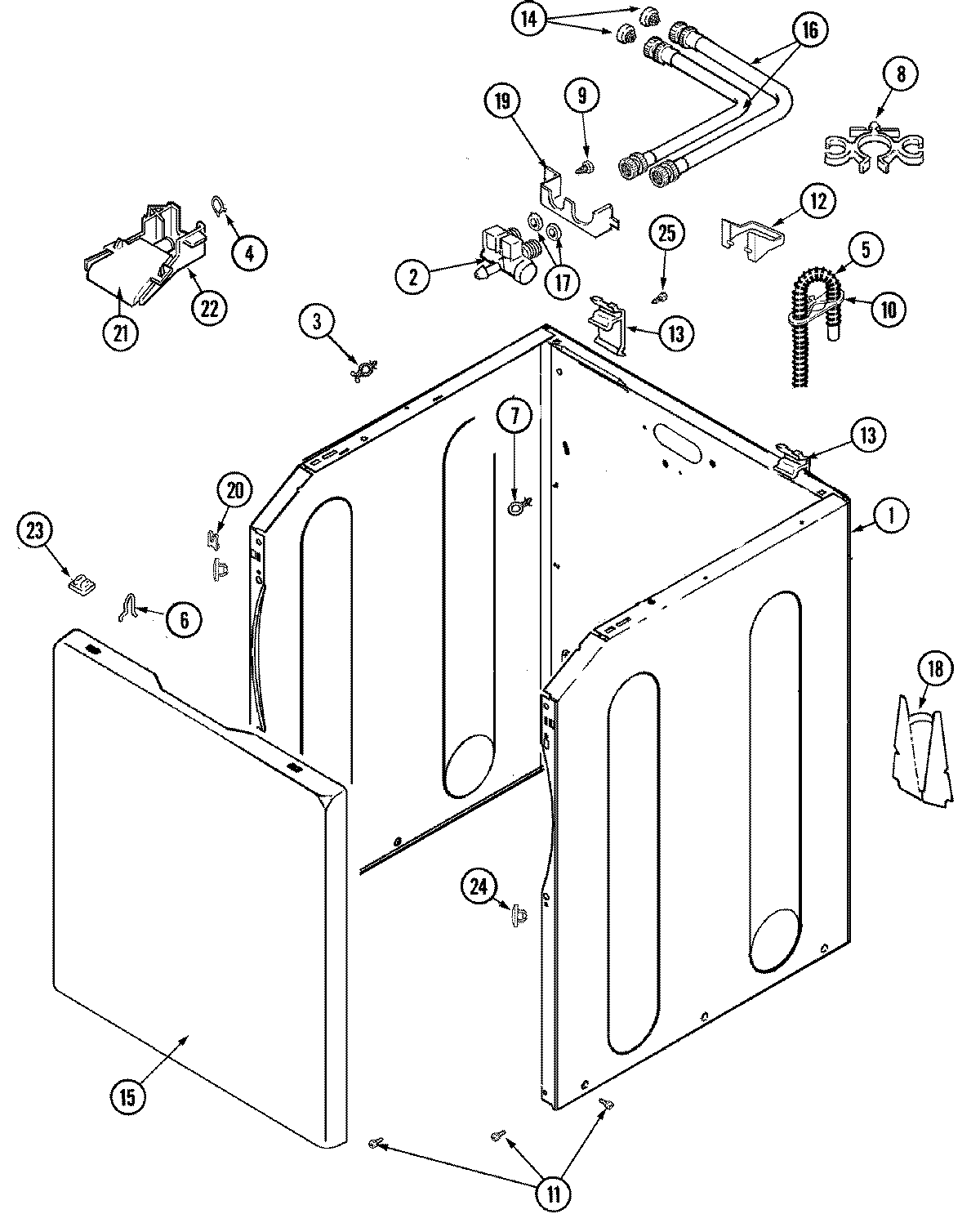

MAV9750AWQ 02 – CABINET

Products

PositionProduct
1MAY 22002839
1(RT)
1MAY 22003554
2W10821146 Whirlpool Valve Assembly
2WP22004333 Whirlpool Water Valve
3MAY 22002852
4CLAMP, SPRING—-S
5WP285655 Whirlpool Hose Clamp
576660 Whirlpool Syphon Break with Clamps
5WP22003410 Whirlpool Drain Hose
6WP25-7220 Whirlpool Cabinet Clip
7MAY 22003086
8WP22002765 Whirlpool Hose Clip
10MAY 22003814
11SCREW—-NA
12MAY 22003429
13MAY 22003367
14MAY 200961
15MAY 22003511
15MAY Y22002738
16FILL HOSE 5' W/WASHER
16MAY 35-3401
18MAY 22002704
18SCREW, WATER VALVE BRACKET
19MAY 22003376
20FASTENER, FRONT PANEL
21MAY 22004053
23MAY 22002013
24MAY 22002965
25W11573574 Whirlpool Screw
26MAY 35-2890
26MAY 33002388
26WP22002960 Whirlpool Washer Inlet Strainer
26W10850756 Whirlpool Screw
26MAY Y013783
