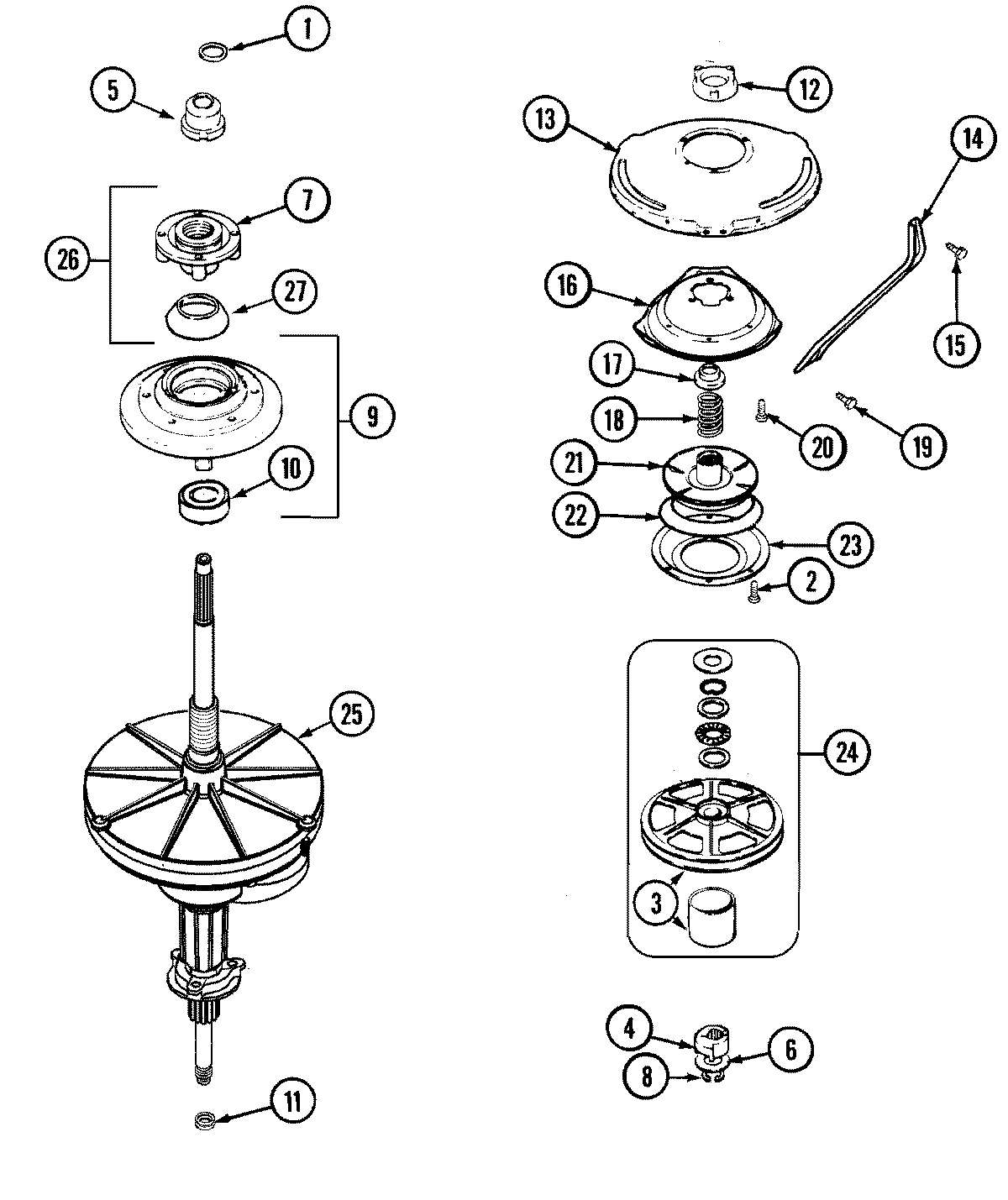

MAV9750AWW 06 – TRANSMISSION

Products

Position	Product
1	MAY 25-7941
2	WP21001065 Whirlpool Screw
3	12002213 Whirlpool Washer Pulley and Thrust Bearing Kit
5	MAY 21001533
6	MAY 35-2132
6	MAY 35-2082
7	22003595 Whirlpool Isolator Gasket
7	MAY 21001515
7	MAY 22003378
8	WP25-7854 Whirlpool Clip
9	TUB SEAL ASSEMBLY--W (INCL TUB SEAL, TUB GASKET
11	MAY 35-2010
12	MAY 21001511
12	MAY 35-2205
13	MAY 21001518
14	MAY 21001532
15	MAY 25-7895
16	MAY 21001163
17	MAY 35-2017
18	WP21001910 Whirlpool Spring
19	MAY 25-7930
20	WP21001509 Whirlpool Screw
21	MAY 35-2948
22	WP21002026 Whirlpool Snubber Assembly
23	MAY 35-2018
25	TRANSMISSION ASSY.(DUAL DRIVE) COMPONENTS OF THIS ASSEMBLY
25	MAY 21001867
26	MAY 21001868
26	MAY 21001508
27	MAY 35-2974
