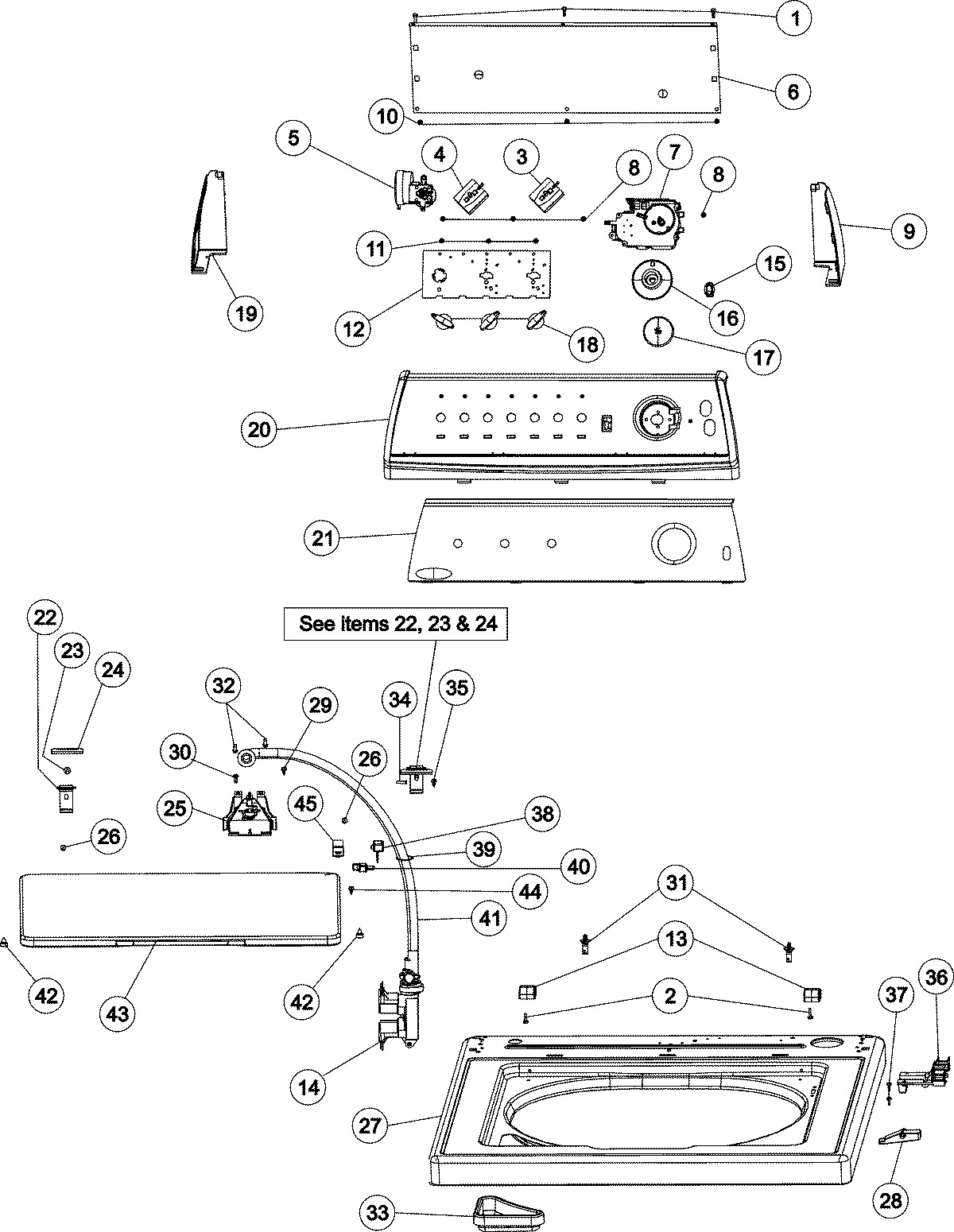

MAVT236AWW 03 – CONTROL PANEL & TOP

Products

Position	Product
1	MAY 21002224
3	MAY 21001139
4	MAY 31001443
5	MAY Y2201474
6	MAY 21001527
7	MAY 21002232
9	MAY 21001523
12	MAY 21002067
13	HINGE-LID
14	WP21001932 Whirlpool Dishwasher Water Valve
15	MAY 21002069
16	MAY 21001984
17	WP21001985 Whirlpool Timer Knob
18	WP21002070 Whirlpool Selector Knob
19	MAY 21001519
20	MAY 21001965
21	MAY 21002139
22	35-2846 Whirlpool Hinge
23	SCREW
24	MAY 35-4128
25	MAY 21001760
26	WP25-7893 Whirlpool Screw
27	MAY 21001602
28	MAY 21001134
29	WP90767 Whirlpool Screw
30	MAY 31001560
31	MAY 21001857
33	MAY 21001597
34	MAY 25-7438
36	WP21001135 Whirlpool Housing
37	MAY 21001136
38	WP43-0057 Whirlpool Lid Switch Actuator
39	MAY 25-7430
40	WP35-2045 Whirlpool Hinge Pin
41	12002749 Whirlpool Flume Hose Kit
42	MAY 35-0581
43	MAY 35-2026
45	MAY 21001148
