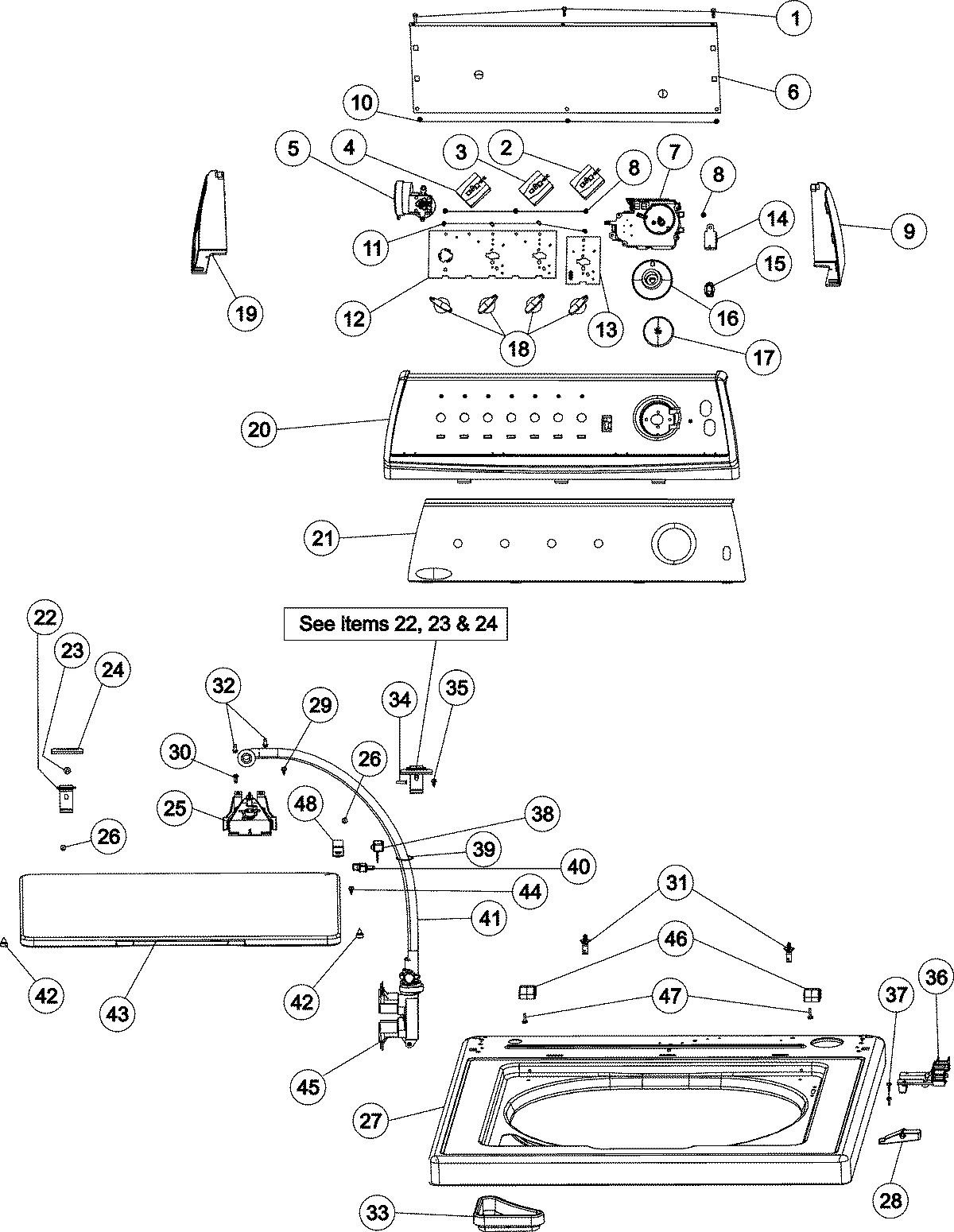

MAVT346AWW 03 – CONTROL PANEL & TOP
Written by
in
MAVT346AWW 03 – CONTROL PANEL & TOP
Products
Position
Product
1
MAY 21002224
2
MAY 31001443
3
MAY 21002028
4
MAY 31001190
5
MAY Y2201474
6
MAY 21001527
7
MAY 21002232
9
MAY 21001523
12
MAY 21002067
13
MAY 21001517
14
MAY 53-1639
15
MAY 21002069
16
MAY 21001984
17
WP21001985 Whirlpool Timer Knob
18
WP21002070 Whirlpool Selector Knob
19
MAY 21001519
20
MAY 21001965
21
MAY 21002118
22
35-2846 Whirlpool Hinge
23
SCREW
24
MAY 35-4128
25
MAY 21002032
27
MAY 21001602
28
MAY 21001134
29
WP90767 Whirlpool Screw
30
MAY 31001560
31
MAY 21001857
33
MAY 21001597
34
MAY 25-7438
36
WP21001135 Whirlpool Housing
37
MAY 21001136
38
WP43-0057 Whirlpool Lid Switch Actuator
39
MAY 25-7430
40
WP35-2045 Whirlpool Hinge Pin
41
12002749 Whirlpool Flume Hose Kit
42
MAY 35-0581
43
MAY 35-2026
45
WP21001932 Whirlpool Dishwasher Water Valve
46
HINGE-LID
47
WP25-7893 Whirlpool Screw
48
MAY 21001148
←
