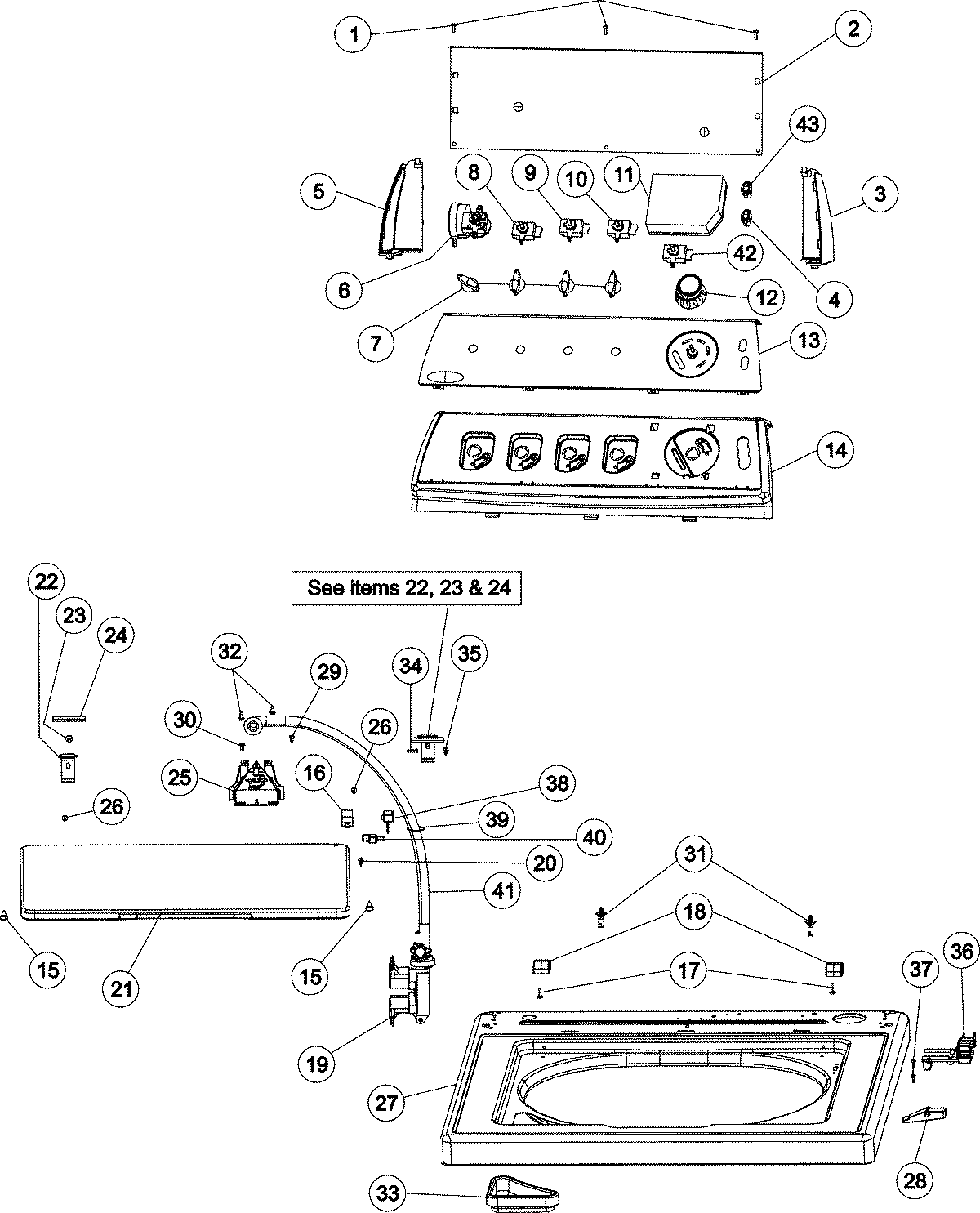

MAVT546EWW 03 – CONTROL PANEL & TOP

Products

Position	Product
1	MAY 21002224
2	MAY 21001527
3	MAY 21001523
4	MAY 21002080
5	MAY 21001519
6	MAY Y2201474
7	WP21002070 Whirlpool Selector Knob
8	MAY 37001265
10	MAY 21002198
11	WP21002238 Whirlpool Electronic Control Board
13	MAY 12002666
14	MAY 37001166
15	MAY 35-0581
16	MAY 21001148
18	HINGE-LID
19	MAY 21001827
21	MAY 35-2026
22	35-2846 Whirlpool Hinge
23	SCREW
24	MAY 35-4128
25	MAY 21001760
26	WP25-7893 Whirlpool Screw
27	MAY 21001602
28	MAY 21001134
29	WP90767 Whirlpool Screw
30	MAY 31001560
31	MAY 21001857
33	MAY 21001597
34	MAY 25-7438
36	WP21001135 Whirlpool Housing
37	MAY 21001136
38	WP43-0057 Whirlpool Lid Switch Actuator
39	MAY 25-7430
40	WP35-2045 Whirlpool Hinge Pin
41	12002749 Whirlpool Flume Hose Kit
42	MAY 37001266
43	MAY 21002069
