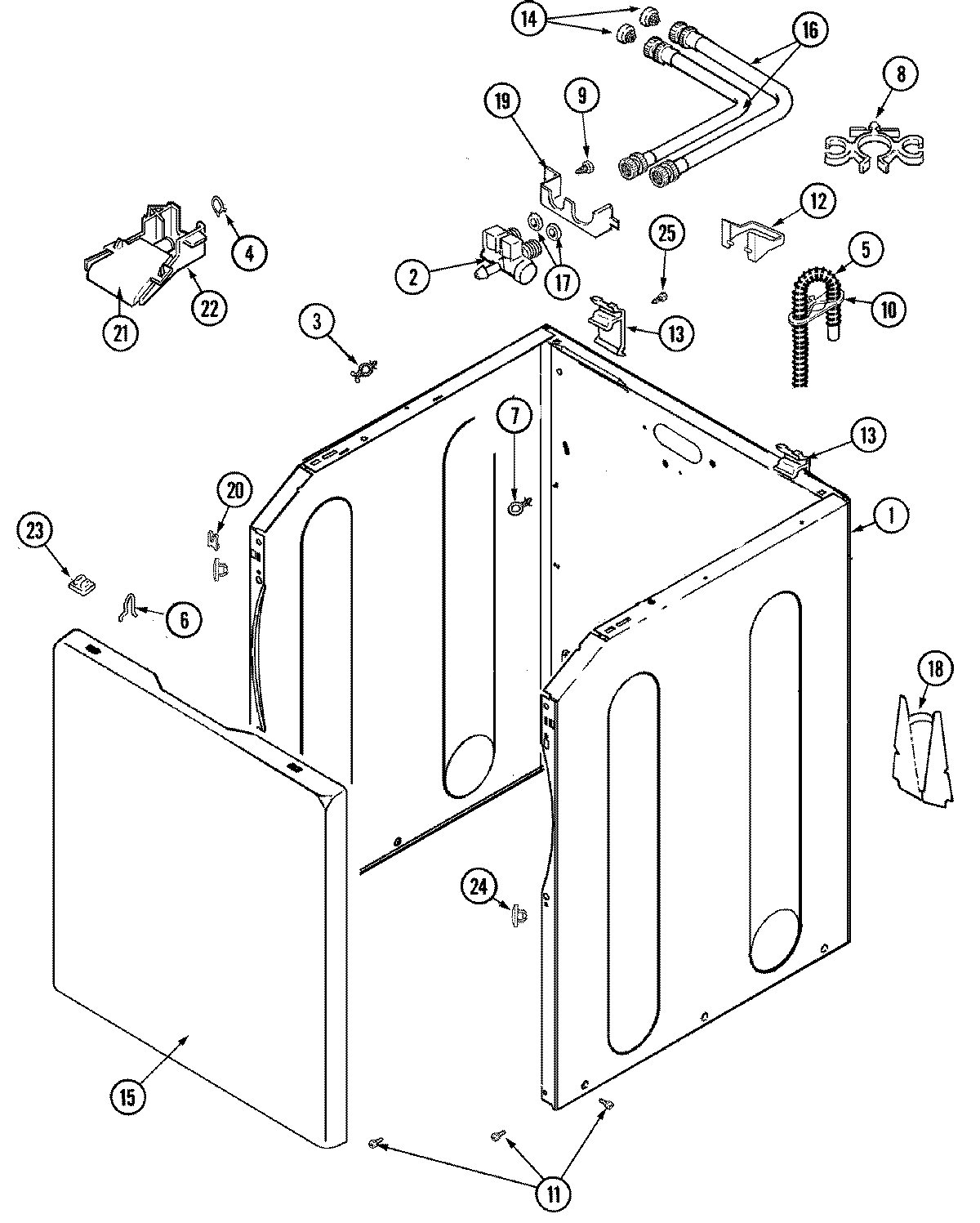

MAVT634AWW 02 – CABINET

Products

Position	Product
1	(RT)
1	MAY 22002839
1	MAY 22003553
2	WP22004333 Whirlpool Water Valve
2	W10821146 Whirlpool Valve Assembly
3	MAY 22003298
4	CLAMP, SPRING—-S
5	WP285655 Whirlpool Hose Clamp
5	WP22003410 Whirlpool Drain Hose
6	WP25-7220 Whirlpool Cabinet Clip
7	MAY 22003086
8	WP22002765 Whirlpool Hose Clip
9	MAY 22003735
10	MAY 22003814
11	SCREW—-NA
12	MAY 22003429
13	MAY 22003367
14	MAY 200961
15	MAY 22002737
15	MAY 22003512
15	MAY 22003511
16	MAY 35-3401
16	FILL HOSE 5' W/WASHER
18	MAY 22002704
18	SCREW, WATER VALVE BRACKET
19	MAY 22003376
20	MAY 213280
21	MAY 22004053
22	MAY 22003374
23	MAY 22002013
24	MAY 22002965
25	W11573574 Whirlpool Screw
26	MAY 35-2890
26	MAY 33002388
26	WP22002960 Whirlpool Washer Inlet Strainer
26	W10850756 Whirlpool Screw
26	MAY Y013783
