MAVT834AWQ 03 – CONTROL PANEL

MAVT834AWQ 03 – CONTROL PANEL

Written by

in

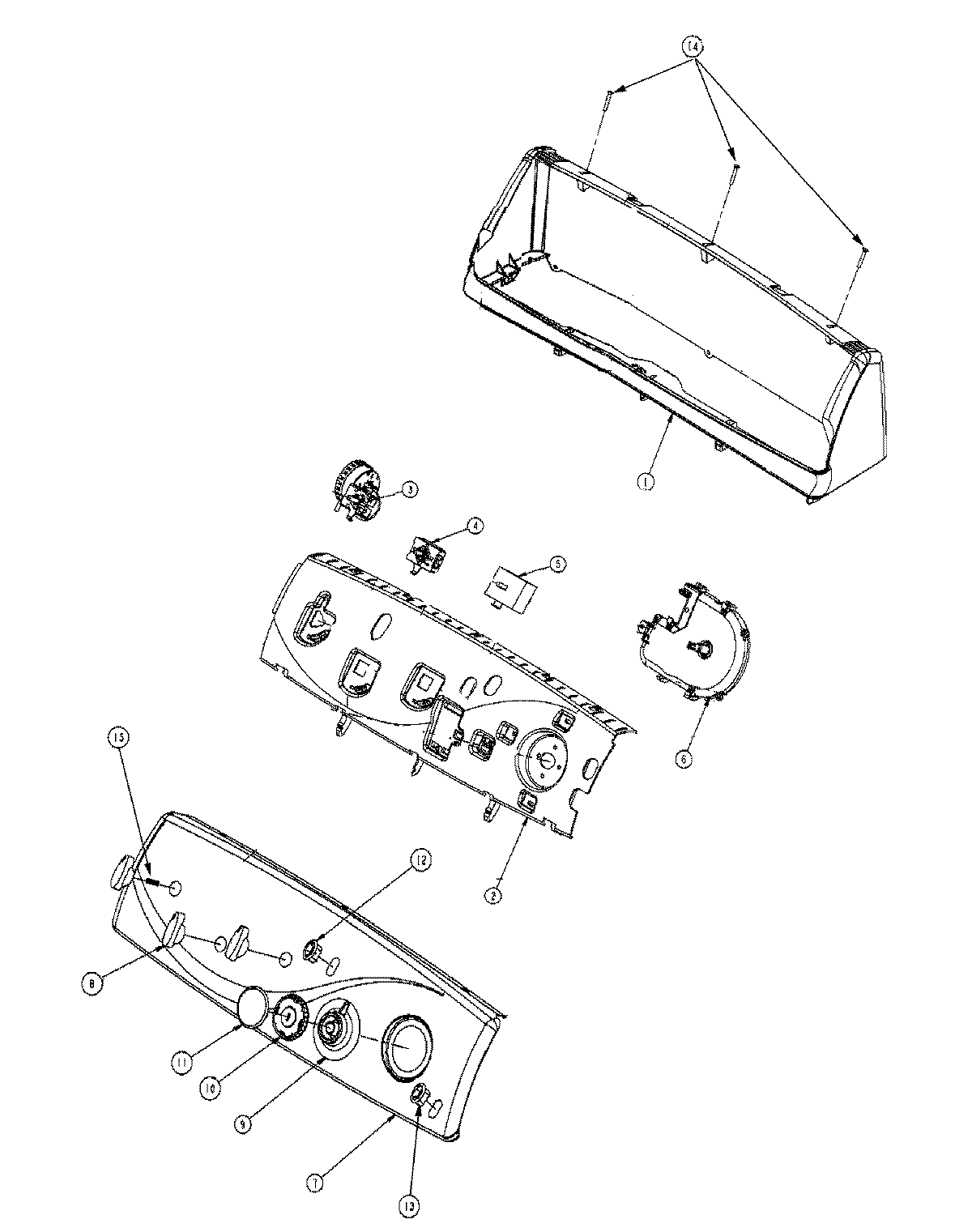

MAVT834AWQ 03 – CONTROL PANEL

Products

PositionProduct
1MAY 22003975
2MAY 22003955
3MAY 22004200
3MAY 22003964
4MAY 22004012
5MAY 22004004
6MAY 22004323
6MAY 22004014
6WP3400065 Whirlpool Refrigerator Screw
7MAY 22004026
8WP22003987 Whirlpool Knob Control
9MAY 22003954
10MAY 22003952
11WP22003989 Whirlpool Insert Assembly
127403P984-60 Whirlpool RO Switch
13MAY 22003982
148534058 Whirlpool Refrigerator Screw
15MAY 22004050
