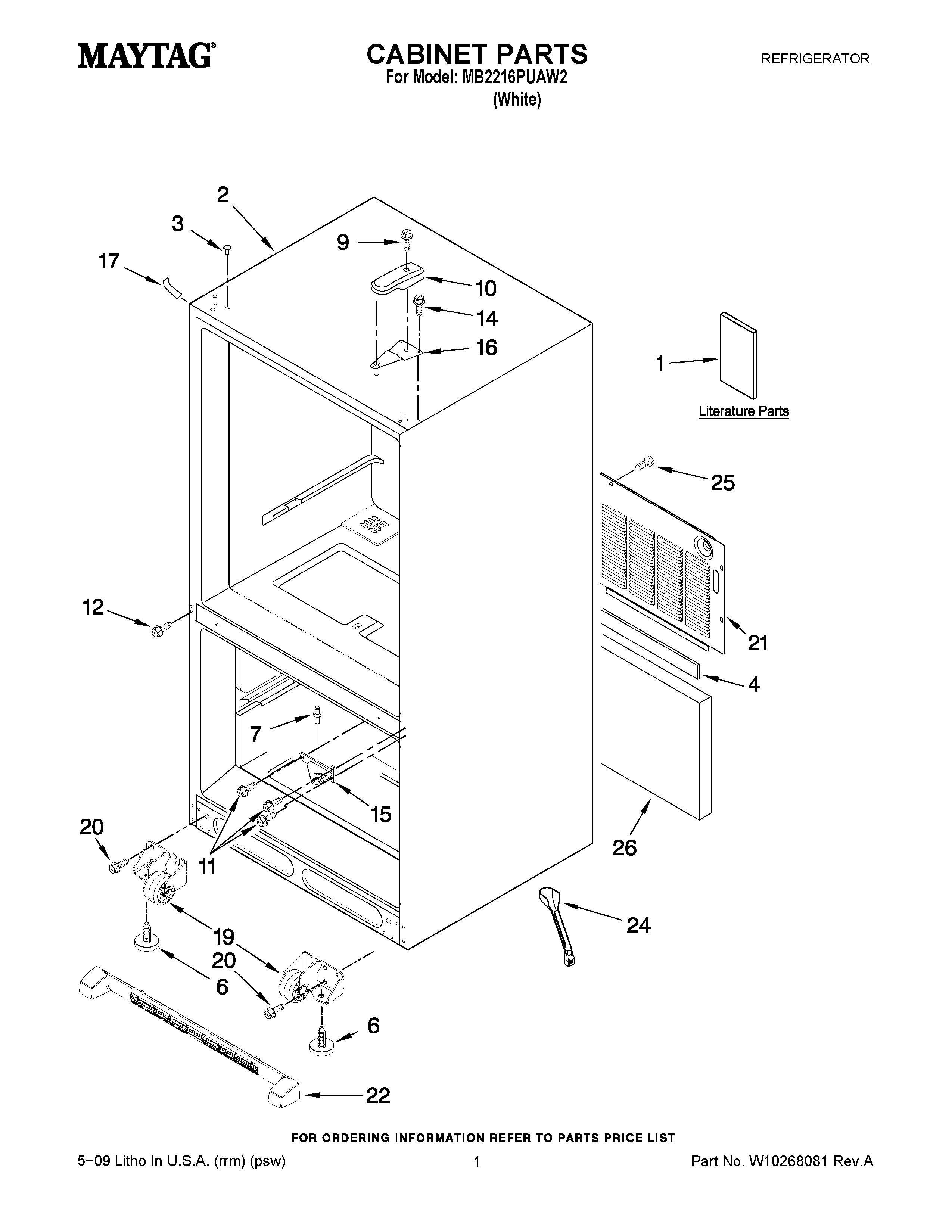

MB2216PUAW2 01 – CABINET PARTS

Products

PositionProduct
1MAY W10183257
1Owners Manual
1MAY W10238840
3MAY M0310729
4MAY B5759655
6Brake, Foot
7MAY 10351006
9MAY 12992602
10MAY 12477601W
11MAY 12990101
12Screw (8)
14SCREW (6)
15MAY 12607103WD
16Hinge, Top
17Cover, Corner (2) (White)
19ROLLER ASSEMBLY (LEFT SIDE)
19ROLLER ASSEMBLY (RIGHT SIDE)
20Screw (8)
21MAY W10210979
22MAY W10236195
24MAY W10210988
25SCREW (10)
26Insulation, Sound
